Product Details:
|
| Product Name: | Servo Control Heat Plate Plastic Soldering Equipment | Dimensions(L*W*H): | 1730*980*2200 |
|---|---|---|---|
| Hot Mould Size: | 405*340.5 | Pneaumatic Components: | SMC |
| Working Tempo: | 24S | Heating Power: | 2400W |
| Welding Area: | According To Your Products | After-sales Service Provided: | Video Technical Support,Online Support |
| High Light: | SMC Hot Plate Welding Equipment,2.4KW Hot Plate Welding Equipment,2.4KW hot plate welder |
||

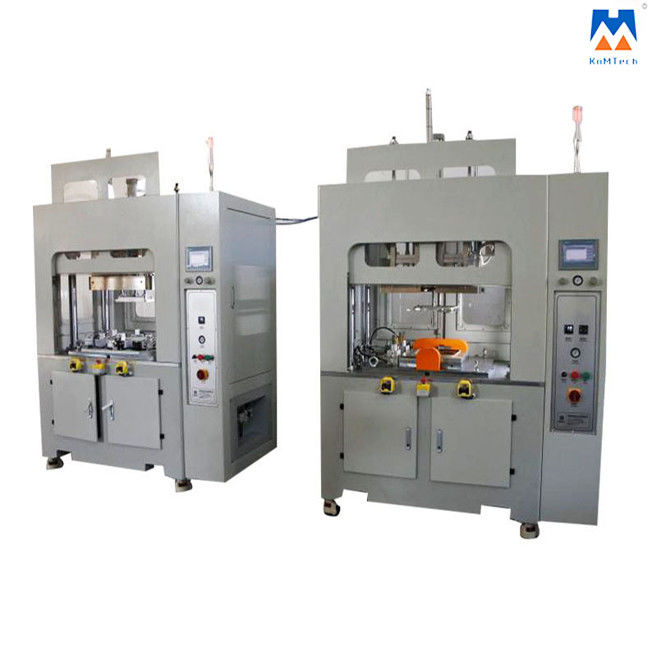

Servo Control Heat Plate Plastic Soldering Equipment for Automotive Lights Welding
| 1. Put fabric on the lower positioning mould 2. Put EPP onto the upper mould 3. Press start buttons with two hands 4. Safety curtain goes down 5. Pin cylinder go back 6. Upper mould goes down to fix EPP into the lower mould and hold for a set period 7. Hot plate goes down to heat the EPP 8. Hot plate goes up after heating for a set period 9. Wrapping mechanism starts to wrap and Wrapping device goes back to its original position 10. Upper mould goes back to its original position 11. Pin cylinder extend out 12. Safety curtain goes back to its original position 13. Take out the wrapped sun visor 14. Repeat the above operation |
| 1. Lower fixture reverses and starts, folds the sun visor 2. Pressure cylinder starts, and timing for pressurization 3. Pressure cylinder goes back to its original position 4. Reverse cylinder goes back to its original position 5. Put the wrapped sun visor into the fixture 6. Press Start buttons with both hands 7. Safety curtain goes down 8. Pin cylinder go backward 9. Hot plate goes down to heat EPP and hold for a set time 10. Hot plate goes up to its original position 11.Pin cylinder extends outwards |
Technical parameters:
| Items/Equipment | Edge wrapping machine | Folding and welding machine |
| Dimensions(L*W*H) | 1730*980*2200 | 1730*980*2200 |
| Hot mould size | 405*340.5 | 405*340.5 |
| Heating power | 2400W | 2400W |
| Pneaumatic components | SMC | SMC |
| Electrical components | Omron/Schedeider | Omron/Schedeider |
| Touch screen+PLC | Siemens | Siemens |
| Working tempo | 24S | 30s |
Features:
* 3-axis servo control, high precision, good repeatability, and the welding precision will not be affected by the fluctuation of the air pressure.
* Combined control by Siemens PLC and touch screen for quick setting and easy operation.
* Safety relay and safety curtain are world famous brand with high safety class to ensure the operator's safety to the utmost extent.
* Continuous heating system is used with high precision control of heat, and the heating tubes are heated without any interrupt, hence the service life of the heating tubes are extended.
Application:
FAQ:
1.What's your MOQ?
Usually, we don't limit a MOQ for testing, just decide the QTY by yourself.
2. How about your delivery time?
45-60 word days since order confirmation.
3. What's the warranty of your products?
One year Warranty with none human damage.
In this period factory, will responsible for repairing it for free or the factory will send the new parts to the customer instead of the broken parts for free. After warranty time, the factory will repair fix it or send the new parts at the cost price.
4. How can I get your price and catalog?
Please E-mail us or call us to give your contact information(your name, email address, company name, and website)
5. Can we agent your products in our country or city?
Of course. We are looking for a sole agent in the country who have the willing to cooperate with us for a long business term.
6. How about payment?
100%T/T in advance for small orders;50%T/T in advance as a deposit;50%T/T paid before shipment.
7. Do you provide samples? is it free or extra?
Yes, we could offer the sample and it's not free.
8. could you make it according to our special requirements?
Of course, we can do . Please tell us your idea or your application.
9. How about the quality?
We have exported to many other customers from all over the world, the feedback is good, quality ranks first in our company.
Detailed Photos:
