Product Details:
|
| Product Name: | Plastic Ultrasonic Welding Machine With Proportion Valve Technology | Frequency: | 20KHz |
|---|---|---|---|
| Max Welding Time: | 5 S | Triggering Method: | Time, Pressure, Power |
| Power: | 2500W | Max Working Stroke(mm): | Φ63*80mm±1mm |
| Air Pressure Control: | Proportional Valve | Operating Air Method: | Standard/multi-stage |
| Voltage: | AC 220V 50/60HZ | Warranty: | 1 Year |
| High Light: | Proportion Valve Ultrasonic Plastic Welder,220V 50HZ Ultrasonic Welding Machine,2500W Ultrasonic Welding Machine |
||

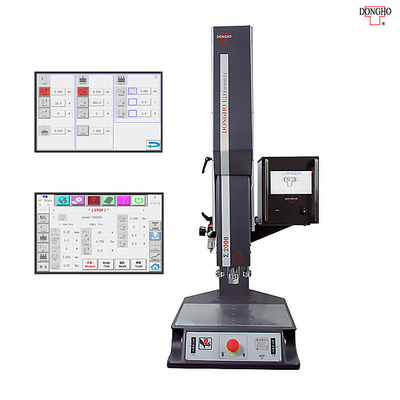

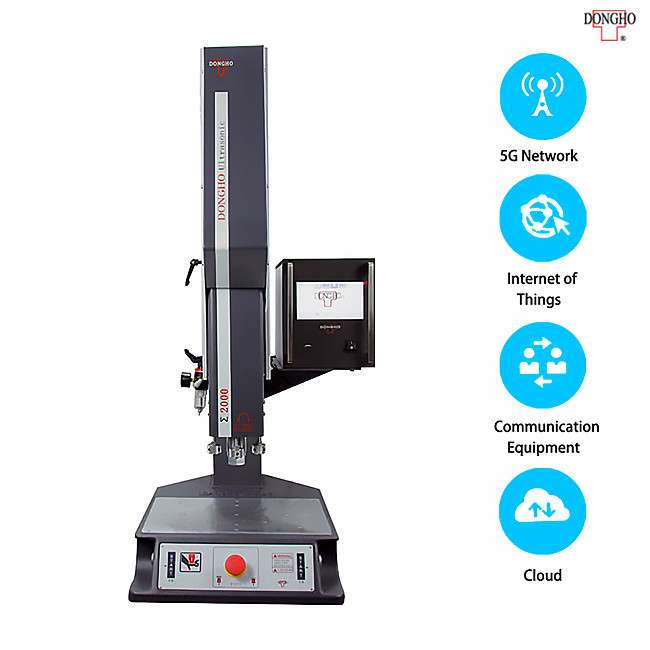

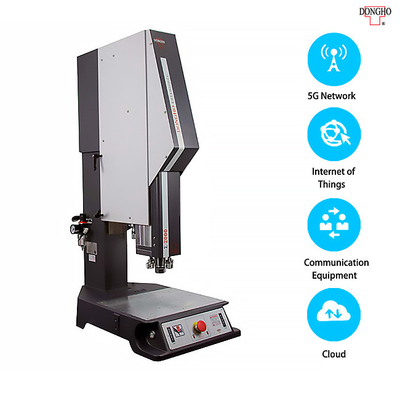

Plastic Ultrasonic Welding Machine With Proportion Valve Technology For Auto Parts Welding

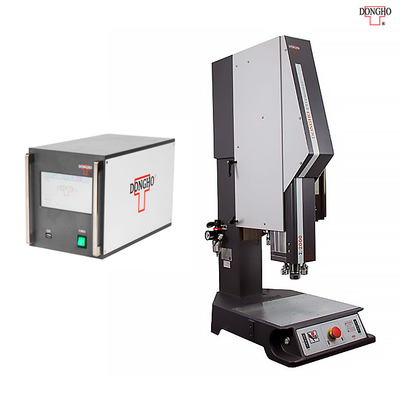

iBA series ultrasonic welders are integrated with a digital ultrasonic generator and controllers, plus a welding bench to serve as complete ultrasonic welding equipment. They are featured with multiple welding modes and future-oriented iQS operating system.
Technical parameters:
| Model | iBA-A2025e | iBA-A2030e | iBA-A3015e | iBA-A3512e | iBA-A4008e |
| Specification | |||||
| Frequency | 20KHz | 20KHz | 30KHz | 35KHz | 40KHz |
| Power | 2500W | 3000W | 1500W | 1200W | 800W |
| Triggering Method | Time, Pressure, Power | ||||
| Welding Method | Welding time/Welding energy/Peak power/Grounding detect | ||||
| Air pressure control | proportional valve | ||||
| Operating air method | Standard/multi-stage | ||||
| Amplitude control | Single-stage amplitude/stepping amplitude | ||||
| Pre-press vibration | 1) OFF, 2) pre-vibration time | ||||
| Welding stacking function | Time/Energy/Pressure | ||||
| Max Working Stroke(mm) | Φ63*80mm±1mm | Φ50*80mm±1mm | Φ40*80mm±1mm | ||
| Max Welding Time | 5 seconds | ||||
| Voltage(V) | AC220V±5% 50/60Hz | ||||
| Accessory expansion (optional) |
Noise insulation shield/ Automatic film winding device/ Auxiliary fixture *2/ Safety curtain for protection |
||||
| Dimension(L*W*H)mm | 500*750*1100mm | 470*720*950mm | |||
| Weight(kg) | 106kg | 75kg | |||
Features:
* The 6th generation iQS operating system, multi-level password protection for hierarchical authorizations
* New type electronic pressure-measuring device
* Welding parameters saving in USB, QA quality diagnosis, and control
* Digital amplitude setting and amplitude segmentation
* Clearance offset function, and double-feedback control structure
* PropControl (Proportion Valve Technology)
* UTC220 high-speed control for enhancement of track precision, real-time data application with MES system
* Fully digital and auto-tuning functions with saving function
* Built-in scanning gun port ( supporting four brands) is equipped for data tracing.
Application:
The ultrasonic welding machine is mainly used for the secondary connection of thermoplastics, compared with other traditional processes (such as adhesive, hot bonding or screw fastening, etc.), with high production efficiency, good welding quality, environmental protection, and energy-saving, and other significant advantages.
Ultrasonic plastic welding equipment is widely used in packaging, auto parts, electronics, and other industries, such as :
Automobile Industry: car lights, Car body plastic parts, car doors, car instruments, lights, mirrors, sunshades, interior parts, filters, reflective materials, reflective spike, bumper, cable, etc.
Plastic electronics: prepaid water meter, electricity meter, communication equipment, cordless phone, mobile phone accessories, mobile phone case, battery case, charger, valve-controlled seal maintenance lead-acid battery, 3-inch floppy disk, U disk, SD card, CF card, USB connector, Bluetooth; Toy stationery: folder, album, folding box, PP hollow board, pen case, ink cartridge, toner.
Medical: oral liquid bottle caps, intravenous bottle caps, sanitary products, disposable infusion filters, and plasma separation cups, ziplocked bags, etc.
Commodity: watches, kitchen utensils and appliances, mobile phone accessories, gold soft brush, daily necessities, children's products, air mattress, hangers, handle, garden supplies, kitchenware, showers, king soft brush, shower head, anti-fake bottle, cosmetic bottle, coffee pot, washing machines, air dehumidifier, electric iron, electric kettle, vacuum cleaner, speakers metal surface cover, and civil grille, etc.
