Product Details:
|
| Product Name: | 15kHz Frequency Ultrasonic Welding Machine | Frequency: | 15KHz |
|---|---|---|---|
| Power: | 3000W | Triggering Method: | Time |
| Welding Method: | Time/Energy/Power | Max Working Stroke(mm): | 80mm±1mm |
| Max Welding Time: | 6s | Voltage(V): | AC220V±5% 50/60Hz |
| High Light: | Pneumatic Ultrasonic Plastic Welding Machine,High Performance Ultrasonic Welding Machine,Digital Ultrasonic Welder |
||

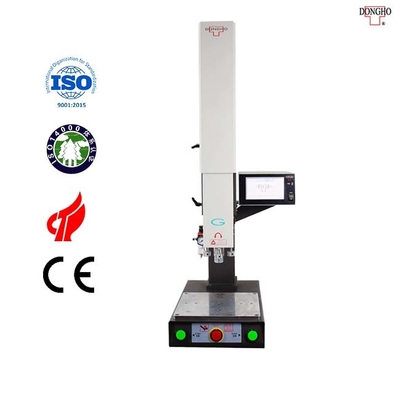

Pneumatic Plastic Ultrasonic Welding Machine With 7-inch Color Touch Screen
Technical Parameters:
| Model | GW-AS1530 | GW-AS2020 | GW-SS1530 | GW-SS2020 |
| Frequency | 15KHz | 20KHz | 15KHz | 20KHz |
| Power | 3000W | 2000W | 3000W | 2000W |
| Triggering Method | Time | Time | Time, position | Time, position |
| Welding Method | Time/Energy/Power | Time/Energy/Power | Time/Energy/Absolute Position | Time/Energy/Absolute Position |
| Max working Stroke(mm) | 80mm±1mm | |||
| Max Welding Time | 6s | |||
| Voltage(V) | AC220V±5% 50/60Hz | |||
| Accessory expansion (optional) | Noise insulation shield / Automatic film winding device/Auxiliary fixture *2/Safety curtain for protection | |||
| Dimension(L*W*H)mm | 350mm*622mm*1140mm | |||
| Weight(kg) | 96.5kg | |||

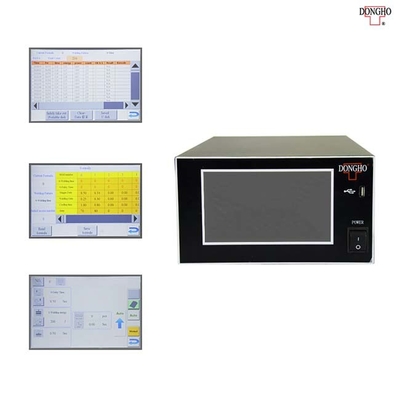

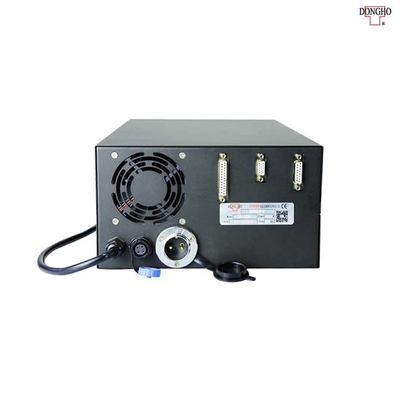

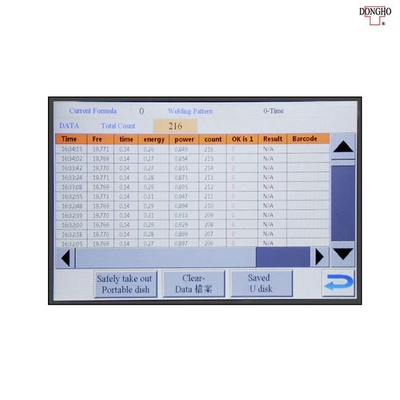

The GW series ultrasonic plastic welding machine is equipped with a digital ultrasonic generator and control system, with the sixth future-oriented generation iQS operating system, the whole series of modular design, with a variety of welding modes. The welding machine adopts the high-performance rigid square column structure of metal mold casting, and the electric motor controls the rising and falling of the frame, which is especially convenient and easy to use. The ultrasonic generator is equipped with a USB interface for welding parameter storage, quality QA diagnostic control function, automatic frequency chase function, overload protection function, fault alarm function, and so on.
What is the advantage of ultrasonic welding?
A. fast welding speed, high welding strength, good sealing;
B. replace the traditional welding/bonding process, low cost, clean, and pollution-free and will not damage the workpiece;
C. the welding process is stable, all welding parameters can be tracked and monitored by the software system, once the fault is found, it is easy to remove and maintain.
ultrasonic plastic welding applications:
The ultrasonic plastic welding machine is widely used in the automotive industry, electronic industry, medical industry, household appliances industry, non-woven clothing, office supplies, packaging industry, toy industry, etc;
Automotive industry: such as body plastic parts, car doors, car instruments, lights, mirrors, sunshades, interior parts, bumpers, cables, etc;
Plastic electronics: prepaid water meter, electricity meter, communication equipment, cordless phone, mobile phone accessories, mobile phone case, battery case, charger, valve-controlled seal maintenance lead-acid battery, 3-inch floppy disk, U disk, SD card, CF card, USB connector, Bluetooth;
Toy stationery: folder, album, folding box, PP hollow board, pen case, ink cartridge, toner;
Medical daily use: watch, kitchenware, oral liquid bottle cap, drip bottle cap;
Daily necessities: mobile phone accessories, king soft brush, daily necessities, health supplies, children's products, air mattress, hangers, handle, garden supplies, kitchenware, showers, king soft brush, shower head, anti-fake bottle, cosmetic bottle, coffee pot, washing machines, air dehumidifier, electric iron, electric kettle, vacuum cleaner, speakers metal surface cover, etc.
Detailed Photos:
welding ultrasonic plastic, ultrasonic welding plastic, ultrasonic plastic welding equipment
