Product Details:
|
| Product Name: | 2600W Ultrasonic Welding Transducer Convertor And Booster | Frequency: | 15KHz |
|---|---|---|---|
| Input Power: | 2600W | Material: | Stainless Steel |
| Usage: | Vibration Sensor | Weight: | 3.5kg |
| Color: | Sliver | After-sales Service Provided: | Video Technical Support |
| High Light: | 2600W Ultrasonic Welding Converter,3.5kg Ultrasonic Welding Converter,15KHz Ultrasonic Welding Transducer |
||

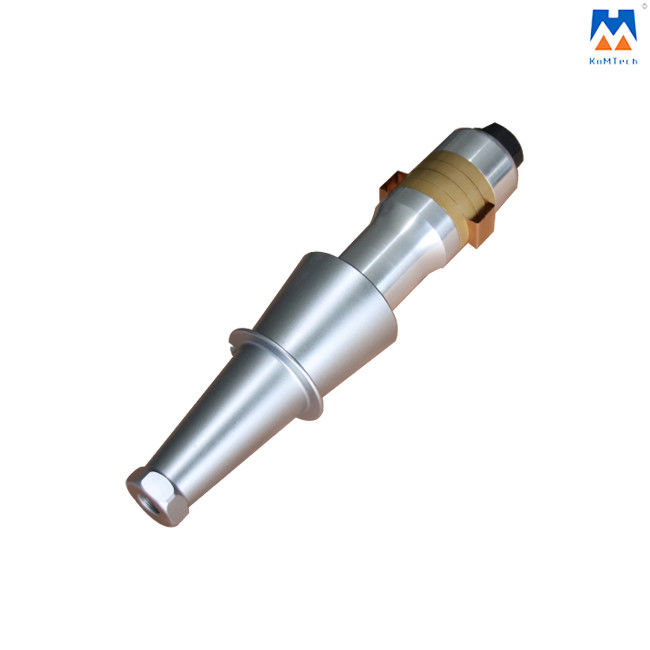

2600W Ultrasonic Welding Transducer Converter And Booster
The ultrasonic welding transducer is the core component of the whole ultrasonic system, which converts electrical energy and mechanical energy by the piezoelectric effect of piezoelectric ceramics.
This is our 15KHz 2600W transducer, which can be used for ultrasonic plastic welding.
Technical parameters:
| Product Name: | 2600W Ultrasonic Welding Transducer |
| Resonant Frequency: | 15KHz |
| Working Mode: | continuous working or pause working. |
| Humidity Of Working Environment: | relative humidity ≤85% (non-condensing) |
| Working Environment Temperature: | -10 ~ 60 ºC |
| Material: | stainless steel |
| Theory | Ultrasonic Sensor |
| Weight: | 3.5kg |
Features:
1). Long working life.
2). Precise polishing.
3). Excellent heat radiation
4). good thermal conductivity
5). large specific heat capacity
6). low-pressure drop
7). good heat-shock resisting ability
FAQ:
Q: What is the lifetime of the transducer?
A: General speaking, it depends on the quality of the transducer. All of our transducers are highly processed and adopt superior PZT ceramics. The lifetime will be more than 5years.
Q: What is the structure of PZT transducer?
A: The transducer consists of a housing, a matching layer, a piezoceramic disc transducer, a backing, an outgoing cable, and a Cymbal array receiver.
Q: What is the lifetime of the transducer?
A: General speaking, it depends on the quality of the transducer. All of our transducers are highly processed and adopt superior PZT ceramics. The lifetime will be more than 5years.
Q: What is 1/2-20UNF means?
A: It is a kind of American thread code, 1/2 means 1/2 inch of the diameter, and 20 means there are 20 threads per inch.

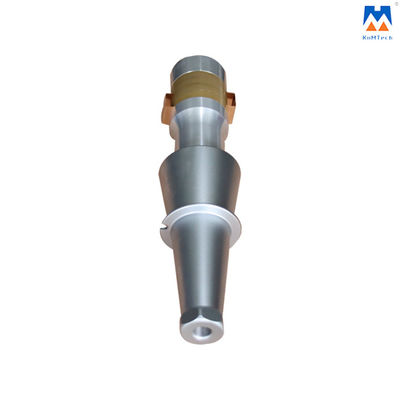

Detailed Photos:
