Product Details:
|
| Product Name: | Ultrasonic Welding Boosters For Enhancing Welding Power | Frequency: | 20KHz |
|---|---|---|---|
| Voltage: | 110V/220V/380V | Operating Temperature: | -10ºC;~+500ºC; |
| Usage: | Ultrasonic Welding Machine | After-sales Service Provided: | Video Technical Support,Online Support |
| Keyword: | Ultrasonic Welding Machine | ||
| High Light: | 1.5kg Ultrasonic Welding Booster,220V 50Hz Ultrasonic Welding Booster,1.5kg Aluminum Ultrasonic Booster |
||
Ultrasonic Welding Boosters For Enhancing Welding Power
Where is the ultrasonic booster used?
It is connected between the converter and horn.
How does the ultrasonic booster work?
To provide an amplitude change, the ultrasonic booster will have different diameters on either side of its center. A smaller diameter at the end attached to the horns means the ultrasonic amplitude increase. A greater diameter at the end attached to the horns means the ultrasonic amplitude decrease, totally, the ultrasonic booster will help enlarge the ultrasonic vibration amplitude and amplify the welding power during the vibration.
Technical parameters:
| Product Name: | 20KHz Ultrasonic Welding Booster |
| Frequency: | 20KHz |
| Material : | Aluminum /Titanium |
| Booster gain: | 1:1.5 |
| Screw size: | 2/1 |
| Operating Temperature | -10ºC;~+500ºC; |
| Usage | Ultrasonic Welding Machine |
Features:
1. High output power
2. High quality
3.15KHz-40KHz supplied, customized available

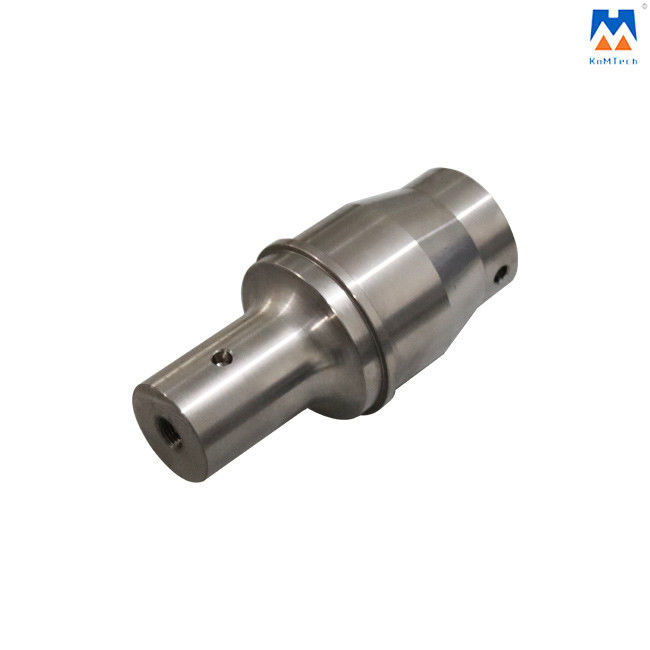

Detailed Photos:
