20KHz Ultrasonic Food Cutting System For Cake Cutting

Digital Ultrasonic Food Cutting System for Bread Cutting Cake Cutting

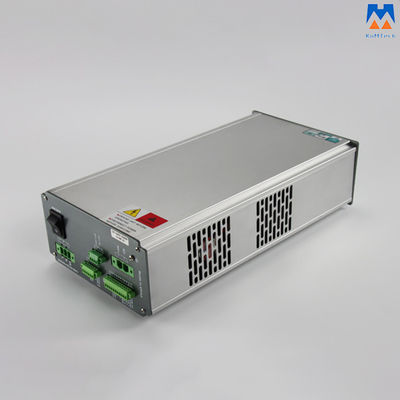

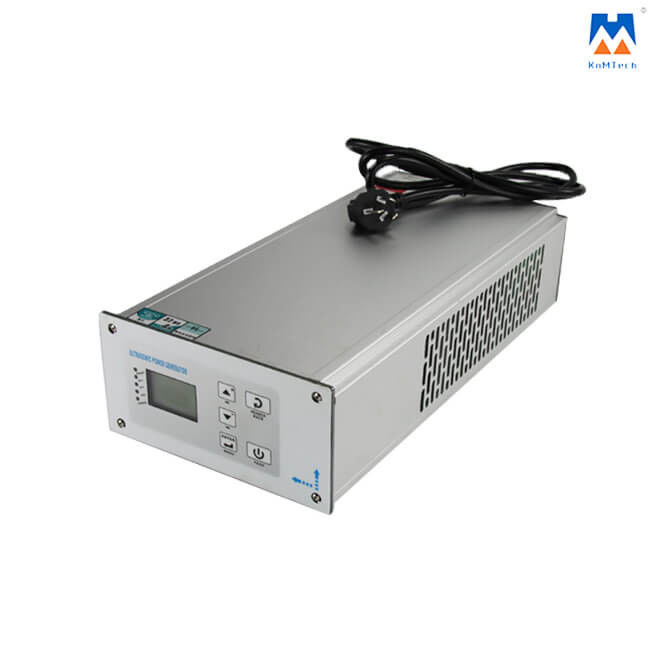

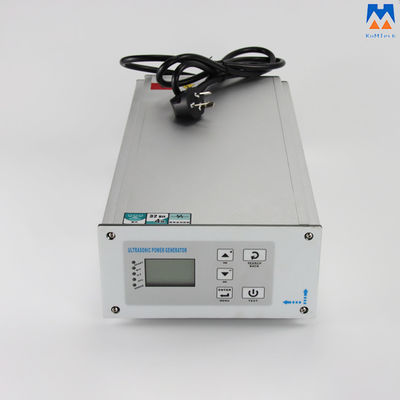

This is the digital ultrasonic generator that has many working modes which proved very stable quality in the market, which can compete for international famous brand generators, but with very competitive price.

Features:

1. Real-time frequency automatic tuning function
2. Cutting time is adjustable
3. Cooling time is adjustable
4. Welding amplitude adjustable 10%-100% (1% accuracy)
5. Amplitude compensation
6. Cutting electrode impedance analysis +protection
7. Overload protection
8. Voltage protection
9. Transducer voltage protection
10.Flat and vertical types are available

Our Advantages:

The ultrasonic vibrations significantly reduce the friction between the product and the knife sonotrode so that virtually no material sticks to the knife.
Even at very high cycle speeds, this still results in an extremely neat cut. Thanks to the reduced friction, the gateau is barely pushed out of shape at all during cutting.
The components can be integrated into a production system or a 3D robot without any difficulty. The MAG generator detects when a sonotrode is faulty and shuts the system down immediately. As a result, cutting quality is perfectly assured.

Solution:

Many products that conventional technology struggles to cut neatly and divide into portions can be cut efficiently using ultrasonics.
The following 20kHz ultrasonic components are used for this purpose:
1.A double-length sonotrode with a thin cutting area and ground knife edge.
2.A converter tightly sealed inside a stainless steel housing.
3.The components are integrated into a special system and operate intermittently.

Detailed photos:

1.Ultrasonic Welding Set

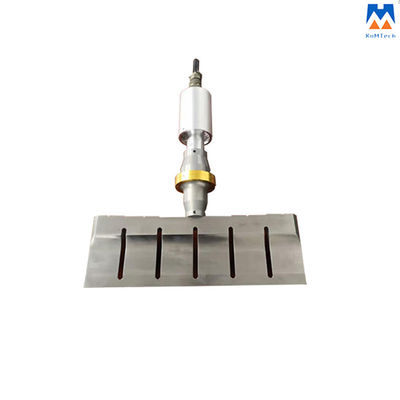

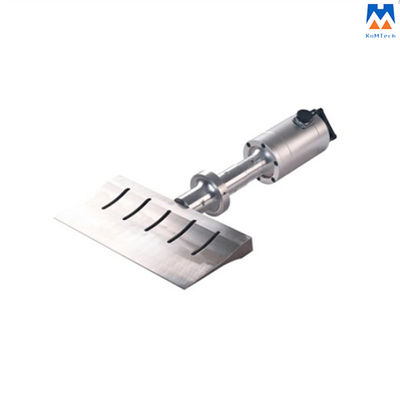

2.Cutting sonotrode

3.Cutting Effect Image
