Product Details:
|
| Product Name: | Ultrasonic Wire Metal Welding Machine | Welding frequency: | 20kHz±300Hz |
|---|---|---|---|
| Welding power: | 4kW~5.5kW | Control mode: | Timing/energy |
| Cooling type: | Air Cooling | Pressure range: | 0.05Mpa~0.5Mpa |
| Welding time range: | 0.05~9.99s | Air supply: | >0.6Mpa Dry And Clean Air |
| Operating temperature: | 10ºC~45ºC | Ethernet interface: | Communication With Host Computer |
| High Light: | 4kW Ultrasonic Metal Welding Machine,20kHz Ultrasonic Metal Welding Machine,20kHz Ultrasonic Metal Welder |
||

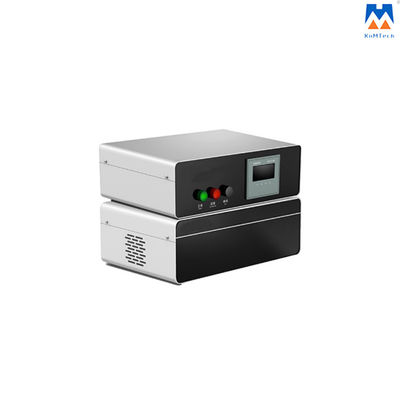

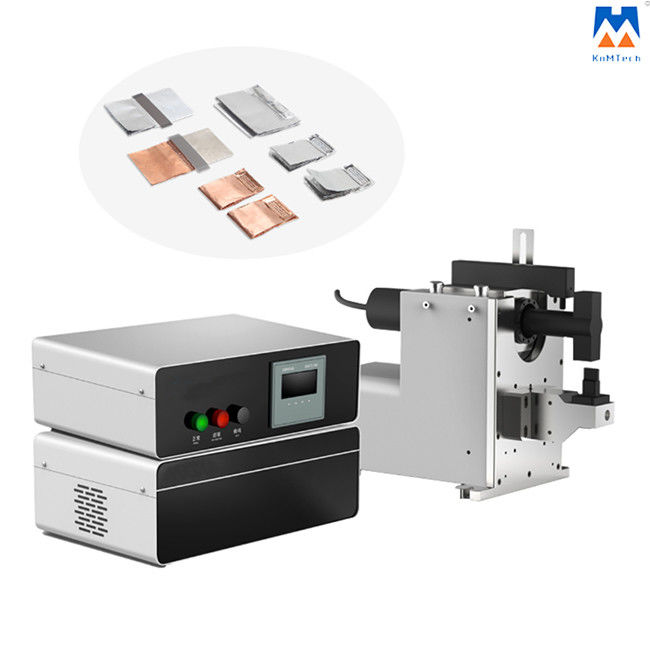

Ultrasonic Wire and Metal Welding & Splicing Machine
Imported ultrasonic technology from Germany, original imported ultrasonic system (including generator, transducer), stable welding performance, excellent consistency. It is used by many well-known battery manufacturers for the final welding of new energy power battery tabs. It can also be used in welding fields such as PACK welding, flexible connection sheets, solar panels, wire terminals, IGBT power modules, transformers, capacitors, connectors, heat sinks, copper tube sealing, battery coils, etc.
Technical parameters:
| Item | 20KHz Ultrasonic Metal Welder |
| Model | KM-2ES-SWS9710, KM-2ES-SWS9810 |
| Welding frequency | 20kHz±300Hz |
| Welding power | 4kW~5.5kW |
| Control mode | Timing/energy |
| Amplitude adjustment range | 50%~100% |
| Cooling type | air cooling |
| Pressure range | 0.05Mpa~0.5Mpa |
| Welding time range | 0.05~9.99s |
| Air supply | >0.6Mpa dry and clean air |
| Power supply | Three-phase, five lines 380V 50/60Hz |
| Operating temperature | 10ºC~45ºC |
| Operating humidity | 10%~85% RH |
| RS232 communication interface | DB9 interfaces, communication with host computer |
| Ethernet interface | Communication with host computer |
Features:
1. The ascending and descending speeds can be precisely controlled and adjusted.
2. Accurate positioning of upper and lower positions of the welding mechanism.
3. When the voltage fluctuates, the ultrasonic generator can automatically compensate the output voltage value to ensure stable amplitude output of the welding horn section.
4. The automatic cooling device can reduce the accumulation of heat when the equipment is operated at high speed.
5. Precise energy control method can ensure the stability of each welding and reduce the influence of external factors.
6. Unique ultrasonic welding unit design can maximize the conversion of ultrasonic energy to the welded product.
7. Available with multiple optional models, optional welding quality monitoring system.

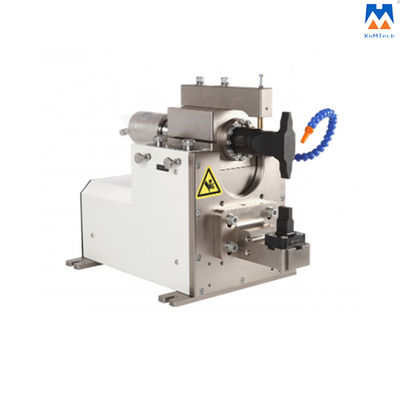

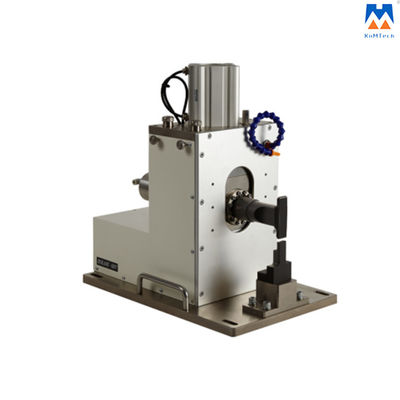

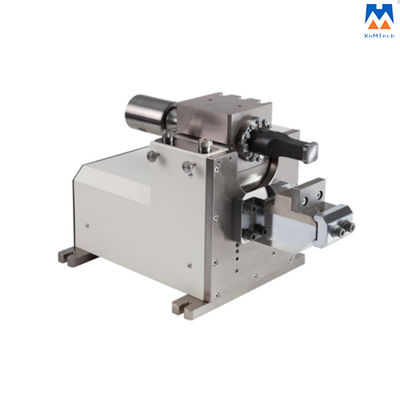

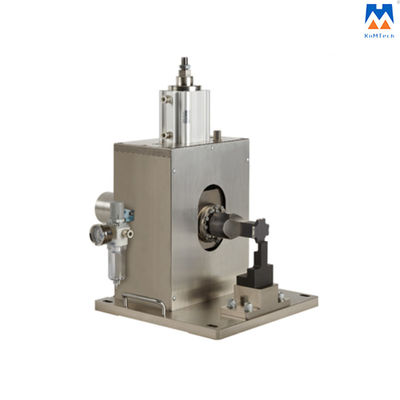

Ultrasonic metal welding frame
Technical parameters:
| Model | 2MF-5 | 2MF-6 | 2MF-8 |
| Adjustable range of pressing force(N) | 0-4290 | 0-4710 | 0-1870 |
| Stroke adjustment(mm) | 0-50 | 0-60 | 40-50 |
| Shape | Cylinder on the down | Cylinder on the up | Cylinder on the up |
| Size(mm) | 540*320*350 | 510*320*520 | 450*320*550 |
| Maximum pressure is required, with 0.6MPa air pressure. | |||
The welding frame Features:
1. Adopt a large diameter air cylinder to ensure enough pressing force during welding, and the size of pressing force can be adjusted
2. The welding head can be operated in a wide range with adjustable stroke
3. It adopts the speed regulating valve, the welding head rise and fall speed can be adjusted
4. Adopt a self-lubricating oil-free bushing guide mechanism, which can make the welding clip move smoothly
5. It adopts a double slide rail guiding mechanism that can make the welding head smooth
6. It sets aside additional sensor for detecting the origin of the welding head (more suitable for automatic line)
7. The battery fixture installation hole position is reserved to facilitate the battery welding positioning
8. Manual welding machine is designed with air-defense step detection sensor, safer
Application:
Batteries, Auto splice welding, Formation of electric wire end, Welding for electric wires, transformers, capacitors, connectors, radiators, copper tube seals, battery coils, etc.
