Product Details:
|
| Product Name: | 15Khz Ultrasonic Welding Generator | Working Frequency: | 15KHz |
|---|---|---|---|
| Power: | 2600W | Weight: | 14kg |
| Voltage: | 220V+-10% | Application: | Plastic Welding ABS,PVC |
| After-sales Service Provided: | Online Support,Video Technical Support | Warranty: | 1 Year |
| High Light: | ABS Ultrasonic Welding Generator,PVC Ultrasonic Welding Generator,15KHz Ultrasonic Weld Generator |
||

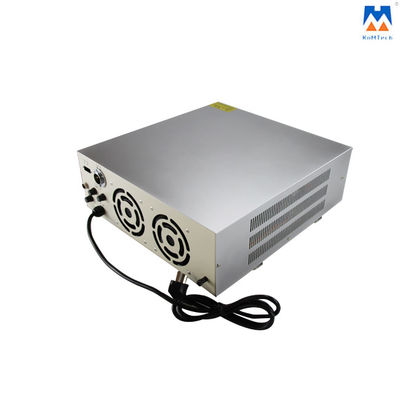

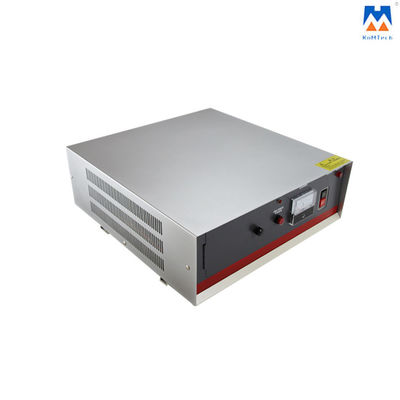

15Khz 2600W Ultrasonic Welding Generator Ultrasonic Power Supply For Plastic Welding
The generator box has been used on the market for 20 years, feedback from customers is very good, it uses the analog circuit and is with a low failure rate and stable quality.
The inner parts of the generator box can be removed, when some part is broken, you can replace it with a new one to make it work normally, the maintenance is very convenient.
Advantages of ultrasonic welding: no solvents, eco-friendly, high-speed welding, good welding effect in waterproof, airtight, appearance.
Technical parameters:
| Product Name | 15KHz Ultrasonic Welder Generator |

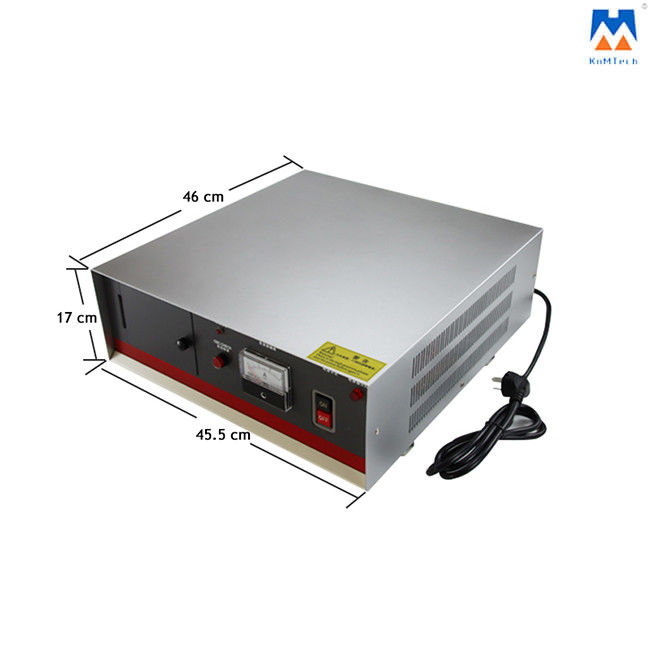

| Dimension | L 455mm×W460mm×H170mm |
| Net weight Of Main Body | 14 Kg |
| Frequency Range | 14.40-15.20kHz |
| Output Power | 1000W-2600W |
| Voltage | 220V+-10% |
| Welding Mode | time |
| Protection | Welding electrode impedance analysis +protection |
| Voltage protection | |
| Transducer voltage protection | |
| Welding Time | 0.00s-9.99s |
| Working Frequency (options) | 15KHz |
| Welding Amplitude | adjustable 10%-100% (1% accuracy) |
| Air source | purified air with a particle diameter of less than 5μm, 7kgf/cm2 |
Features:
1.failure rate ≤ 1%
2.Easy to install and simple maintenance
3.Manual frequency tracking
4.With serial circuit
Application:
| Application Industry | Application Products |
| Automotive: | Auto and motorcycle plastic parts,battery, glove box, Plastic fuel tank, Intake manifold, Plastic muffler, Expansion Tank, front corner lamp, rear tail light, instrument, reflectors, automotive manual welding jacket, the car door welded baffle welding, automobile, car mats welding, automotive bumper repair welding, cotton insulation doors, seat wipers, engine cover, radiator cap spot, etc |
| Electronics: | recording, audio tape boxes and core wheel, disk enclosure, the board of mobile phone batteries and rectifier transformers, switches and sockets, remote control, electronic swatter, pseudo-imitation caps, etc |
| Home appliances: | Balance ring, electronic clock, electric trumpeter hair dryer, steam iron water tank, electric kettle air-Hsiang, computer, etc |
| Toy: | plastic toys, water guns, aquatic life video game, children dolls, plastic gifts, etc |
| Packaging: | Plastic pallet, Corrugated tray, hollow crate welding, zip lock welded, etc |
| Medical: | Surgical Instruments,Testing Equipment,filters,I-V units,insulated trays..etc. |
FAQ:
1. How about your delivery time?
Usually we have some stock for trial or small orders, so just deliver them within 7 days, while, 15-25 days for large orders and customized production lines.1-2 units we could send by EXPRESS(DHL,UPS,FEDEX,TNT,EMS),heavy weight more than 50kg, we suggest to use sea freight LCL or by air
2. What's the warranty of your ultrasonic welder generators?
One Year Warranty with no human damage.
In this period factory will be responsible for repairing it for free or the factory will send the new parts to the customer instead of the broken parts for free. After warranty time, the factory will repair it or send the new parts at the cost price.
3. How about the quality of the ultrasonic welding generators?
We have exported our ultrasonic welder generators to many other customers from all over the world, the feedback is good, quality ranks first in our company.
For more details about our ultrasonic generators, welcome to click the catalog below:
Catalog of KnmTech Ultrasonic Generators.pdf
