Product Details:
|
| Product Name: | Ultrasonic Welding Booster | Frequency: | 20KHz |
|---|---|---|---|
| Voltage: | AC 220V, 50/60Hz | Welding Area: | Depend |
| Weight: | 1kg | Material: | Titanium |
| Application: | Couple With Ultrasonic Welding Transducer For Increasing The Amplitude | ||
| Highlight: | Amplitude Increasing Ultrasonic Welding Booster,Ultrasonic Welding Booster 20kHz,Amplitude Increasing Ultrasonic Booster |
||
20kHz Ultrasonic Welding Booster
As an important part of the ultrasonic welding system, ultrasonic boosters are mainly used for energy transfer and amplification in ultrasonic welding. The energy transmitted to the welding surface and the strength of the weld obtained by welding have a direct impact. The efficiency of the ultrasonic energy transfer from the transducer and horn depends not only on the design of the booster but also on the booster's material. The ultrasonic boosters have different materials, such as aluminum alloy, low carbon steel, stainless steel, and titanium alloy. The strength of the weld obtained by the titanium alloy booster is the highest, followed by low carbon steel, aluminum alloy, and stainless steel. Our ultrasonic welding booster is available in various designs, shapes, and specifications as per the requirements of the clients.
Technical parameters:
| Product Name: | Ultrasonic Welding Booster |
| Material : | Aluminum /Titanium |
| Frequency: | 20kHz |
| Booster gain: | 1:1, 1:1.5, 1:2, 1:2.5 and 1:3.0 |
| Screw size: | 1/2-20 |
| Power Supply | AC 220V 50Hz |
Features:
1. Optimum strength
2. High efficiency
3. Precisely engineered
4. 15KHz-40KHz supplied, customized available
FAQ:
1. What's your MOQ?
Usually, we don't limit a MOQ for testing, just decide the QTY by yourself.
2. How about your delivery time?
Usually, we have some stock for trial or small orders, so just deliver them within 7 days, while, 15-25 days for large orders and customized production line.
1-2 units we could send by EXPRESS(DHL,UPS,FEDEX,TNT,EMS), heavyweight more than 50kg, we suggest to use sea freight LCL or by air
3. What's the warranty of your ultrasonic welding booster?
Three months Warranty with no human damage.
In this period factory will be responsible for repairing it for free or the factory will send the new parts to the customer instead of the broken parts for free. After the warranty time, the factory will repair it or send the new parts at the cost price.

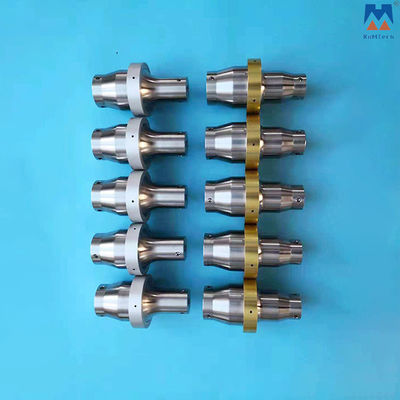

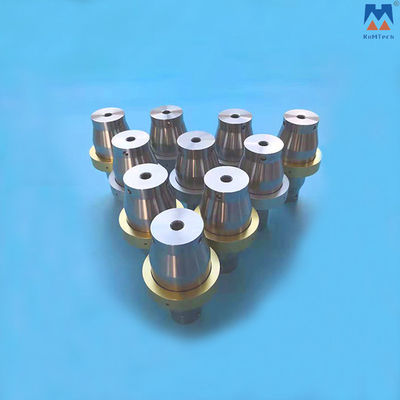

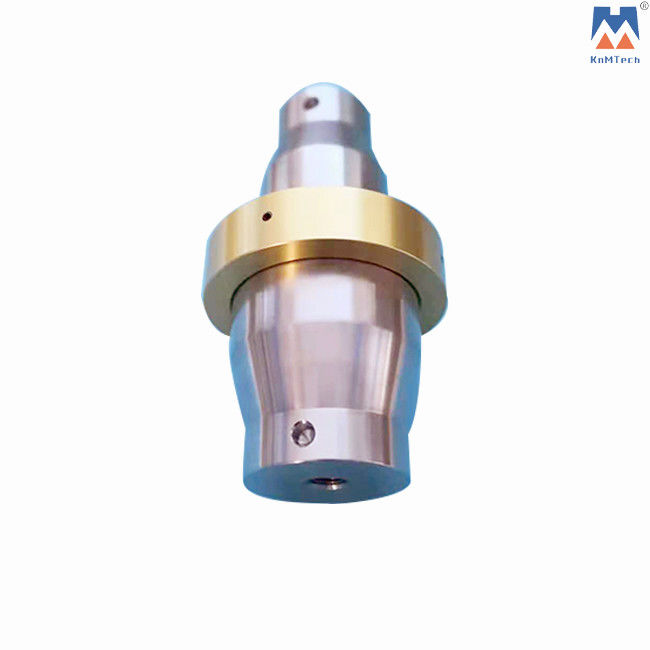

Detailed Photos:
