Product Details:
|
| Product Name: | 20kHz Welding Booster | Frequency: | 20kHz |
|---|---|---|---|
| Booster Gain: | 1:1.5 | Weight: | 2kg |
| Material: | Titanium | Usage: | Ultrasonic Welding |
| High Light: | Ultrasound Amplitude Enlarging Ultrasonic Booster,1:1.5 Ultrasonic Booster,20kHz Titanium Ultrasonic Welding Booster |
||
The main ultrasonic unit consists of a converter (piezoelectric transducer), booster, and sonotrode(horn). All three elements of the stack are specifically tuned to resonate at the same exact ultrasonic frequency( typically 15,20,30,35 or 40KHz).
• Transducer/Converter: converters the electrical signal into a mechanical vibration
• Booster: modifies the amplitude of the vibration. It is also used in standard systems to clamp the stack in the press.
• Sonotrode/horn: applies the mechanical vibration to the welded parts.
To provide an amplitude change, the booster will have different diameters on either side of its center or nodal point. A smaller
diameter at the end attached to the horns means that the boosters horn is amplitude increasing. A greater diameter at the end
attached to the horn means the booster horn is amplitude decreasing.
Technical parameters:
| Product Name: | Ultrasonic Welding Booster |
| Frequency: | 20KHz |
| Material : | Aluminum /Titanium |
| Booster gain: | 1:1.5 |
| Screw size: | 2/1 |
| Usage | Ultrasonic Welding Machine |
Features:
1. High output power
2. High quality
3.15KHz-40KHz supplied, customized available
4. 300W/600W/900W /1500W/2000W/2600W/3200W/4200W supplied
Booster gain:
1.0:1
1.5:1
1.75:1
2.0:1
2.5:1
3:1

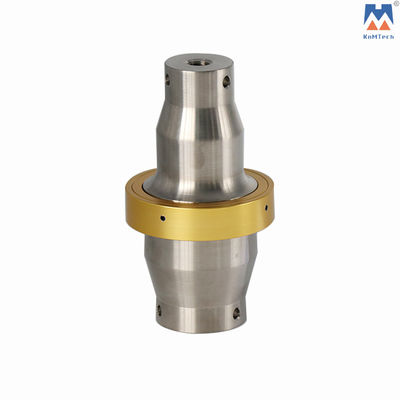

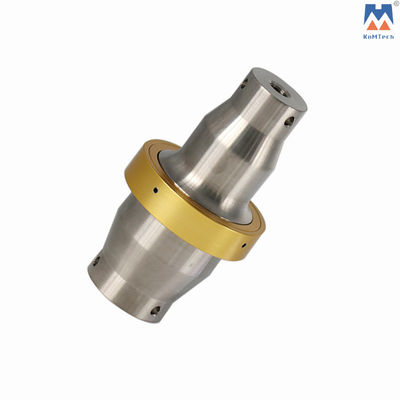

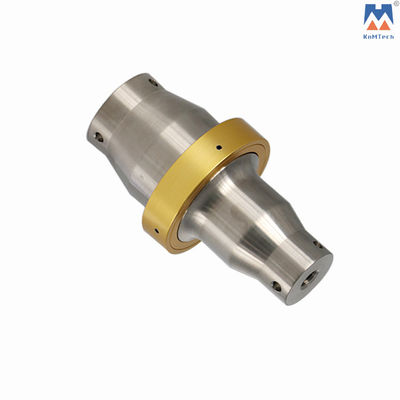

Detailed Photos:
