Product Details:
|
| Porduct Name: | 35kHz Ultrasonic Welding Booster | Frequency: | 35kHz |
|---|---|---|---|
| Booster Gain: | 1:1.5 | Weight: | 1kg |
| Voltage: | AC 220V 50/60HZ | Material: | Aluminum |
| Keyword: | Booster | Usage: | Ultrasonic Welding Machine |
| High Light: | 35kHz Ultarsonic Transducer Ultrasonic Booster,60HZ Ultrasonic Booster,50HZ Ultrasonic Welding Booster |
||
The booster is mounted between the converter and horn, and the converter and the booster are called the transducer, The converter would convert electrical energy into mechanical vibration energy, while the booster would play an important role in changing the amplitude passed between the transducer and the horn. The booster can be made out of different materials per our customers' requirements.
A smaller diameter at the end attached to the horns means that the boosters are for amplitude increasing. A bigger diameter at the end attached to the horn means the booster is for amplitude decreasing.
Technical parameters:
| Product Name: | Ultrasonic Welding Booster |
| Frequency: | 35KHz |
| Material : | Aluminum |
| Booster gain: | 1:1.5 |
| Screw size: | 2/1 |
| Usage | Ultrasonic Welding Machine |
Features:
1. High output power
2. High quality
3.15KHz-40KHz supplied, customized available
4. 300W/600W/900W /1500W/2000W/2600W/3200W/4200W supplied
Booster gain:
1.0:1
1.5:1
1.75:1
2.0:1
2.5:1
3:1

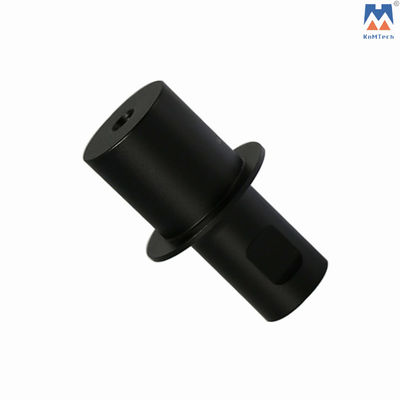

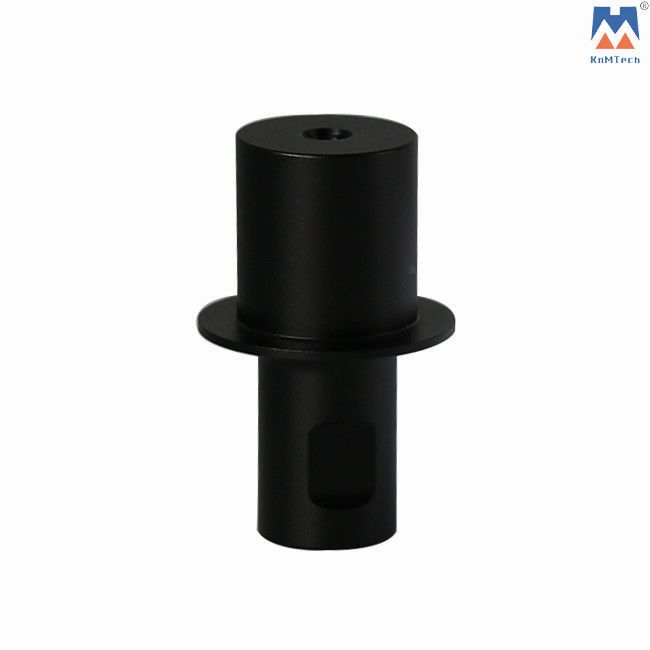

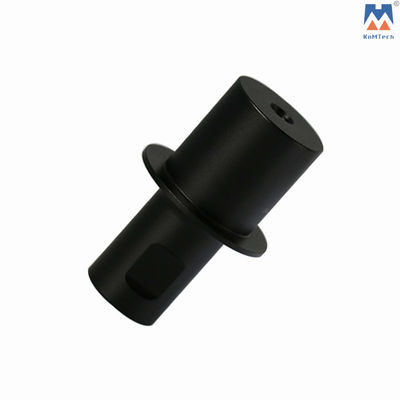

Detailed Photos:
