1:1.75 Booster Gain Ultrasonic Welding Booster For 35kHz Ultrasonic Welding Transducer

1:1.75 Booster Gain Ultrasonic Welding Booster For 35kHz Ultrasonic Welding Transducer
1:1.75 Booster Gain Ultrasonic Welding Booster For 35kHz Ultrasonic Welding Transducer 1:1.75 Booster Gain Ultrasonic Welding Booster For 35kHz Ultrasonic Welding Transducer 1:1.75 Booster Gain Ultrasonic Welding Booster For 35kHz Ultrasonic Welding Transducer

Large Image :  1:1.75 Booster Gain Ultrasonic Welding Booster For 35kHz Ultrasonic Welding Transducer

Product Details:
Place of Origin: China
Brand Name: KnMTech
Model Number: KM-B35
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: foam/paper/wood carton
Delivery Time: 3-7 work days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 1000 sets per month

1:1.75 Booster Gain Ultrasonic Welding Booster For 35kHz Ultrasonic Welding Transducer

Description
Product Name: 35kHz Ultrasonic Welding Booster Frequency: 35kHz
Booster Gain: 1:1.75 Weight: 1.3kg
Voltage: AC 220V 50/60HZ Usage: Non-woven Fabric Welding,Ultrasonic Plasitc Welder For ABS PP PE PC Material,ultrasonic Welding
High Light:

35kHz Ultrasonic Welding Booster

,

Titanium Ultrasonic Welding Booster

,

Ultrasonic Welding Transducer Ultrasonic Booster

The 35kHz Ultrasonic Welding Booster

The ultrasonic converter is a key part of the ultrasonic welding system, which will convert electrical energy into mechanical energy so that two plastic parts can vibrate in high frequency and melt on the surface, which will be welded after applying some press force on both parts. The ultrasonic booster is used to amplify the amplitude of welding.

What is a booster?

A booster is a one-half-wave length long resonant section made of aluminum or titanium. It modifies the amplitude of vibration applied to the horn.



How does it work?

To provide an amplitude change, the booster will have different diameters on either side of its center or nodal point. A smaller diameter at the end attached to the horns means that the boosters are for amplitude increasing. A bigger diameter at the end attached to the horn means the booster is for amplitude decreasing. Clamped at their nodal point, the booster provides rigid support for the converter/horn assembly.



Technical parameters:



Product Name: Ultrasonic Welding Booster
Frequency: 35KHz
Material : Titanium
Booster gain: 1:1.75
Screw size: 2/1
Usage Ultrasonic Welding Machine



Features:

1. High output power
2. High quality
3.15KHz-40KHz supplied, customized available

4. 300W/600W/900W /1500W/2000W/2600W/3200W/4200W supplied



Booster gain:
1.0:1
1.5:1
1.75:1
2.0:1
2.5:1

3:1

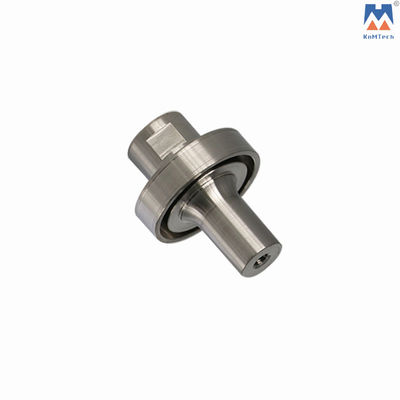

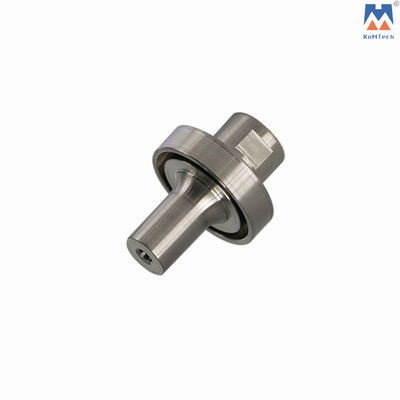

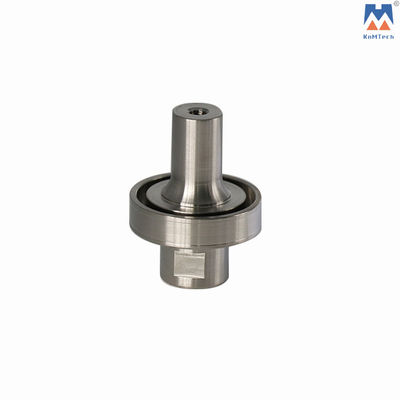

Detailed Photos:

1:1.75 Booster Gain Ultrasonic Welding Booster For 35kHz Ultrasonic Welding Transducer 0
1:1.75 Booster Gain Ultrasonic Welding Booster For 35kHz Ultrasonic Welding Transducer 1
