Product Details:
|
| Product Name: | Ultrasonic Welding Machine With Electronic Ruler | Frequency: | 15KHz |
|---|---|---|---|
| Power: | 4500W | Triggering Method: | Time/Position |
| Frequency Adjustment: | IGBT Automatic Frequency Chasing | Z Traveling Precision(mm): | ±0.02mm Accuracy |
| Cylinder Stroke (mm): | 100mm±1mm | Max Welding Time(S): | ≤6S |
| Welding Method: | Time/Energy/absolute Position | Amplitude Control: | Single Stage Amplitude |
| High Light: | ultrasonic welding large plastic parts,4500W ultrasonic welding machine,15kHz ultrasonic plastic welder |
||

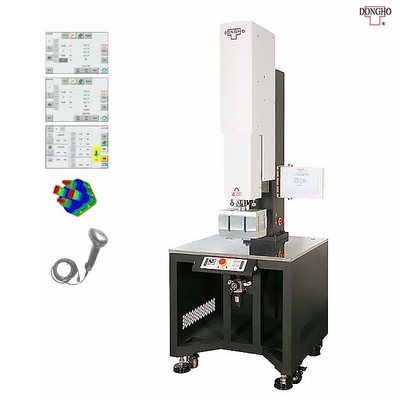

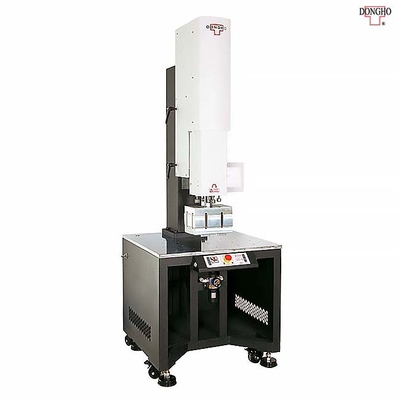

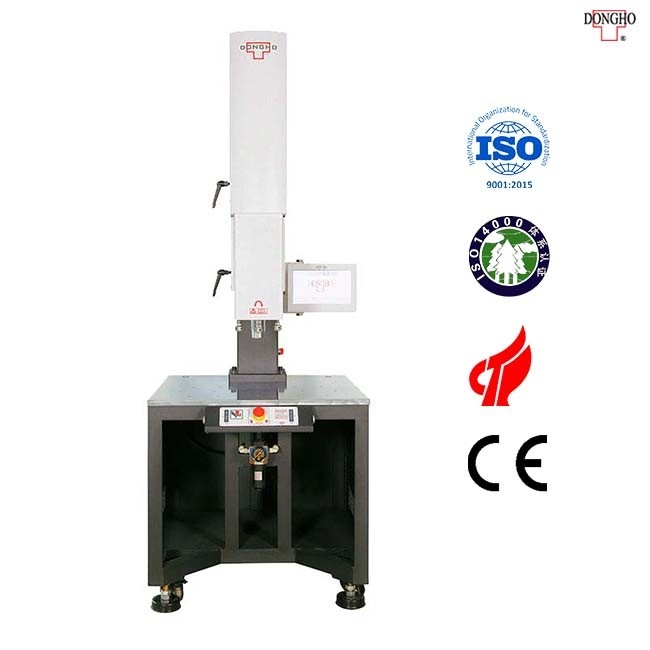

Digital Ultrasonic Welding Machine With Electronic Ruler For Big Plastic Parts
GEL-S series highly efficient ultrasonic welding machine has many more performance and multi-purpose high-quality innovation, DONGHO embedded system, the sixth generation iQS operating system for the future, with a variety of welding mode, flexible and varied to meet the needs of various products, powerful, can be up to 5 kW welding power, suitable for welding large plastic parts, the use of plastic, Cooperate with scanning gun to collect workpiece bar code, complete control products.
Technical Parameters:
| Model | GEL-S S1545 |
| Frequency | 15KHz |
| Power | 4500W |
| Triggering Method | Time/position |
| Welding Method | Time/Energy/absolute position |
| Max Working Stroke(mm) | 100mm±1mm |
| Max Welding Time | ≤6S |
| Amplitude control | Single-stage amplitude |
| Quality control | Time/Energy/Power/Absolute position |
| Output interface | 10" color touch screen |
| Voltage(V) | AC220V±5% 50/60Hz |
| Z traveling precision(mm) | ±0.02mm accuracy |
| Max. air pressure(mpa) | 1mpa |
| Air source | Compressed air must be clean, dry, and free of lubricant |
| Dimension(L*W*H)mm | 750*1000*1920 |
| Weight(kg) | 300KG |
Features:
* The 6th generation iQS operating system, smart & frequency auto-tuning generator;
* Diversified welding mode, flexible to meet more requirements of products;
* Support the data acquisition by barcode scanning gun;
* Built-in overload protection system to guarantee the safe running of the machine;
* High-rigidity & solid anti-torsional design, modular structure, easy to expand;
* Equipped with the auxiliary tools such as PLC, optical grating, coil device, sound insulation cover, etc., along with quality monitoring function;
* Welding record function to store welding frequency, welding time, welding energy, absolute position, etc. so as to facilitate the data analysis and management of the welding situation of plastic workpieces.
Application:
Ultrasonic plastic welding machine in the welding of plastic products, neither add any adhesive, filler, or solvent nor consume a lot of heat, has the advantages of simple operation, fast welding speed, high welding strength, high production efficiency. Therefore, ultrasonic welding technology is more and more widely used.
1. Auto parts Industry:
Airbag, instrument panel, sunshade, vehicle drinking machine, taillight, expansion water tank, window motor, built-in audio, floor mat, door panel, clutch fork, spare tire box, bumper, filter, front baffle, brake oil cup, manufacturing plastic parts of the body, Car door, car instrument, lamp mirror, reflective material, cable, radiator, brake fluid tank, water tank, fuel tank, exhaust purifier, etc.
2. Home appliance industry:
With the rapid development of the home appliance industry, constantly improve, to the requirement of conventional plastic welding weldable material more and more in household appliances, such as water dispenser plastic shell, TV, radio recorder transparent panels, remote controller, portable solar chimney, juicer plastic frame, vacuum components, such as washing machine to take off the sink need strong, sealing and beautiful plastic welding technology.
3. Electronic and electrical industry:
The electronic equipment and accessories of ultrasonic welding technology include battery case, charger, computer, charger, mobile phone case, setting device, switch socket, prepaid water meter, electricity meter, communication equipment, cordless telephone, etc.
4. Packaging and processing industry:
In the packaging processing industry, many use ultrasonic welding technology such as hose sealing special packaging belt, air filter bag, water treatment POLYPROPYLENE filter bag, non-woven handbag, corrugated container sealing welding, instant noodles paper bowl, dairy packaging box, and so on.
5. Consumables communication Industry:
Cartridge, telephone, mobile phone charger, power adapter, communication equipment nut embedded, consumable plastic parts, toner drum, etc.
