Product Details:
|
Product Name: | 5000W*2 Ultrasonic Welding Machine | Ultrasoinc Power: | 5000*2W |
---|---|---|---|
Ultrasonic Frequency: | 15kHz | Main Voltage: | AC220-240V,50/60Hz |
Triggering Method: | Time | Welding Method: | Time/Energy |
Max Working Stroke(mm): | Φ100*100mm±1mm | Max Welding Time: | 5s |
Air Pressure: | ≥0.05Mpa ≤0.65Mpa | Cooling System: | 12x12 Cooling Fan |
Operating Air Method: | Standard | Dimension(L*W*H)mm: | 1200*1150*1950mm |
Highlight: | 5000W ultrasonic plastic welder,ultrasonic welding plastic sheet,15kHz Ultrasonic Welding Machine |

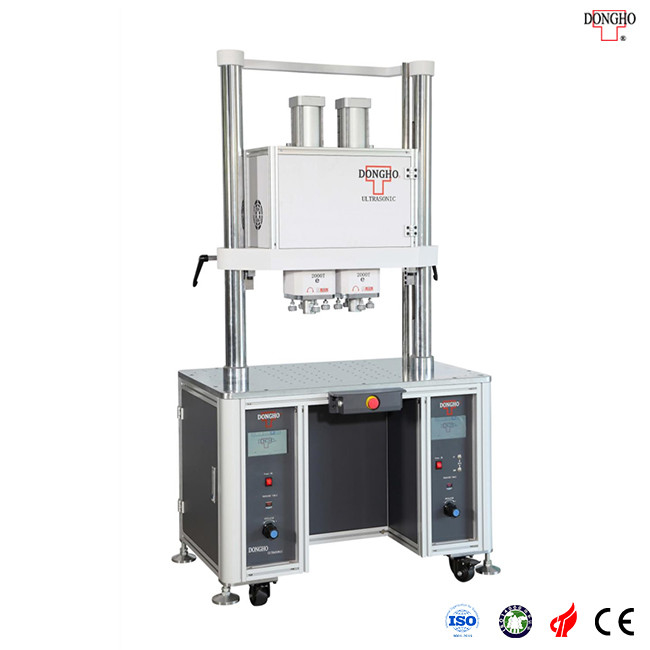

5000W*2 High Frequency Welding Machine Ultrasonic Welding Machine For Welding Plastic
5000W*2 High-Frequency Welding Machine Ultrasonic Welding Machine For Welding Plastic
Description:
iALB series ultrasonic welding machine can weld thermoplastic materials for plastic processing, also can separate and cut textiles, plastic products, whether large plastic parts or large application items, can use iALB to complete processing. The iALB series is available in two welding modes: time and energy. Different welding modes enable the use of ultrasonic to optimize the welding process of the workpiece, thus improving industrial efficiency.
Technical parameters:
Model | iALB S1550 |
Frequency accuracy | 14.70~15.20KHz |
Power | 5000W*2 |
Triggering Method | Time |
Welding Method | Time/Energy |
Max working Stroke(mm) | Φ100*100mm±1mm |
Max Welding Time | 5s |
Voltage(V) | AC220V±5% 50/60Hz |
Air pressure | ≥0.05Mpa ≤0.65Mpa |
Cooling system | 12x12 cooling fan |
Operating air method | Standard |
Dimension(L*W*H)mm | 1200*1150*1950mm |
Weight(kg) | 405kg |
More models are available:
Model | iAL S1550 | iALB S1550 |
Specification | ||
Frequency | 15KHz | 15KHz |
Power | 5000W | 5000W*2 |
Max working Stroke(mm) | Φ100*100mm±1mm | |
Max Welding Time | 5s | |
Welding Method | time,energy | |
Voltage(V) | AC220V±5% 50/60Hz | |
Dimension(L*W*H)mm | 1200*1150*1950mm | |
Weight(kg) | 350kg | 405kg |
Application:
iAL series ultrasonic welding machine is a strong and durable ultrasonic welding system, suitable for the production of large plastic workpieces, applicable to the medical industry, automotive industry, commercial or consumer electronics market, used for riveting, cutting, and sealing of thermoplastic materials.
Our Advantages:
1. More than 25 years ultrasonic welding machine manufacture experience;
2. Our company has passed ISO9001 quality management system, ISO1400 environmental management system, CE certification;
3. Technical staffs have more than 25-year experience in ultrasonic devices research, development, and manufacture;
4. First-class sales team, providing customers with valuable products and services;
5. High-quality promise, At least one-year Warranty for machines and 3 months warranty for tooling;
6. Professional after-sales service team, lifelong technical support.
Quality Control:
1. After the customer confirms the demand, we will strictly control each link of the product production;
2. At the same time, as the company sales team will follow up every link of the order for our customers;
3. We have a QC team, All of our products will have 100% QC inspection before delivery.
4. “Sustainable and permanent operation" is our vision and goal, and we will provide continuous services for new and old customers for the long run.
