Product Details:
|
Product Name: | Ultrasonic Welding Plastic Parts | Frequency: | 15KHz |
---|---|---|---|
Power: | 5000W | Max Working Stroke(mm): | Φ100*100mm±1mm |
Max Welding Time: | 5s | Welding Method: | Time, Energy |
Voltage(V): | AC220V±5% 50/60Hz | Dimension(L*W*H)mm: | 1200*1150*1950mm |
Keyword: | Ultrasonic Weld Large Surface | ||
Highlight: | Ultrasonic Plastic Welder 15kHz,5000W Ultrasonic Plastic Welder,Energy Welding Modes Ultrasonic Welder |

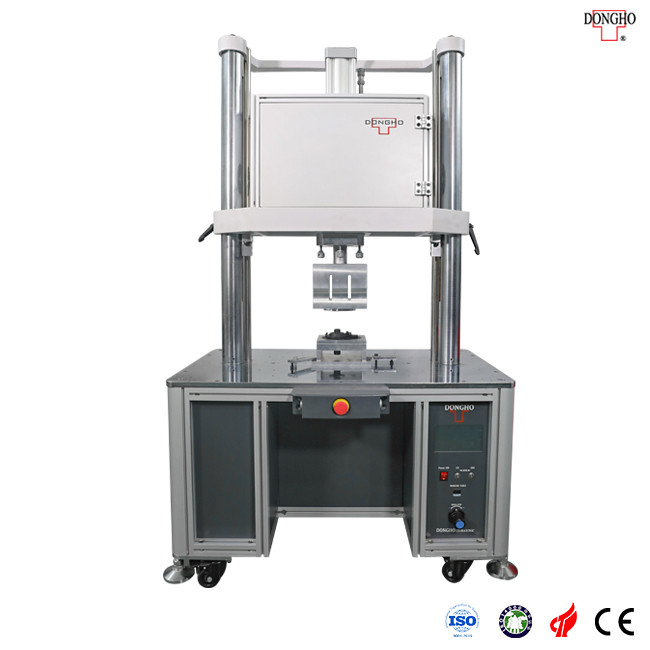

High Precision Ultrasonic Plastic Welder 15kHz 5000W For Large Plastic Parts
Description:
The ultrasonic welding system of iAL series welders can be used to weld thermoplastic materials, and to weld and separate textiles and plastics no matter the workpieces are large or extra large in size for applications. Dongho machine frameworks are rigid and durable, designed in modules that can ensure the consistency and flatness of products during rapid and high-pressure operation. Such rigid equipment is equipped with precise guide rail and mature driving components, it is Dongho patented welder. After integrating the controlling system with the ultrasonic generator, this machine can carry out process control to its maximum extent. Different welding modes can achieve optimized ultrasonic welding treatment on the workpieces.
Technical Parameters:
Model | iAL S1550 | iALB S1550 |
Specification | ||
Frequency | 15KHz | 15KHz |
Power | 5000W | 5000W*2 |
Max working Stroke(mm) | Φ100*100mm±1mm | |
Max Welding Time | 5s | |
Welding Method | time, energy | |
Voltage(V) | AC220V±5% 50/60Hz | |
Dimension(L*W*H)mm | 1200*1150*1950mm | |
Weight(kg) | 350kg | 405kg |
Advantages of ultrasonic plastic welding machine:
1, fast and accurate -- most ultrasonic welding can be completed in 0.1-0.5 seconds;
2, stable quality -- mechanized production, stable and reliable product quality;
3, economical and affordably - remove a large number of fixtures, adhesives, reduce labor, reduce costs;
4, beautiful and clean -- the surface is well-formed, no damage and no variation, no scratches, and adhesive residue;
5, the process is simple -- no need to preheat, no need to clean before and after several processes;
6, convenient operation -- as long as the welding parameters are set, the operation is very convenient;
7, high strength, good air tightness -- the weld composition is the same as the base material, high welding strength, good airtightness, watertight, airtight;
8, can realize automatic welding;
Our Services:
1. Response within 24 hours! All the contacts and emails will be nicely responded to within 30 minutes;
2. From the perspective of customers to help customers analyze and choose suitable products for customers;
3. All after-sales service information will get feedback within 24 hours;
4. On-line technical training and online service are available;
Quality Control:
1. After the customer confirms the demand, we will strictly control each link of the product production;
2. At the same time, as the company sales team will follow up every link of the order for our customers;
3. We have a QC team, All of our products will have 100% QC inspection before delivery.
4. “Sustainable and permanent operation" is our vision and goal, and we will provide continuous services for new and old customers for the long run.
