Product Details:
|
| Product Name: | Ultrasonic Welding Plastic Pp Machine | Frequency Accuracy: | 19.80KHz-20.20KHz |
|---|---|---|---|
| Triggering Method: | Time/Pressure/Position/Power | Welding Method: | Weld Time/Relative Position/Absolute Position/Weld Energy/Peak Power/Max.pressure/Ground Detect |
| Max Working Stroke(mm): | Φ63*100mm≤2mm | Max Welding Time: | 5 S |
| Voltage(V): | AC220V±5% 50/60Hz | Air Pressure: | ≥0.05Mpa ≤0.65Mpa |
| Keyword: | Ultrasonic Welding Of Abs Plastic | Application: | Ultrasonic Welding Of Thermoplastics |
| High Light: | abs plastic ultrasonic welder,Ultrasonic Welding Machine 20kHz,thermoplastics ultrasonic welder |
||

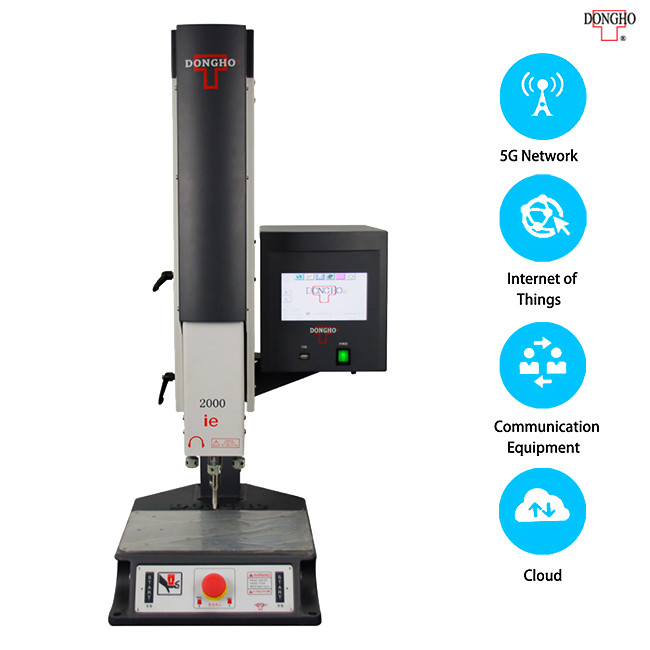

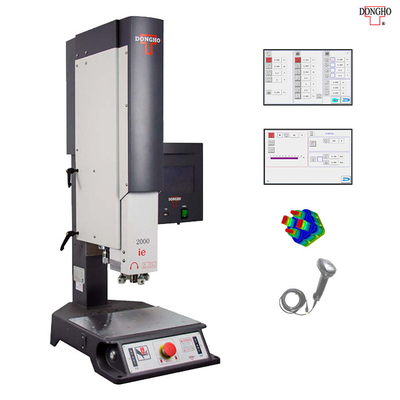

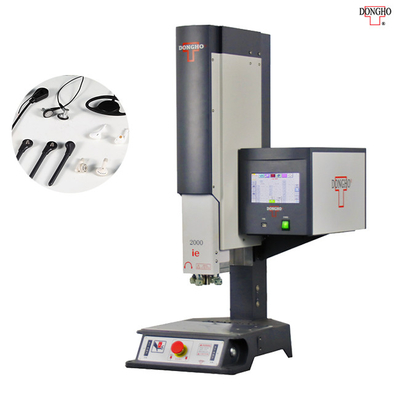

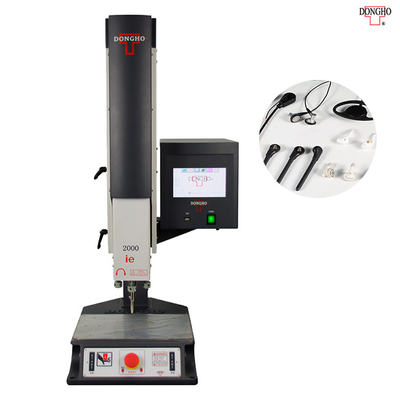

Ultrasonic Welding Machine 20kHz 2500W Professional High Speed Plastic Welder
20kHz 2500W Ultrasonic Welding Machine Professional High-Speed Plastic Welder
The iAG series ultrasonic welding machine is DONGHO innovative, high-quality, and precise ultrasonic welding machine, with DONGHO proved proportion valve technology, with 7 welding modes, and fully electronic welding machine settings. The operation process is connected by Ethernet, and the data connection supports Industry 4.0. Application, IDCS interconnection service remote monitoring and collection, connecting to MES system, perfect control of product quality. We carry out quality monitoring, statistical process control, and picture descriptions of the welding process to provide support for users to find parameters and quality records during production, as well as permission management, log records of user behavior and welding results, and data output.
Technical Parameters:
| Model | iAG2025e |
| Frequency accuracy | 19.80KHz-20.20KHz |
| Power | 2500W |
| Triggering Method | Time/Pressure/Position/Power |
| Welding Method | Weld time/Relative position/Absolute position/Weld energy/Peak power/Max.pressure/Ground detect |
| Max working Stroke(mm) | Φ63*100mm≤2mm |
| Max Welding Time | 5 S |
| Voltage(V) | AC220V±5% 50/60Hz |
| Air pressure | ≥0.05Mpa ≤0.65Mpa |
| Pneumatic control | Proportional valve |
| Amplitude control | Single amplitude/stepping amplitude /distance amplitude |
| Operation pressure method | standard/multiple stages |
| Piling function | time/position/energy/pressure |
| Weld area | Not more than 150mm as per materials/shapes, etc. |
| Dimension(L*W*H)mm | 500*750*1100mm |
| Weight(kg) | 106kg |
Features:
* The 6th generation iQS operation system
* Modularized structure for easy expansion
* Built-in scanning gun for data tracing
* Seven welding modes available:
Weld time/Relative position/Absolute position/Weld energy/Peak power/Max.pressure/Ground detect
* Powerful welding process control with weld graph
* Digital amplitude setting, amplitude segmentation, and distance segmentation available
Advantages of ultrasonic welding:
1, Energy-saving and environmental protection;
2, No need to be equipped with a smoke dissipation ventilation device;
3, Low cost, high efficiency;
4, Easy to realize automatic production;
5, For the body welding, high strength, good airtightness;
6, Mechanical welding parameter setting, the operation is very convenient;
7, The process is simple, no need for preheating, cleaning and other processes.
Ultrasonic plastic welding machine:
Suitable for ABS, PP(polypropylene), PE, PC(polycarbonate), PUC, PU(polyurethane), PMMA, PS, PPS, PPSU, PBT, PETG and other plastic material welding, plastic sheet welding, plastic box welding, plastic shell welding, Also used in plastic, electronics, electrical appliances, motors, batteries, auto parts, packaging, environmental protection, medical equipment, non-woven clothing, stationery, daily necessities, plastic toys, sports goods, food industry, communication equipment, and other industries.
Our Advantages:
1. More than 25 years ultrasonic plastic welding machine manufacture experience;
2. Our company has passed ISO9001 quality management system, ISO1400 environmental management system, CE certification;
3. Technical staffs have more than 25-year experience in ultrasonic devices research, development, and manufacture;
4. First-class sales team, providing customers with valuable products and services;
5. High-quality promise, At least one-year Warranty for machines and 3 months warranty for tooling;
6. Professional after-sales service team, lifelong technical support.
