Industrial Ultrasonic Aluminum Welding Machine 20 KHz

Industrial 20kHz Ultrasonic Aluminum Welding Machine

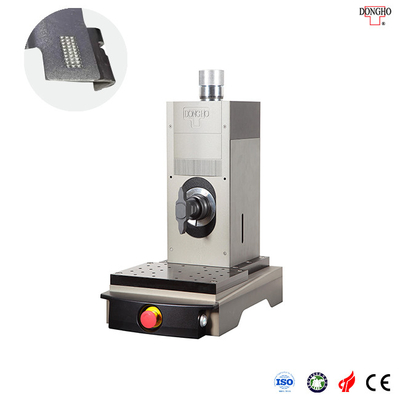

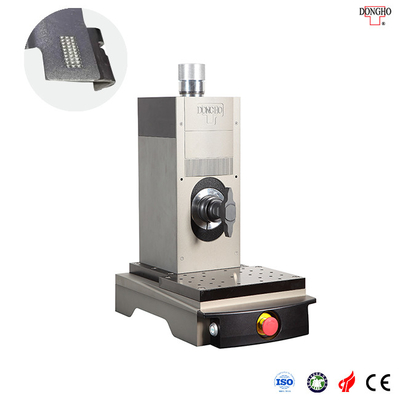

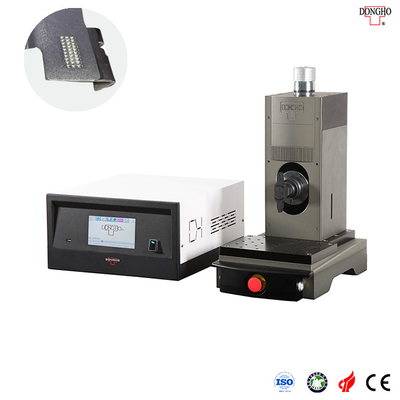

DONGHO MPL series ultrasonic metal welder has excellent mechanical structure, equipped with reliable distance and pressure drive system and precision proportional valve pneumatic system, stable and reliable output, can be applied to all kinds of metal welding, such as electrical connection, terminal welding, copper aluminum plate welding, battery electrode welding and so on.

Technical Parameters:

Comparison between ultrasonic welding and resistance welding:

1. Ultrasonic welding can be carried out between different metals of the same metal, which consumes much less energy than resistance welding.
2. Compared with other pressure welding, ultrasonic welding requires less pressure, and the amount of deformation is less than 10%, while the deformation of cold pressure welding workpiece can reach 40%-90%.
3. Unlike other welds, ultrasonic welding does not require the pretreatment and post-treatment of the welded surface.
4. Ultrasonic welding without flux, metal filler, external heating, and other external factors.
5. Ultrasonic welding can make the temperature effect of the material to a minimum (the temperature of the welding zone does not exceed 50% of the absolute melting temperature of the metal to be welded), so as not to change the metal structure, high fusion strength

Application:

The ultrasonic metal welding machine is used in a wide range: car lights, instrument panels, auto parts, audio speaker network, water tank, instrument panel, intake manifold, air filter cover, brake fluid box, airbag cover, instrument panels, electrical, medical, household appliances, toys, and other friction welding.
