Product Details:
|
| Product Name: | Ultrasonic Vibration Welding | Frequency Range: | IBA-A2030e |
|---|---|---|---|
| Ultrasonic Power: | 3000W | Triggering Method: | Time /Pressure/Power |
| Welding Method: | Welding Time/Welding Energy/Peak Power/Grounding Detect | Max Working Stroke(mm): | 80mm±1mm |
| Max Welding Time: | 5s | Voltage(V): | AC220V±5% 50/60Hz |
| High Light: | Vibration Welding Plastic Machine,Ultrasonic Welding For Packaging,20kHz ultrasonic welding plastic |
||

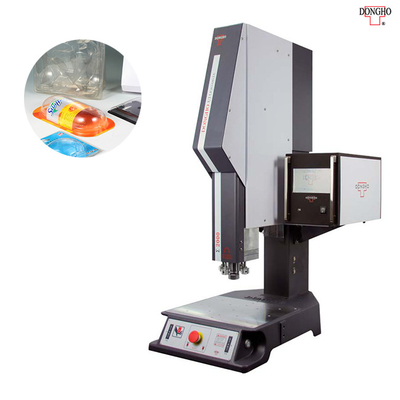

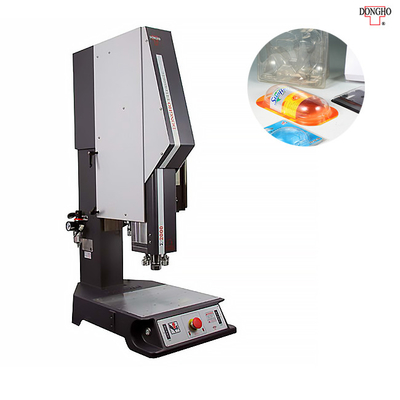

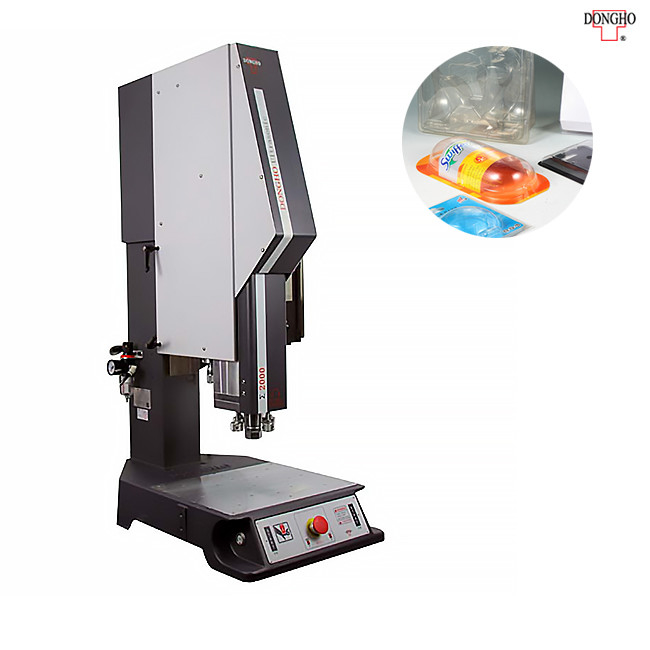

20kHz 3000W Ultrasonic Vibration Welding Plastic Machine With Intelligent Generator For Packaging
20kHz 3000W Ultrasonic Vibration Welding Plastic Machine With Intelligent Generator For Packaging
Technical Parameters:
| Model | iBA-A2030e |
| Frequency accuracy | 19.80KHz-20.20KHz |
| Power | 3000W |
| Triggering Method | Time /Pressure/Power |
| Welding Method | Welding time/Welding energy/Peak power/Grounding detect |
| Max working Stroke(mm) | 80mm±1mm |
| Max Welding Time | 5s |
| Voltage(V) | AC220V±5% 50/60Hz |
| Air pressure | ≥0.05Mpa ≤0.65Mpa |
| Air pressure control | proportional valve |
| Weld area | Not more than 170mm as per material, shape, etc. |
| Dimension(L*W*H)mm | 500*750*1100mm |
| Weight(kg) | 106kg |
Features:
1. The 6th generation iQS operating system, multi-level password protection for hierarchical authorizations
2. New type electronic pressure-measuring device
3. Welding parameters saving in USB, QA quality diagnosis, and control
4. Digital amplitude setting and amplitude segmentation
5. Clearance offset function, and double-feedback control structure
6. PropControl (Proportion Valve Technology)
7. UTC220 high-speed control for enhancement of track precision, real-time data application with MES system
8. Fully digital and auto-tuning functions with saving function
9. Built-in scanning gun port ( supporting four brands) is equipped for data tracing.
Description:
IBA series ultrasonic welding machine is equipped with an ultrasonic digital generator and controller. The digital ultrasonic generator has welding parameter storage, quality QA diagnostic control, gap compensation function, and full data automatic tuning function. UTC220 high-speed control, real-time data application for improved trajectory accuracy, MES system. IBA series ultrasonic welding machine is equipped with the sixth generation IQS operating system, Ethernet connection, multi-level password protection, and hierarchical authorization, more controllable operation. Data support industry 4.0 applications.
Compared with the GW series, iBA is equipped with Dongho verified Proportion Valve technology, a new electronic pressure measuring tool, and a variety of welding modes. Supports four scanning guns to collect mold and workpiece bar codes, data traceability, and security requirements.
Ultrasonic welding plastic compatibility
Most commonly used polymer injection forming will available ultrasonic welding, but the difficulties of the ultrasonic plastic welding and held by many of the weld itself, sexual large plastic friction coefficient, thermal conductivity, the interface is easy to form the isolation layer, the ultrasonic welding performance is better, the hard plastic, in surface welding, due to the small oscillation transmission loss, ultrasonic welding, the easier it is to Crystalline plastic from solid to a molten state, the temperature range is very narrow, very fast, so the welding performance is poor, adjustment is very difficult.
