Product Details:
|
| Product Name: | Plastic Welding With Ultrasonic | Freqyency Range: | 29.80KHz-30.20KHz |
|---|---|---|---|
| Ultrasonic Power: | 1500W | Triggering Method: | Time |
| Welding Method: | Time/Energy/Grounding Detection | Max Working Stroke(mm): | 80mm±1mm |
| Max Welding Time: | 5s | Voltage(V): | AC220V±5% 50/60Hz |
| Keyword: | Time Triggered Ultrasonic Welding Machine | Application: | Plastic Welding ABS,PVC |
| Highlight: | 30kHz 1500W Ultrasonic welding machine,time triggered ultrasonic welding machine,plastic welding with ultrasonic |
||

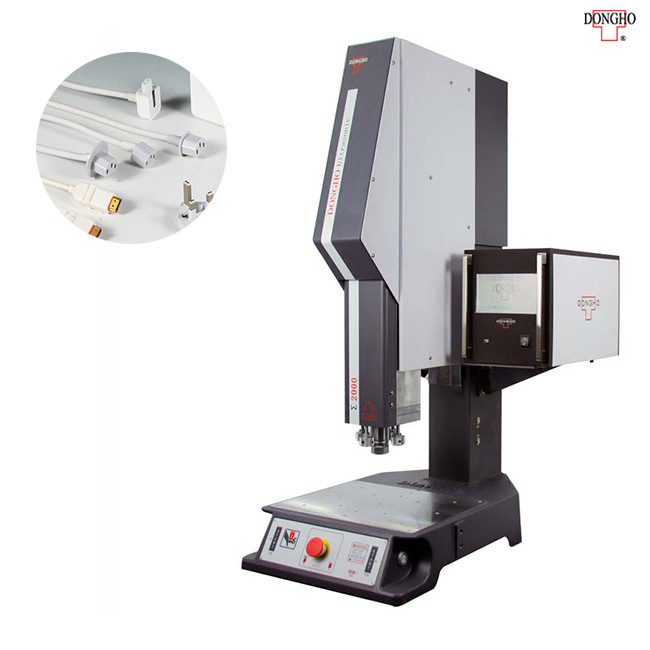

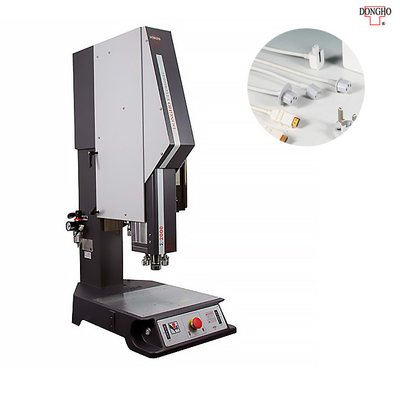

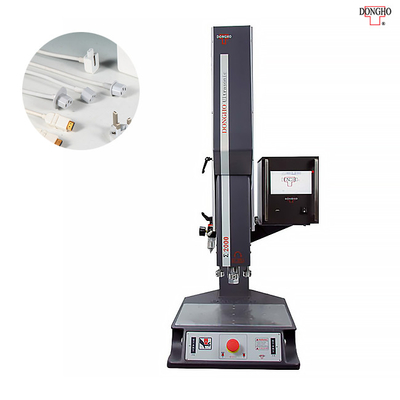

30kHz Ultrasonic Welding Machine For Charging Plug With Time Energy And Grounding Welding Modes
30kHz 1500W Ultrasonic Welding Machine For Charging Plug
Description:
Each iBA ultrasonic plastic welder has Dongho-proven PROPORTION Valve technology and intelligent high-performance generators, rugged equipment with precise guide rails, intelligent generators with multiple welding modes, digital amplitude setting, and amplitude segmentation, full digital automatic tuning with storage, quality QA diagnostic control, Ensure high-quality welding of products. Ethernet connectivity, data support for industry 4.0 applications, and connectivity to MES systems.
Plastic ultrasonic welding process:
Ultrasonic welding is a fast, clean and effective assembly process for processing thermoplastic parts and some synthetic components. Ultrasonic welding not only has the function of connection and assembly but also has the sealing effect of moistureproof and waterproof. The ultrasonic welding device converts the current 50/60Hz electrical frequency into high-frequency electrical energy through a transistor function device, which is supplied to the converter. The converter converts electrical energy into mechanical vibration energy for ultrasonic, and the pressure regulator transmits the converted mechanical energy to the welding head of the ultrasonic welder. The welding head is an acoustic device that transmits mechanical vibration energy directly to the product to be pressed. Vibration generated by vibration friction welding workpieces to the bonding surface heat melt plastic, vibrations in the molten state matter stops when it reaches its interface, the transient pressure maintenance can make the melt adhesive surface curing generated when a strong molecular bonds, the entire cycle is usually less than one second is complete, but the welding strength is close to a piece of raw materials.
Features:
* The 6th generation iQS operating system, multi-level password protection for hierarchical authorizations
* New type electronic pressure-measuring device
* Welding parameters saving in USB, QA quality diagnosis, and control
* Digital amplitude setting and amplitude segmentation
* Clearance offset function, and double-feedback control structure
* PropControl (Proportion Valve Technology)
* UTC220 high-speed control for enhancement of track precision, real-time data application with MES system
* Fully digital and auto-tuning functions with saving function
* Built-in scanning gun port ( supporting four brands) is equipped for data tracing.
Ultrasonic welding machine specification:
| Model | iBA-F3015e |
| Frequency accuracy | 29.80KHz-30.20KHz |
| Power | 1500W |
| Triggering Method | Time |
| Welding Method | Time/Energy/Grounding detection |
| Max working Stroke(mm) | 80mm±1mm |
| Max Welding Time | 5s |
| Voltage(V) | AC220V±5% 50/60Hz |
| Air pressure | ≥0.05Mpa ≤0.65Mpa |
| Air pressure control | proportional valve |
| Weld area | No more than 100mm as per material, shape, etc. |
| Dimension(L*W*H)mm | 470*720*950mm |
| Weight(kg) | 75kg |
