Product Details:
|
| Product Name: | Ultrasonic Welding Machine Working | Frequency Accuracy: | 34.80KHz-35.20KHz |
|---|---|---|---|
| Power: | 1200W | Triggering Method: | Time /Pressure/Power |
| Welding Method: | Welding Time/Welding Energy/Peak Power/Grounding Detect | Max Working Stroke(mm): | 80mm±1mm |
| Keyword: | Ultrasonic Welding Plastic | Application: | ABS,PP,PE,PETG Ultrasonic Welding |
| High Light: | Ultrasonic Plastic Welding Equipment,35kHz ultrasonic welding machine,1200W Plastic Welding Ultrasonic |
||

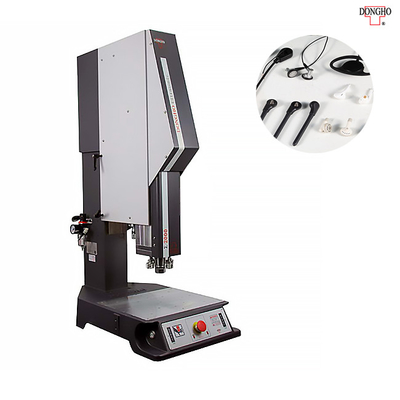

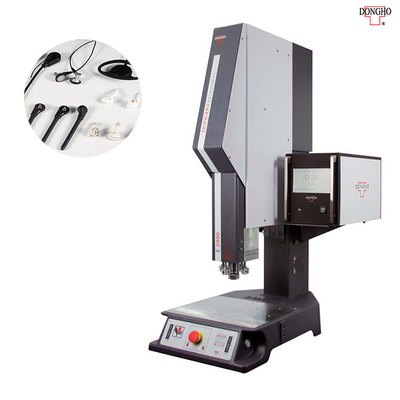

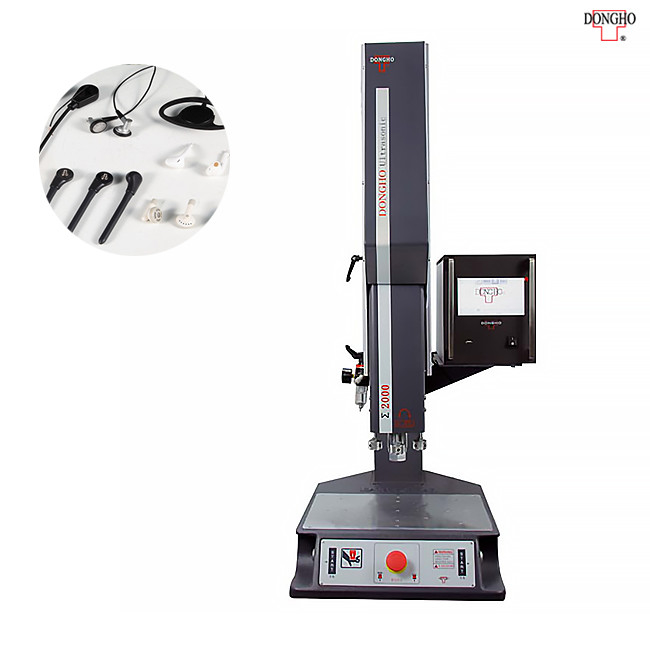

35kHz 1200W Ultrasonic Plastic Welding Equipment Long Continuously Vibration
Technical Parameters:
| Model | iBA-A3512e |
| Frequency accuracy | 34.80KHz-35.20KHz |
| Power | 1200W |
| Triggering Method | Time /Pressure/Power |
| Welding Method | Welding time/Welding energy/Peak power/Grounding detect |
| Max working Stroke(mm) | 80mm±1mm |
| Max Welding Time | 5s |
| Voltage(V) | AC220V±5% 50/60Hz |
| Air pressure | ≥0.05Mpa ≤0.65Mpa |
| Air pressure control | proportional valve |
| Weld area | Not more than 50mm as per material, shape, etc. |
| Dimension(L*W*H)mm | 470*720*950mm |
| Weight(kg) | 75kg |
Features:
* 6th generation iQS operation system
* PropControl (Proportion Valve Technology)
* New type electronic pressure-measuring device
* Built-in scanning gun for data tracing
* Welding parameters saving in USB, QA quality diagnosis, and control
* UTC220 high-speed control for enhancement of track precision
Welding modes: Welding time/Welding energy/Peak power/Grounding detect
Description:
iBA series ultrasonic welding machine sets ultrasonic digital generator and controller, complete ultrasonic welding equipment for welding press. Each machine contains DONGHO verified Proportion Valve technology, robust equipment with accurate guide rails, and mature driving components, to ensure high quality and repeat welding. UTC220 high-speed control, real-time data application to improve trajectory accuracy, MES system, built-in support for four brands of scanning guns, data traceability.
ultrasonic plastic welding technology is applied to the bonding between plastic products and plastic products and metal accessories and other non-plastic materials bonding! It replaces solvent adhesive machinery and other bonding processes, is an advanced assembly technology! Ultrasonic welding not only has the function of connection and assembly but also has the sealing effect of moistureproof and waterproof.
