Product Details:
|
| Product Name: | 4500W Ultrasonic Welder | Frequency Accuracy: | 14.80KHz-15.200KHz |
|---|---|---|---|
| Power: | 4500W | Triggering Method: | Time |
| Welding Method: | Time/Energy | Max Working Stroke(mm): | 100mm±1mm |
| Max Welding Time: | 5s | Booster Amplification Ratio: | 1:4.0 |
| Voltage(V): | AC220V±5% 50/60Hz | Keyword: | Plastic Ultrasonic Welding |
| High Light: | 4500W Ultrasonic Welder,4500W ultrasonic plastic welder,15kHz ultrasonic welding machine |
||

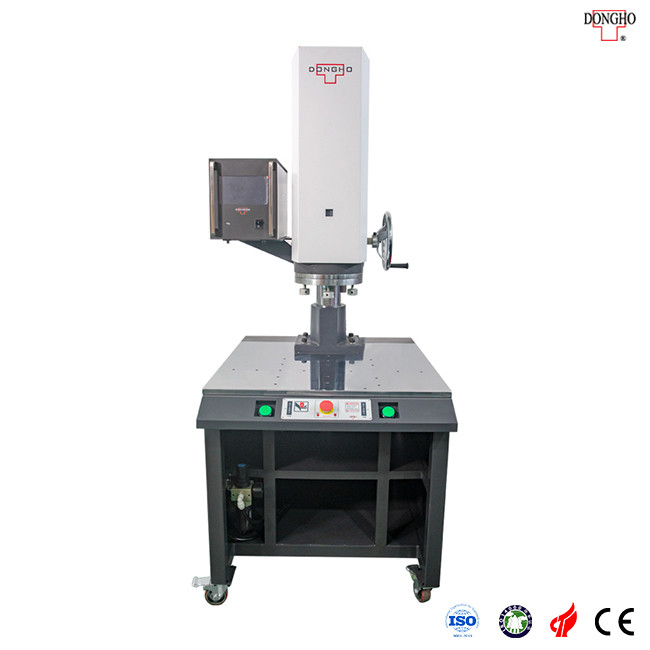

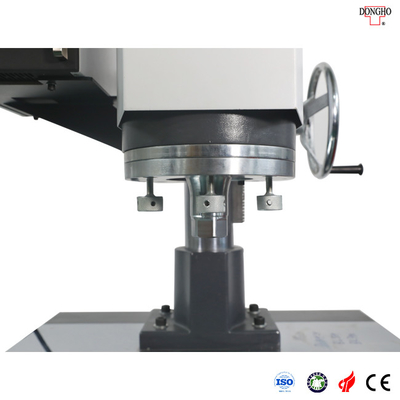

4500W Semi-Automatic Ultrasonic Welder For Plastic Parts
Ultrasonic plastic welding machine in the welding of plastic products, that is, do not fill any adhesive, filler or solvent, also does not consume a lot of heat, has the advantages of simple operation, fast welding speed, high welding strength, high production efficiency. Therefore, ultrasonic welding technology is more and more widely used.
Technical Parameters:
| Model | iBA-HF1545 |
| Frequency accuracy | 14.80KHz-15.200KHz |
| Power | 4500W |
| Triggering Method | Time |
| Welding Method | Time/Energy |
| Max working Stroke(mm) | 100mm±1mm |
| Max Welding Time | 5s |
| Booster Amplification ratio | 1:4.0 |
| Voltage(V) | AC220V±5% 50/60Hz |
| Air pressure | ≥0.05Mpa ≤0.65Mpa |
| Amplitude control | Single-stage amplitude |
| Air pressure control | pressure regulating valve |
| Frequency adjustment | IGBT Automatic frequency chasing |
| Weld area | Per material/shapes, not more than 300mm |
| Hardware | |
| Output interface | 7" color touch screen |
| Control System | iQS operating system |
| Motion control system | Pneumatic control |
| Frequency(KHz) | 15KHz |
| Power(W) | 4200W |
| Frequency adjustment | IGBT Automatic frequency chasing |
| Z traveling precision(mm) | ±0.05mm accuracy |
| cylinder stroke (mm) | 100mm±1mm |
| Air pressure control | pressure regulating valve |
| Max. air pressure(mpa) | 1mpa |
| Max Welding time(S) | 5S |
| Cooling system | Vortex cooling |
| Generator alert | Frequency Error/Over current/Power overload/Over temperature |
| Relative humidity | 30% - 95%, condensate free |
| Operation temperature | +5℃ - +55℃ |
| Air source | Compressed air must be clean, dry and free of lubricant |
| Voltage(V) | AC220V±5% 50/60Hz |
Features:
● With the 6th generation iQS operation system;
● Mounted lifting motor for structural adjustment, easy to use;
● Built-in scanning gun for data tracing;
● USB-saved welding parameters and QA quality control;
● Auto tuning frequency tracking, overload protection.
