Product Details:
|
| Product Name: | Ultrasonic Metal Welder | Frequency: | 35KHz |
|---|---|---|---|
| Power: | 1200W | Welding Force: | 440N Max. |
| Control Voltage: | 24V | Welding Stroke: | 30mm |
| Welding Range: | 5-30 Square Mm | Keyword: | Ultrasonic Welding Machine For Metal |
| High Light: | Ultrasonic Welder 35kHz,Ultrasonic Welder For Metal Soldering,35kHz Ultrasonic Metal Welding Machine |
||

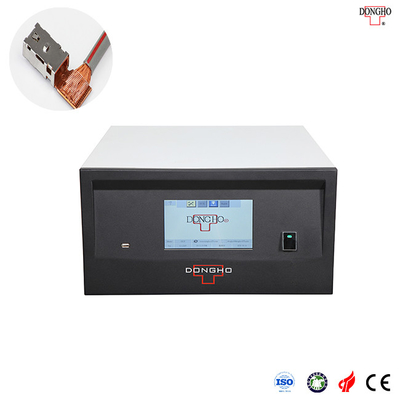

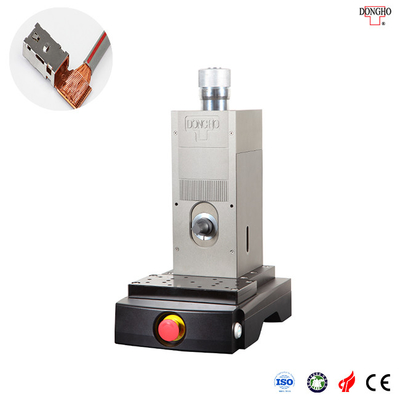

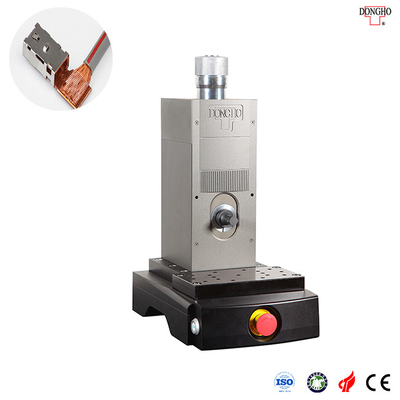

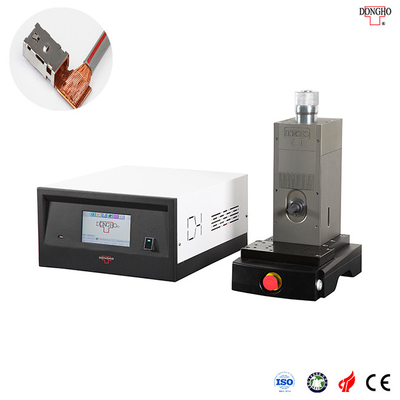

35KHz Pneumatic Ultrasonic Non-Ferrous Metal Welder For Metal Soldering
Technical Parameters:
| Model | MPS-30 |
| Frequency | 35KHz |
| Power | 1200W |
| Welding Force | 440N Max. |
| Control Voltage | 24V |
| Welding Stroke | 30mm |
| Welding Range | 5-30 mm2 |
Features:
* The 6th generation iQS operation system, multi-level password protection with hierarchical authorization.
* Supportable to MES,DPS for real-time data management.
* Profiling of the welding process
* Built-in scanning port supporting four brands of scanning guns for data traceability.
* Stable workmanship
* Multiple welding modes
* Multiple functions available for integration of an automatic production line.
* Environment friendly and low impedance
* Cost saving
* High resistance to corrosion.
Advantages:
Ultrasonic welding metal does not melt, nor does it have fragile metal characteristics. It conducts electricity very well when welding, and the resistance system is relatively low, which is close to 0. The metal surface requirements are not high, either oxidation or electroplating can be welded. Welding time is relatively short, also do not need any flux help, welding without sparks belongs to a safe and environmental protection welding way.
