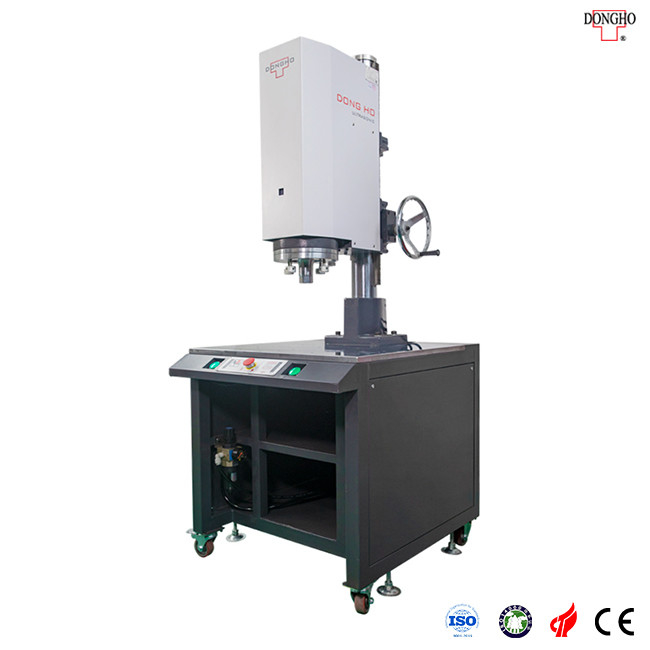

15kHz Ultrasonic Plastic Welder For Large Plastic Parts 4200W

15kHz Ultrasonic Plastic Welder For Large Plastic Parts 4200W
15kHz Ultrasonic Plastic Welder For Large Plastic Parts 4200W
15kHz Ultrasonic Plastic Welder For Large Plastic Parts 4200W 15kHz Ultrasonic Plastic Welder For Large Plastic Parts 4200W 15kHz Ultrasonic Plastic Welder For Large Plastic Parts 4200W

Large Image :  15kHz Ultrasonic Plastic Welder For Large Plastic Parts 4200W

Product Details:
Place of Origin: China
Brand Name: Dongho
Certification: ISO1400 & ISO9001 & CE
Model Number: iBA-HF1542
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: wood carton
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 500 sets per month

15kHz Ultrasonic Plastic Welder For Large Plastic Parts 4200W

Description
Keyword: 15kHz Ultrasonic Plastic Welder Frequency Accuracy: 14.80KHz-15.200KHz
Power: 4200W Triggering Method: Time
Welding Method: Time/Energy Max Working Stroke(mm): 100mm±1mm
Max Welding Time: 5s Booster Amplification Ratio: 1:4.0
Voltage(V): AC220V±5% 50/60Hz Air Pressure: ≥0.05Mpa ≤0.65Mpa
High Light:

15kHz ultrasonic plastic welder

,

4200W ultrasonic plastic welder

,

15kHz ultrasonic welding machine

15kHz Ultrasonic Plastic Welder For Large Plastic Parts



Technical Parameters:



Model iBA-HF1542
Frequency accuracy 14.80KHz-15.200KHz
Power 4200W
Triggering Method Time
Welding Method Time/Energy
Max working Stroke(mm) 100mm±1mm
Max Welding Time 5s
Booster Amplification ratio 1:4.0
Voltage(V) AC220V±5% 50/60Hz
Air pressure ≥0.05Mpa ≤0.65Mpa
Amplitude control Single-stage amplitude

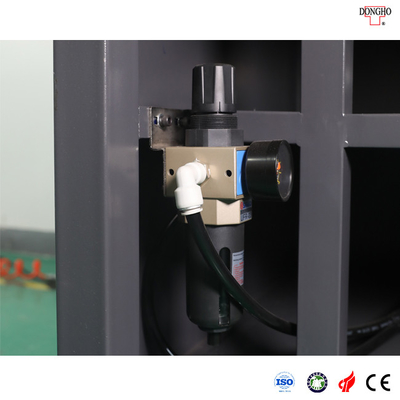

Air pressure control pressure regulating valve
Frequency adjustment IGBT Automatic frequency chasing
Weld area Per material/shapes,not more than 280mm



Description:



Principle of plastic welding: the current 15/20Hz electrical frequency is converted into 20KHz or 40KHz high-frequency electrical energy through transistor function equipment, which is supplied to the converter. Reuse on weldment sends the ultrasonic energy to the welding area, due to the welding area is two welding interface of the acoustic resistance is big, so can produce local high temperature due to the poor thermal conductivity of plastic, again can't timely send out for a while, gathered in the welding area, the two plastic contact rapidly melting, coupled with a certain pressure, make its merging into one. Let the pressure continue for a few seconds after the ultrasound stops, allowing it to solidify. The whole cycle is usually completed in less than a second, but the welding strength is close to that of a piece of bonded material.



Advantages of ultrasonic welding:



Due to the influence of the plastic bonding process too many factors, many complex plastic products can not be formed at one time, but also need plastic bonding and hot bonding process. However, the efficiency of the process itself is low, some need to add adhesive, resulting in ugly welding, low bonding fastness, environmental pollution. But the use of ultrasonic welding machines will not appear this problem, ultrasonic welding can not only improve production efficiency, reduce costs, but also improve product quality and production safety.



Our Services:



1. Response within 24 hours! All the contacts and emails will be nicely responded to within 30 minutes;
2. From the perspective of customers to help customers analyze and choose suitable products for customers;
3. All after-sales service information will get feedback within 24 hours;
4. On-line technical training and online service are available;





Quality Control:


1. After the customer confirms the demand, we will strictly control each link of the product production;
2. At the same time, as the company sales team will follow up every link of the order for our customers;
3. We have a QC team, All of our products will have 100% QC inspection before delivery.
4. “Sustainable and permanent operation" is our vision and goal, and we will provide continuous services for new and old customers for the long run.
