Product Details:
|
| Product Name: | Ultrasonic Welding Equipments | Frequency: | 35KHz |
|---|---|---|---|
| Power: | 1000W | Triggering Method: | Time |
| Welding Method: | Time/Energy/Power | Max Working Stroke(mm): | 80mm±1mm |
| Max Welding Time: | 6s | Voltage(V): | AC220V±5% 50/60Hz |
| High Light: | Plastic 35kHz Ultrasonic Welding Machine,Ultrasonic Welding Machine Overload Protection,35kHz Ultrasonic Welding Machine 1000W |
||

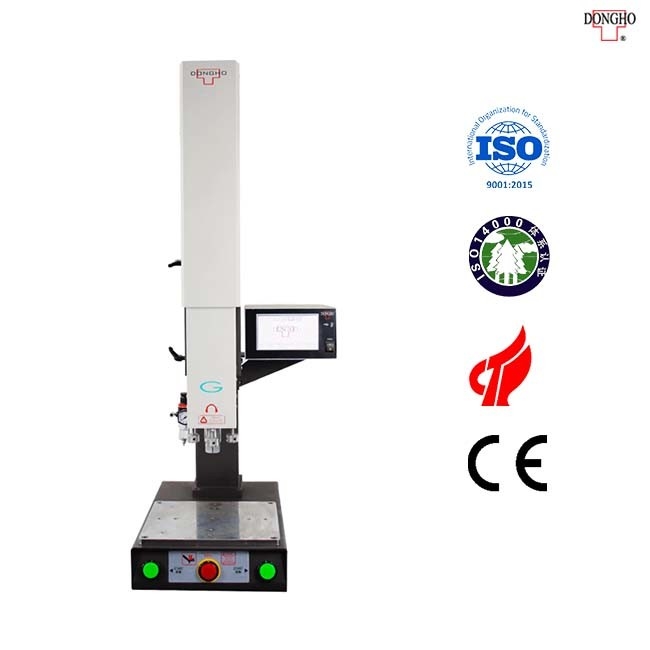

Ultrasonic Welding Machine For Plastic 35kHz 1000W With Overload Protection System
Technical Parameters:
| Model | GW-AS3510 |
| Frequency accuracy | 34.80KHz-35.20KHz |
| Power | 1000W |
| Triggering Method | Time |
| Welding Method | Time/Energy/Power |
| Max working Stroke(mm) | 80mm±1mm |
| Max Welding Time | 6s |
| Voltage(V) | AC220V±5% 50/60Hz |
| Air pressure | ≥0.05Mpa ≤0.65Mpa |
| Holding method | Static pressure holding |
| Weld area | Per material/shape, usually within 150mm |
| Dimension(L*W*H)mm | 350mm*622mm*1140mm |
| Weight(kg) | 96.5kg |
Features:
* The 6th generation iQS operation system
* Built-in scanning gun for data tracing
* Mounted lifting motor for structural adjustment
* Modular structures with multiple welding modes designed for the whole series of welders
* Metal die-casted stand column in square structure with high-performance rigidity
Description:

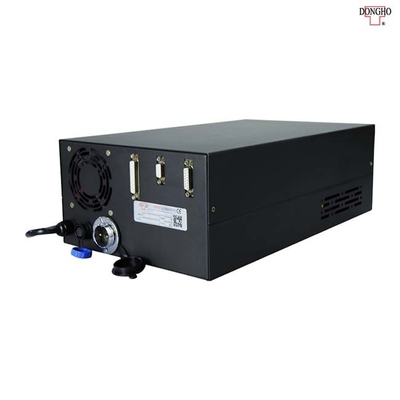

GW series ultrasonic welding machine is equipped with the sixth generation iQS operating system, built-in support code scanning gun, data traceability. The welding machine's frame is cast by metal mold, with the high-performance rigid square column, and the frame structure can be adjusted by motor lifting, which is easy to operate. The generator used by the GW ultrasonic welding machine is the digital intelligent touch screen generator, equipped with real-time frequency automatic tracking display, overload protection, and fault alarm functions, the internal program is composed of a full series of modular, with a variety of welding modes. The welding machine due to its strong equipment with accurate and mature drive components can meet the customer's conventional welding requirements, welding strength can be close to the strength of raw materials, with a unique welding effect, very powerful function.
Ultrasonic Welding of Plastic Sheets
Many plastics of different materials can be ultrasonic welded, but some plastics of the same material can not be ultrasonic welded. More difficult to weld materials according to the characteristics of the material and the specific structure of the product to choose a larger power, the amplitude of the ultrasonic welding equipment, there are some products that need to choose a higher frequency of the machine to achieve welding. Specific needs professional technical personnel to judge.
Our Advantages:
1. More than 25 years ultrasonic plastic welding machine manufacture experience;
2. Our company has passed ISO9001 quality management system, ISO1400 environmental management system, CE certification;
3. Technical staffs have more than 25-year experience in ultrasonic devices research, development, and manufacture;
4. First-class sales team, providing customers with valuable products and services;
5. High-quality promise, At least one-year Warranty for machines and 3 months warranty for tooling;
6. Professional after-sales service team, lifelong technical support.
ultrasonic welding machine manufacturers, ultrasonic welding machine suppliers, easy-to-operate ultrasonic plastic welding machine
