Product Details:
|
| Product Name: | 28KHz Spot Bonding Machine | Frequency: | 28khz |
|---|---|---|---|
| Power Range: | <=700W | Keyword: | Ultrasonic Spot Welding Machine |
| Working Mode: | External Control/Spot Welding | Hand Gun Weight: | 380g |
| High Light: | Spot Bonding Ultrasonic Plastic Welder,Spot Bonding Ultrasonic Plastic Welding Machine,Ultrasonic Plastic Welder 28KHz |
||

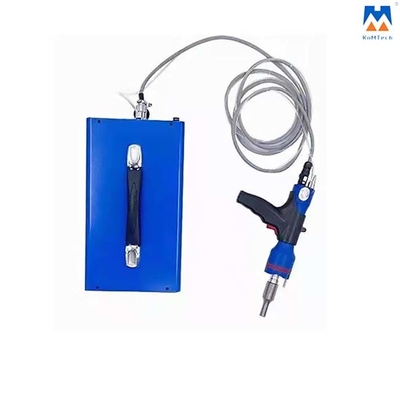

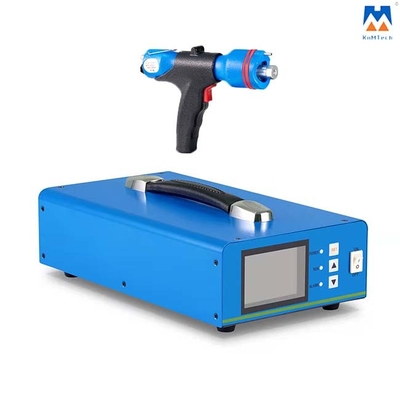

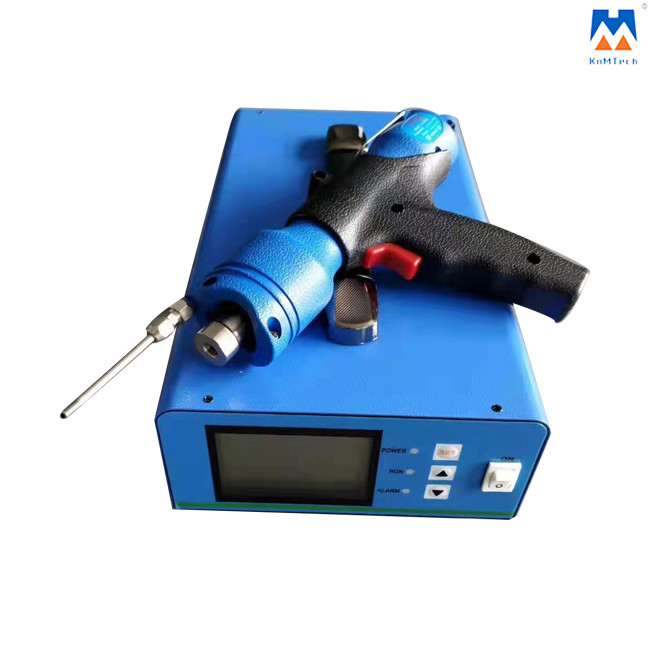

Spot Bonding Ultrasonic Plastic Welding Machine Supplier
The application of an ultrasonic plastic spot welder greatly reduces the processing time, the combination of plastics can be completed in a few milliseconds. Ultrasonic processing, the process is clean, stable, reliable, and has low energy consumption. Ultrasonic energy is consumed only in areas where welding is needed, efficiently and economically. There is no need for preheating and heat preservation during operation. Using ultrasound does not generate excess heat. Do not use expensive and easily contaminated auxiliaries such as adhesives, buckles, or adhesives.
Technical parameters:
| Product Name | Ultrasonic Spot Bonding Machine | |||
| Model | 28KHz 700W | 35KHz 700W | 28KHz 1200W | 35KHz 1200W |
| Material of Transducer | Aluminum alloy | Titanium alloy | ||
| Working mode: | External control/spot welding | |||
|
Welding Gun Weight: |
380g | |||
Features:
1. Large LCD display, more comprehensive parameters;
2. External control, spot welding, dual-mode switch;
3. Unique three-stage frequency tracking, range up to 2K width;
4. Built-in blowing device, effectively reduce the temperature rise of the transducer, mold, prolong the service life;
5. The core of the machine adopts STM32 high-performance processor to achieve high-speed communication, high efficiency, and stability;
6. Reduce the power output delay, improve the stability of ultrasonic work;
7. Dual-use hand-held welding gun, gun/straight handle can be switched at will
Application:
| Medical and health | welding of medical containers, welding of surgical instruments, welding of dressings and bandages, welding of baby hygiene products, female hygiene products, paper diapers, etc |
| Lighting industry | lighting plastic welding |
| Telecommunications industry | cable and plug welding, electronic instrument welding, outer shell welding, sensor and switch welding, etc |
| Electronic products | recording, cassette case and core wheel, disk shell, mobile phone panel, rectifier transformer, switch socket, remote control, electronic mosquito bat, imitation bottle cap, etc. |
| Consumables industry | printing consumables welding, communication equipment welding, computer peripheral equipment welding |
| Household appliances | electronic clock, electric blower, steam iron water tank, electric kettle air Xiang, computer, etc. |
| Daily necessities | writing case, aquarium ruler, folder seam and shell, pen holder, cosmetics box shell, toothpaste tube sealing end, makeup mirror, thermos, lighters, flavoring bottles, and other sealed containers. |
| Automotive industry | car interior welding, lamp welding, engine room welding, functional parts welding, etc |
| Food processing | beverage soft packaging welding, PET material packaging welding, film packaging welding, paper cup & top cover welding |
| Stationery toys | children's plastic toys, writing cases, file bags, etc |
| Textile and clothing | plastic cutting, edge sealing, etc |
