Terminal Welding Ultrasonic Wire Bonding Machine 20KHz

Ultrasonic Wire Bonding Machine For Wire Terminal Welding

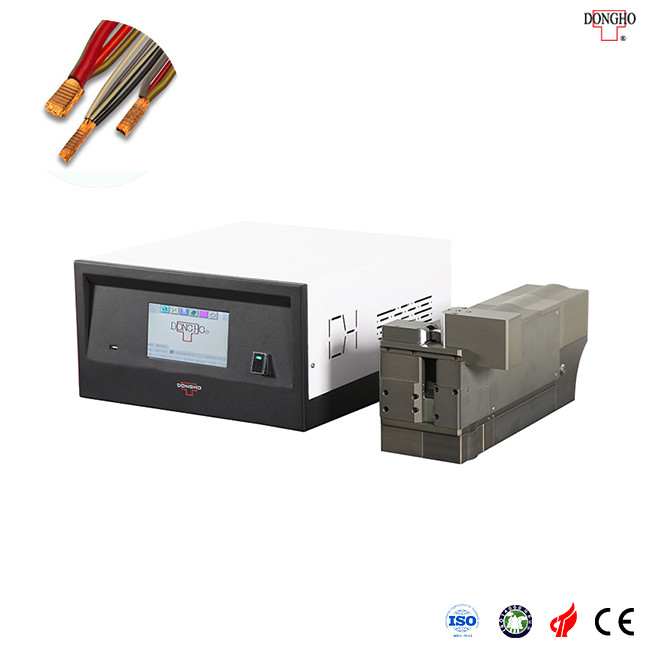

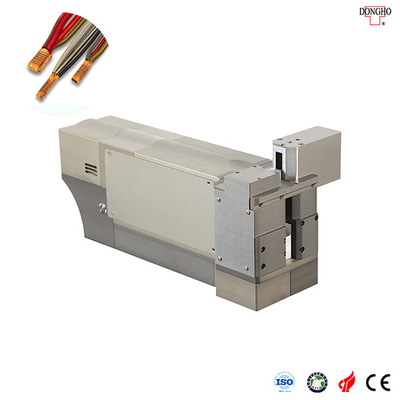

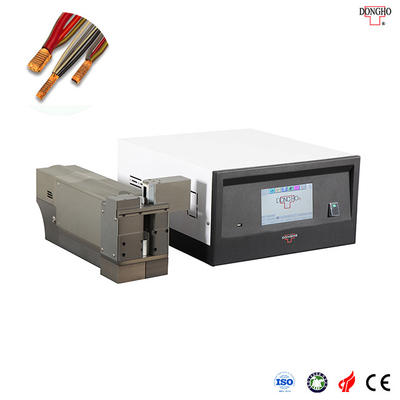

20kHz 4800W Ultrasonic Wire Bonding Machine For Wire Terminal Welding

Technical Parameters:

Unique Features:

* The 6th generation iQS operation system, multi-level password protection with hierarchical authorization;

* Supportable to MES, DPS, and PC configuration for real-time data management;

* Profiling of the welding process;

* Built-in scanning port supporting four brands of scanning guns for data traceability;

* Available for different welding modes;

* Applicable to copper and aluminum stranded wires welding;

* Welding parameters record and QA diagnosis and control;

* Multiple functions available for integration of an automatic production line;

* Low impedance and high resistance to corrosion.

Advantages of Ultrasonic Metal Bonding Technology

1. Ultrasonic metal welding has low pressure, low energy consumption, and can weld dissimilar metal materials.
2. Metal ultrasonic welding machines can be spot welding, continuous welding. The welding speed is very fast. In the use of the scope, even different materials, physical properties of metal, can also be welded;
3. Ultrasonic metal welding solder joints have high strength, good stability, and high fatigue resistance
4. There is no need to use water cooling and gas protection in the welding process, and the welder basically has no deformation. After welding, the workpiece does not need annealing and other heat treatment. The ultrasonic metal welding process itself includes the crushing and cleaning of the oxide layer on the surface of the welded parts. After welding, the workpiece surface is clean and beautiful, and it is not necessary to clean up after welding like other welding methods.
5. Metal ultrasonic welding without welding rod. There is no electricity in the welding area. The metal to be welded is not heated directly. Welding the same workpiece metal, compared with electrode arc welding, gas welding, energy consumption is much less.
6. There is no need to add flux. Does not pollute the processed material, does not produce any welding slag, sewage, harmful gas, and other waste pollution, so it is an energy-saving and environmental protection welding method.

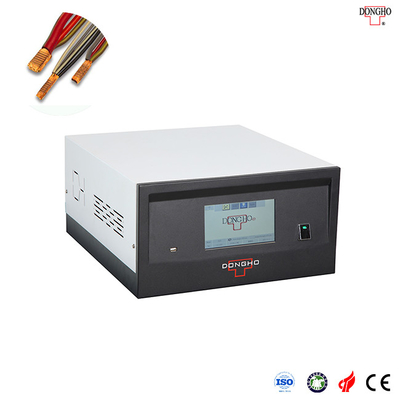

7. As the ultrasonic generator is a power electronic circuit, it is easy to achieve electrical control, and can be well-matched with the computer for welding control, so as to achieve high precision welding, and easy to achieve welding information and automation.

Application:

Ultrasonic metal welding is provided worldwide as an ideal platform for an extensive battery-related application, and its quality control is realizable by evaluating/monitoring the welding parameters for workmanship.
