Product Details:
|
| Product Name: | Ultrasonic Wire Bonding Machine | Frequency: | 20KHz |
|---|---|---|---|
| Power Range: | <=4800W | Welding Force: | 1200 Newton Max. |
| Control Voltage: | 24V | Welding Stroke: | 30mm |
| Cross Section Wire: | 0.35mm²-75mm² | Application: | Metal Spot Soldering Bonding |
| High Light: | 20kHz Ultrasonic Wire Welder,4800W Ultrasonic Wire Welder,Ultrasonic Spot Soldering Machine |
||

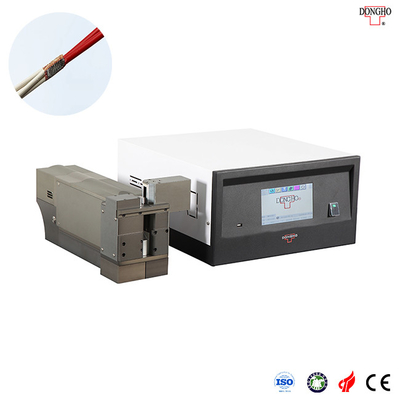

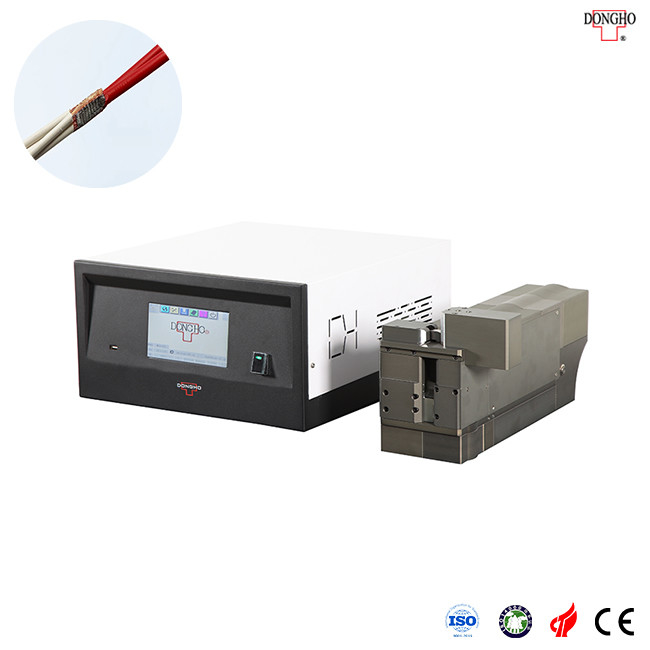

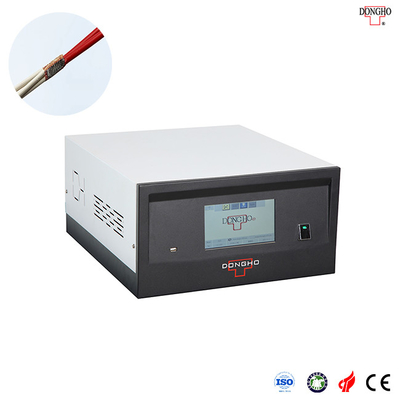

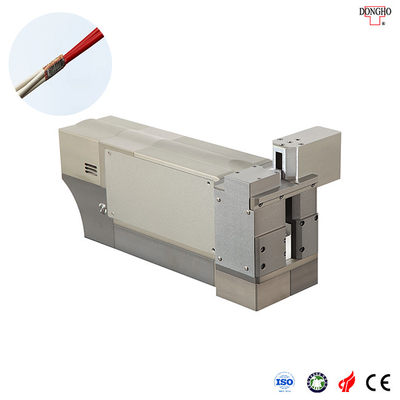

Ultrasonic Wire Welder For Metal Bonding Spot Soldering 20kHz 4800W
Technical Parameters:
| Model | TH-M |
| Product Name | Ultrasonic Spot Soldering Machine |
| Frequency | 20KHz |
| Power | 2400W, 3600W, 4800W, 6000W |
| Welding Force | 1200 Newton Max. |
| Control Voltage | 24V |
| Welding Stroke | 30mm |
| Cross Section Wire | 0.35mm²-75mm² |
| Wire Type | Copper(Cu) , Aluminium(Al) , Tin Coated , Enamel Coated |
Unique Features:
* The 6th generation iQS operation system, multi-level password protection with hierarchical authorization.
* Supportable to MES, DPS, and PC configuration for real-time data management.
* Profiling of the bonding process
* Built-in scanning port supporting four brands of scanning guns for data traceability.
* Available for different bonding modes
* Applicable to copper and aluminum stranded wires bonding.
* Bonding parameters record and QA diagnosis and control.
* Multiple functions available for integration of an automatic production line.
* Low impedance and high resistance to corrosion.
Advantages of Ultrasonic Metal Soldering Technology:
1, Good electrical conductivity after bonding, very low or almost zero resistivity;
2, The ultrasonic metal soldering machine is close to cold processing, the workpiece is not annealing, no oxidation trace;
3, High fusion strength;
4, Ultrasonic metal soldering machine for welding metal surface requirements are low, oxidation and electroplating can be welded;
5, Ultrasonic metal wire welders do not need any flux, gas, solder, welding time is short;
6, The welding process does not need water cooling and gas protection, welding parts do not deformation.
