Product Details:
|
| Product Name: | Ultrasonic Metal Spot Bonding Machine | Keyword: | Wire Bonding Soldering |
|---|---|---|---|
| Frequency: | 20KHz | Power Range: | <=3600W |
| Welding Force: | 1200 Newton Max. | Control Voltage: | 24V |
| Welding Stroke: | 30mm | Cross Section Wire: | 0.35mm²-75mm² |
| High Light: | Ultrasonic Copper Wire Bonding Machine,Wire Bonding Machine 20KHz |
||
Ultrasonic Copper Wire Bonding Machine For Metal Welding Spot Soldering 20KHz

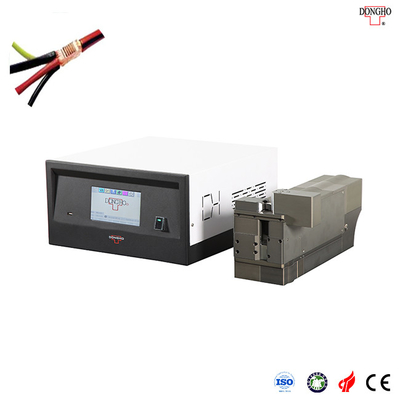

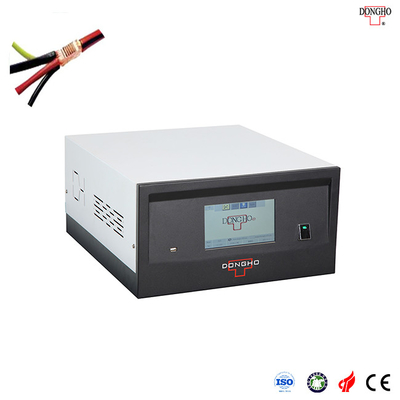

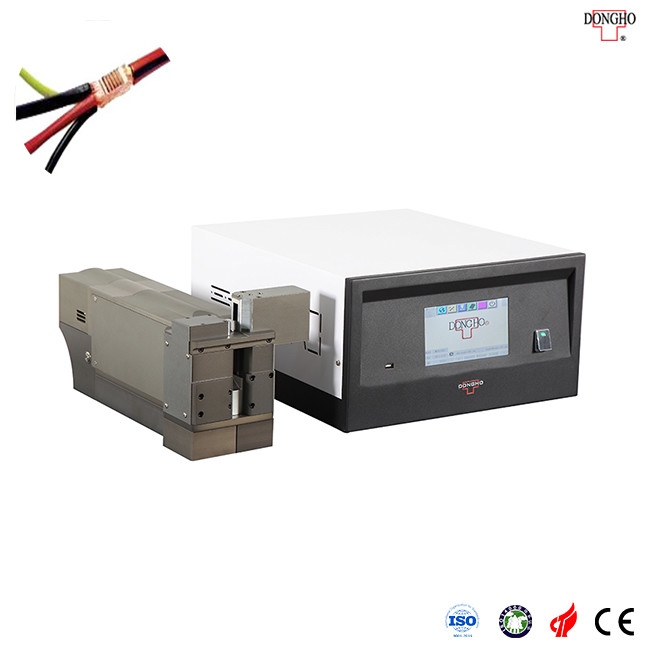

20kHz 3600W Ultrasonic Copper Wire Bonding Machine
The ultrasonic copper wire bonding machine is a mechanical process, no current flows through the workpiece, so the metal conductivity is not affected. The metal surface is generally attached with pollutants and oxide layer, the use of ultrasonic wire harness welding, without prior treatment of the metal surface, ultrasonic vibration can directly crush the attachment after removal. Another important advantage of ultrasonic wire harness bonding is the long workpiece life.
Technical Parameters:
| Model | TH-M |
| Frequency | 20KHz |
| Power Range | <=3600W |
| Welding Force | 1200 Newton Max. |
| Control Voltage | 24V |
| Welding Stroke | 30mm |
| Cross Section Wire | 0.35mm²-75mm² |
| Wire Type | Copper(Cu) , Aluminium(Al) , Tin Coated , Enamel Coated |
Features of the Ultrasonic Copper Wire Bonder:
* The 6th generation iQS operation system, multi-level password protection with hierarchical authorization.
* Supportable to MES, DPS, and PC configuration for real-time data management.
* Profiling of the welding process
* Built-in scanning port supporting four brands of scanning guns for data traceability.
* Available for different welding modes
* Applicable to copper and aluminum stranded wires welding.
* Welding parameters record and QA diagnosis and control.
* Multiple functions available for integration of an automatic production line.
* Low impedance and high resistance to corrosion.
Advantages of the Ultrasonic Spot Soldering Technology:
1, Good electrical conductivity after soldering, very low or almost zero resistivity;
2, The ultrasonic metal soldering machine is close to cold processing, the workpiece is not annealing, no oxidation trace;
3, High fusion strength;
4, Ultrasonic metal soldering machine for welding metal surface requirements are low, oxidation or electroplating can be welded;
5, Ultrasonic metal welding machine welding time is short, do not need any flux, gas, solder;
6, The bonding process does not need water cooling and gas protection, welding parts do not deformation.
Applications:
Ultrasonic metal spot soldering machine is used in a wide range: car lights, instrument panels, auto parts, audio speaker network, water tank, instrument panel, intake manifold, air filter cover, brake fluid box, airbag cover, instrument panels, electrical, medical, household appliances, toys, and other friction welding, etc.
