Product Details:
|
| Product Name: | Ultrasonic Metal Sealing Equipment | Keyword: | Copper Wire Welding |
|---|---|---|---|
| Frequency: | 20KHz | Power Range: | <=3600W |
| Welding Force: | 1200 Newton Max. | Control Voltage: | 24V |
| Welding Stroke: | 30mm | Cross Section Wire: | 0.35mm²-75mm² |
| High Light: | Ultrasonic Metal Sealing Equipment,Ultrasonic Copper Wire Welding,3600W Ultrasonic Metal Welder |
||

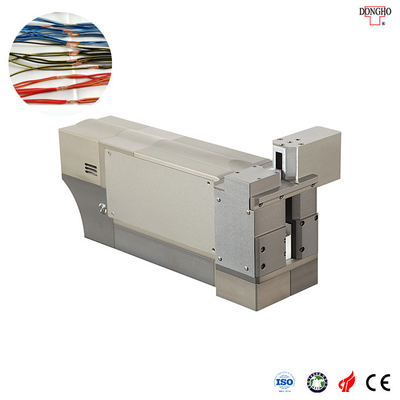

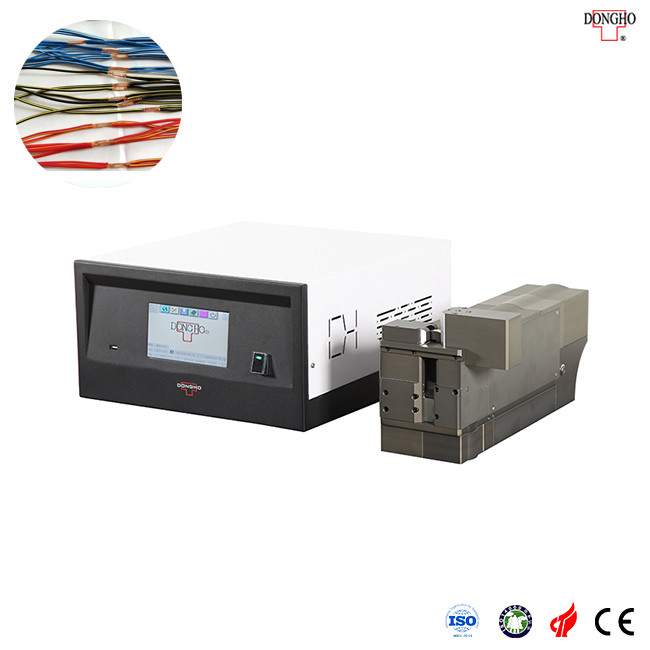

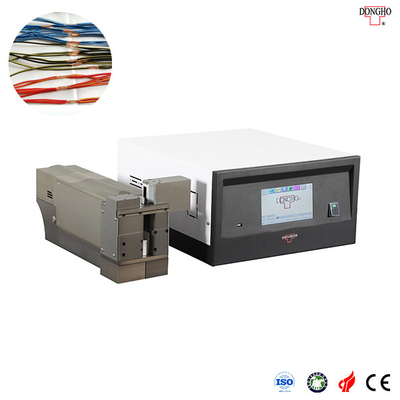

20kHz 3600W Ultrasonic Metal Sealing Equipment For Copper Wire Welding
The ultrasonic metal sealing equipment is a special method to connect the same metal or dissimilar metal by using the mechanical vibration energy of ultrasonic frequency. Metal in ultrasonic welding, neither to the workpiece transmission current nor to the workpiece with the high-temperature heat source, only under static pressure, the mechanical energy into internal energy, deformation energy, and limited temperature rise. Solid-phase welding occurs when two base materials reach recrystallization temperature.
When Using the ultrasonic metal welding machine to weld aluminum, there is no flux, no spark, arc, smoke, high conductivity, short welding cycle, simple operation. The ultrasonic metal sealing equipment is with small volume, and easy to use.
Features:
* The 6th generation iQS operation system, multi-level password protection with hierarchical authorization.
* Supportable to MES, DPS, and PC configuration for real-time data management.
* Profiling of the welding process
* Built-in scanning port supporting four brands of scanning guns for data traceability.
* Available for different welding modes
* Applicable to copper and aluminum stranded wires welding.
* Welding parameters record and QA diagnosis and control.
* Multiple functions available for integration of an automatic production line.
* Low impedance and high resistance to corrosion.
Technical Parameters:
| Model | TH-M |
| Frequency | 20KHz |
| Power | 2400W, 3600W, 4800W, 6000W |
| Welding Force | 1200 Newton Max. |
| Control Voltage | 24V |
| Welding Stroke | 30mm |
| Cross Section Wire | 0.35mm²-75mm² |
| Wire Type | Copper(Cu) , Aluminium(Al) , Tin Coated , Enamel Coated |
Application:
1, Electronic components lead patch thick film resistance, patch inductor, relay, electromagnetic switch, fuseless switch, connector, diode lead: electrolytic capacitor pole ear, transformer.
2, Wire mutual fusion, partial formation of a and a plurality of mutual fusion, wire harness welding.
3, All kinds of household appliances, automotive supplies of the large cooling seat, heat exchange fin, honeycomb heart-melting.
4, NiMH battery: nickel mesh and nickel sheet interesting.
5, Auto parts: airbag wiring harness, collector ring.
6, Lamps and lanterns: filament, lamp cover.
