Product Details:
|
| Product Name: | 2600W Ultrasonic Welding Generator KM-SS | Dimension:: | L340mm×W210mm×H94mm |
|---|---|---|---|
| Net Weight:: | 4Kg | Output Power:: | 0-2600W |
| Output Voltage:: | 0-3000V AC | Working Frequency:: | 19.01KHz-20KHz |
| Power Supply:: | AC220V 50Hz | Warranty: | 1 Year |
| Welding Time: | 0.01-9.99S/Time | ||
| High Light: | 2600W 20Khz Ultrasonic Generator,4KG Ultrasonic Welding Generator,20Khz Ultrasonic Welding Generator |
||
20Khz 2600W Ultrasonic Continuous Welding Generator
The ultrasonic welding generator converts mains voltage into high-frequency high voltage and transfers this to the welding stack, which is made up of the converter, the booster (amplitude transformation unit), and the sonotrode (welding tool).
The ultrasonic generator is economical but powerful and high adaptability for fabric continuous welding, especially in face mask welding machines. The 20Khz 2600W ultrasonic welding generator is a major part of the ultrasonic welding machine, which is not only quick and efficient but also extremely eco-friendly for processing thermoplastics, films, and fabrics.
More details can be found in the following parameters.
Technical parameters:
| Product Name | 20Khz Ultrasonic Welding Generator |
| Dimension: | L90mm×W320mm×H230mm |
| Net Weight: | 4Kg |
| Output power: | 0-2600W |
| Output voltage: | 0-3000V AC |
| Ambient temperature: | +5°C - +50°C |
| Harmonic Sinusoidal rate ≥97% | |
| Input power factor ≥80% | |
| Working frequency: | 20KHz |
| Power supply: | AC220V 50Hz |
| Horn frequency scope: | ±400HZ(take 15KHZ as an example, the horn frequency can be 14.40-15.20KHZ, auto-tuning) |
| Auto-tuning accuracy: | ±5HZ |
| Power fluctuation: | ≤ 5% |
| Remote terminal dynamic response time: | ≤10ms |
| Over-current protection: | 15A |
Features:
* Real-time frequency automatic tracking function
* Mold impedance analysis + protection
* 485 communication port
* Amplitude compensation function
* The generator has overload protection
* Transducer voltage protection
Our Advantages:

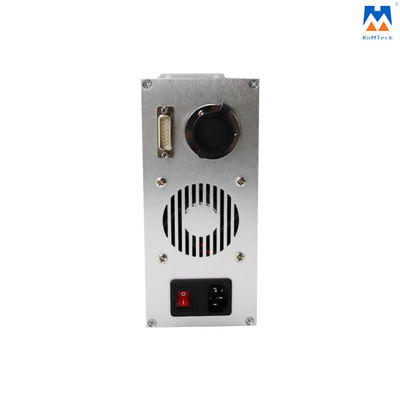

1. Vents on both sides can better dissipate the generator box heat and ventilate, effectively prolonging the generator's life.
2. High precision PWM, digital adjustment can be set on the panel of the generator.
3. The power socket is clearly marked and easy to use.
For more details, welcome to visit our generators catalog below:
Catalog of KnmTech Ultrasonic Generators.pdf
Application:
| Automotive | Automotive bumper repair welding, cotton insulation doors, seat wipers, engine cover, radiator cap spot, etc |
| Electronics | Switches and sockets, remote control, electronic swatter, pseudo-imitation caps, etc |
| Home appliances | Balance ring, electronic clock, computer, etc |
| Toy | plastic toys, plastic gifts, etc |
| Packaging | Corrugated tray, zip lock welded, etc |
| Medical | Testing Equipment, filters, insulated trays..etc. |

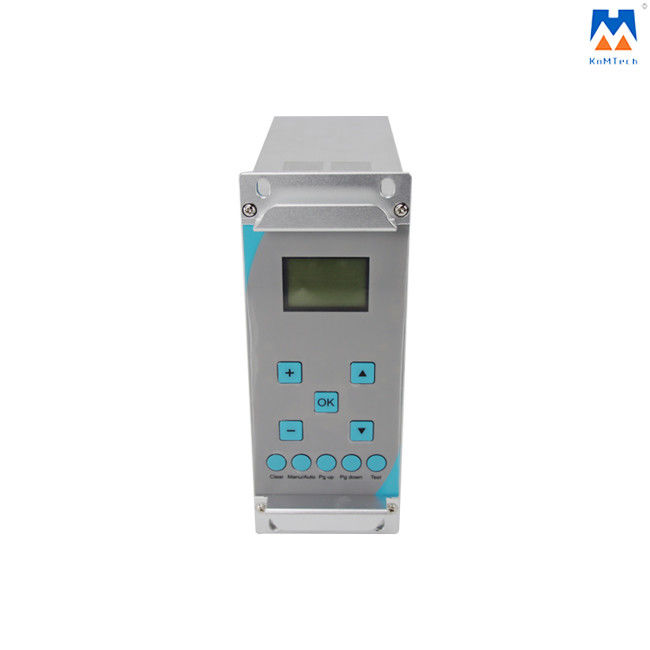

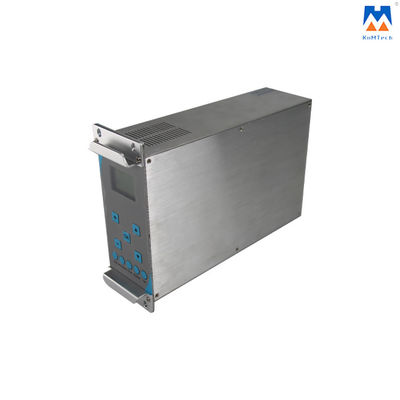

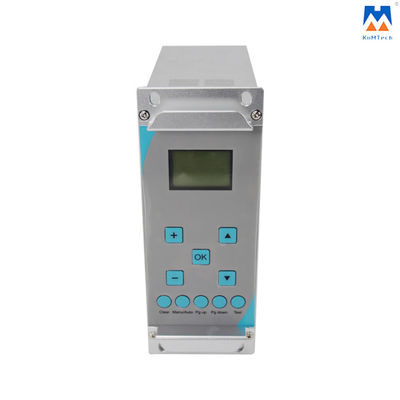

Detailed Photos:
