Product Details:
|
| Product Name: | Fabric Ultrasonic Welding Generator | Output Power: | 800-2600W |
|---|---|---|---|
| Power Supply: | AC220V 50Hz | Power Fluctuation: | ≤ 5% |
| Usage: | Plastic Welding,Ultrasonic Plasitc Welder For ABS PP PE PC Material,ultrasonic Welding | Frequency: | 15KHz/20KHz/28KHz/30KHz/35KHz/40KHz |
| Dimensions(L*W*H): | 400mm*195mm*98mm | After-sales Service Provided: | Online Support,Video Technical Support |
| Warranty: | 1 Year | Application: | Standard Ultrasonic Plasitc Welder,Ultrasonic Welding Machine,Non Woven Sealing |
| High Light: | AC220V piezoelectric ultrasonic generator,15KHz Ultrasonic Generator,KnMTech ultrasonic power generator |
||
15KHz 2600W Standard Digital Ultrasonic Welding Generator For Non-Woven Fabric Welding
This is the standard Keypress type digital ultrasonic welding generator, which developed 5 years ago and has proved very stable quality in the market. 15KHz 2600W standard digital ultrasonic welding generator produced higher than 20KHz audio electrical signal, through the piezoelectric inverse effect of transducer converted into a mechanical oscillation of the same frequency, and in the form of super audio longitudinal wave radiation.
Ultrasonic electric box, usually called ultrasonic generator, ultrasonic power supply. The function is to convert our mains electricity (220V or 380V, 50 or 60Hz) into high-frequency AC electrical signals that match the ultrasonic transducer. The ultrasonic frequencies commonly used in ultrasonic equipment are 20KHz, 25KHz, 28KHz, 33KHz, 40KHz and 60KHz
Technical parameters:
|
Model |
Frequency |
Power |
Frequency Range |
Voltage |
Air source |
|
KM-QD-G1526/G1530/G1540(H) |
15kHz |
2600w/3000w/4000w |
14.40-15.20kHz |
220V+-10% |
filtered clean air |
|
KM-QD-G2020/G2030(H) |
20kHz |
2000w/3000w |
19.40-20.20kHz |
220V+-10% |
|
|
KM-QD-G3010(H) |
30kHz |
1000w |
29.30-30.30kHz |
220V+-10% |
|
|
KM-QD-G3510(H) |
35kHz |
1000w |
34.20-35.40kHz |
220V+-10% |
|
|
KM-QD-G4080(H) |
40kHz |
800w |
39.20-40.40kHz |
220V+-10%
|
Features:
|
* Real time frequency automatic tracking display |
|
* Welding modes: time, energy and grounding |
|
* Amplitude division function |
|
* Welding amplitude 10%--100% adjustable (1% accuracy) |
|
* Amplitude compensation |
|
* Mold impedance analysis+protection |
|
* Overload protection |
|
* Voltage protection (input) |
|
* Transducer voltage protection |
|
* 485communication port |
|
* 4-core 32 bit processor |
Application:
|
Automotive |
Auto and motorcycle plastic parts,battery, glove box, Plastic fuel tank, Intake manifold, Plastic muffler, Expansion Tank, front corner lamp etc. |
|
Electronics |
recording, audio tape boxes and core wheel, disk enclosure, etc |
|
Home appliances |
Balance ring, electronic clock, electric trumpeter hair dryer, steam iron water tank, etc |
|
Toy |
plastic toys, water guns, aquatic life video game, etc |
|
Packaging |
Plastic pallet, Corrugated tray, etc |
|
Medical |
Surgical Instruments,Testing Equipment, filters, I-V units, insulated trays..etc. |

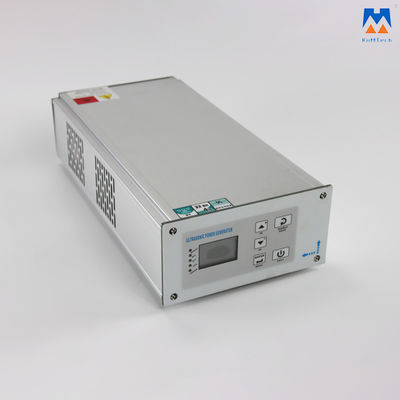

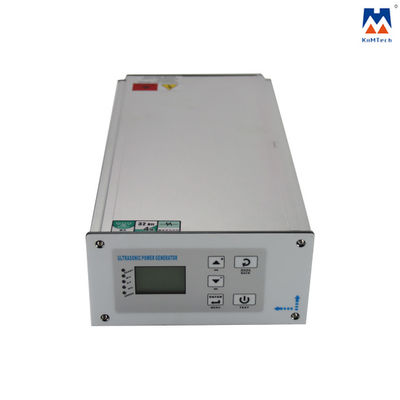

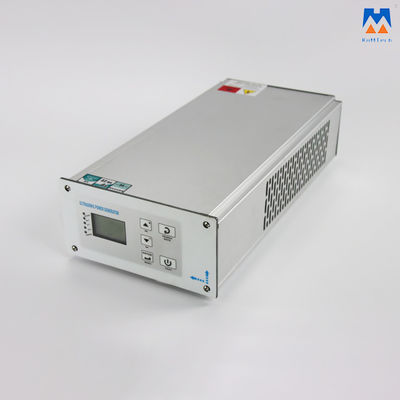

Detailed photos:
