Product Details:
|
| Product Name: | Ultrasonic Generator For Non-woven Fabric Welding | Frequency: | 15KHz |
|---|---|---|---|
| Output Power: | 2600W | Voltage: | 220V/110V±10% 50/60Hz |
| Power Fluctuation: | ≤ 5% | Usage: | Ultrasonic Welding,Non-woven Fabric Welding |
| After-sales Service Provided: | Online Support,Video Technical Support | Warranty: | 1 Year |
| High Light: | 15Khz Analog Type Ultrasonic Generator,15Khz Ultrasonic Welding Generator |
||
15Khz Analog Type Ultrasonic Welding Generator Ultrasonic Power Supply for Non-woven Fabric Welding
The ultrasonic welding generator can generate high power and high-frequency alternating current to match the ultrasonic transducer. Ultrasonic generators can be divided into self-excited and separate-excited generator boxes. The ultrasonic generator converts 50/60 Hz current into 15, 20, 30,35, or 40 kHz power. And the converted high-frequency energy is matched to the corresponding transducer, which converts it again into mechanical motion at the same frequency.
This is our analog-type ultrasonic welding generator for non-woven fabric making machine, paper cup sealing machine, three layers bag making machine, medical cloths making machine, economical but powerful and stable, especially in N95 face mask welding machine and has been proved very stable quality in the market.
Technical parameters:
| Product Name | 15Khz Ultrasonic Generator for Fabric Welding |
| Dimension | Length 455mm×Width 460mm×Height 170mm |
| Net weight Of Main Body | 14 Kg |
| Frequency Range | 14.40-15.20kHz |
| Output Power | 1000W-2600W |
| Voltage | 220V+-10% |
| Welding Mode | 220V+-10% |
| Protection | Welding electrode impedance analysis +protection |
| Voltage protection | |
| Transducer voltage protection | |
| Welding Time | 0.00s-9.99s |
| Working Frequency (options) | 15KHz |
| Welding Amplitude | adjustable 10%-100% (1% accuracy) |
| Air source | purified air with a particle diameter of less than 5μm, 7kgf/cm2 |
Specifications:
| Model | Frequency | Power | Frequency Range | Voltage | Type of welding |
| KM-ME-1526 | 15kHz | 2600w | 14.40-15.20kHz | 220V+-10% | intermittent |
| KM-ME-1526 | 15kHz | 2600w | 14.40-15.20kHz | 220V+-10% | continuous |
| KM-ME-2015 | 20kHz | 1500w | 19.40-20.20kHz | 220V+-10% | continuous |
| KM-ME-2018 | 20khz | 1800w | 19.40-20.20kHz | 220V+-10% | intermittent |
Features:
* This analog ultrasonic generator has high stability
* Low power consumption
* Good heat dissipation
* Large amplitude adjustable
* Economical but powerful
* No need for screws, glue, and chemical
* Low Cost and reduce labor cost
For more details about our generators, you can visit our generator's catalog below:
Catalog of KnmTech Ultrasonic Generators.pdf
Application:
Non-woven fabric making machine
Paper cup sealing machine
Three layers mask making machine
medical cloths making machine
Toys making machine

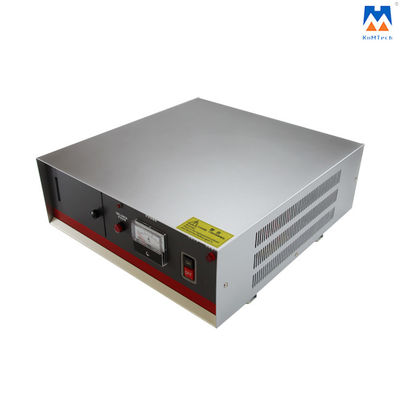

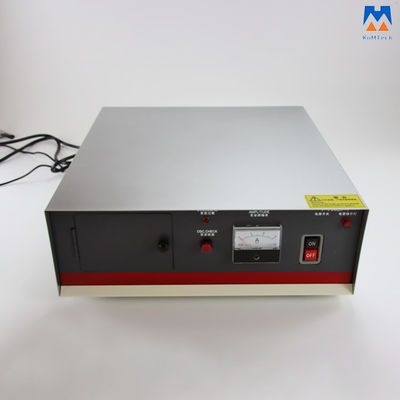

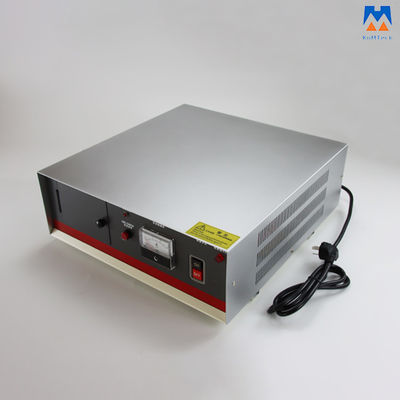

Detailed Photos:
