Product Details:
|
| Product Name: | 20KHz 2600W Ultrasonic Welding Generator KM-SS | Output Power:: | 0-2600W |
|---|---|---|---|
| Power Supply:: | AC220V 50Hz | Horn Frequency Scope:: | ±400HZ |
| Output Voltage:: | 0-3500V AC | Dimension:: | L340mm×W210mm×H94mm |
| After-sales Service Provided: | Online Support,Video Technical Support | Usage: | Non-woven Fabric Welding |
| High Light: | 4KG Ultrasonic Welding Generator,15A 20KHz Ultrasonic Welding Generator,4KG 20khz ultrasonic generator |
||
20KHz 2600W Ultrasonic Welding Generator Power Supply Non-Woven Fabric Welding
Technical parameters:
| Product Name: | 2600W Ultrasonic Welding Generator |
| Dimension: | L320mm×W210mm×H90mm |
| Net Weight: | 4Kg |
| Output power: | 0-2600W |
| Output voltage: | 0-3000V AC |
| Ambient temperature: | +5°C - +50°C |
| Harmonic Sinusoidal rate ≥97% | |
| Input power factor ≥80% | |
| Working frequency: | 15 KHz/20KHz/28KHz/30KHZ/35KHz/40KHz |
| Power supply: | AC220V 50Hz |
| Horn frequency scope: | ±400HZ(take 15KHZ as an example, the horn frequency can be 14.40-15.20KHZ, auto-tuning) |
| Auto-tuning accuracy: | ±5HZ |
| Power fluctuation: | ≤ 5% |
| Remote terminal dynamic response time: | ≤10ms |
| Over-current protection: | 15A |
Features:
1. Specialized in high power ultrasonic for more than ten years
2. Every generator with 24hours old testing before shipment.
3. Good packing, no packing problem during the 10 years exporting business.
4. Every customer will get purchase records and there are certain rewards after accumulation.
The 20kHz ultrasonic generator is mostly used on non-woven product machines and some clothing accessories processing machinery and equipment, such as non-woven mask machines, medical mask machines. The generator can compete with internationally famous brands in quality, and the price is very competitive compared with other famous brands in the world.
Usage:
widely used in the ultrasonic welding of face masks, non-woven bags, surgical clothing, and Non-woven folding filter element.
For more details about our ultrasonic generator, welcome to check our catalog below:
Catalog of KnmTech Ultrasonic Generators.pdf
Why Choose Us?
1. Well-experienced R&D Engineer:
If you have any technical questions, please don't hesitate to contact us
2. Efficient Working Team:
We have a mature, efficient, and well-cooperated team.
3. Reliable Production Line:
Our production line is stable and trustworthy
4. Competitive price:
We promise to give you the most competitive price
5. Customized Product Service:
If you have other customized requirements, please communicate with us for further details.

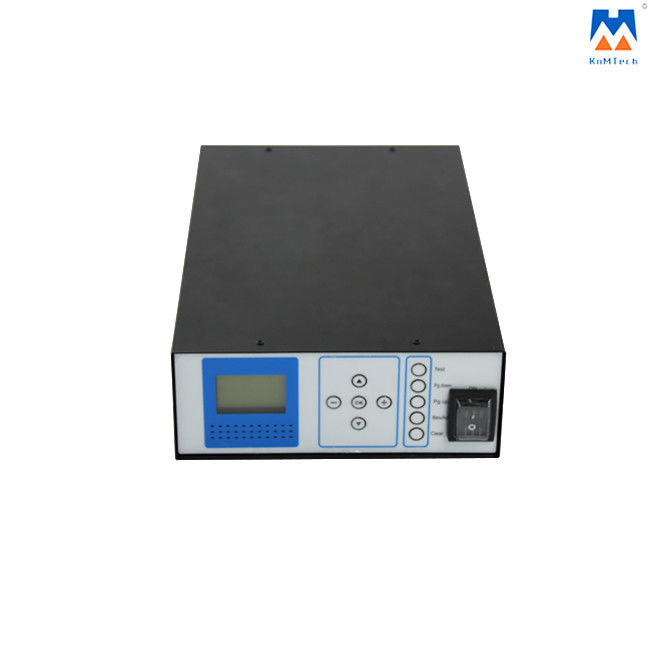

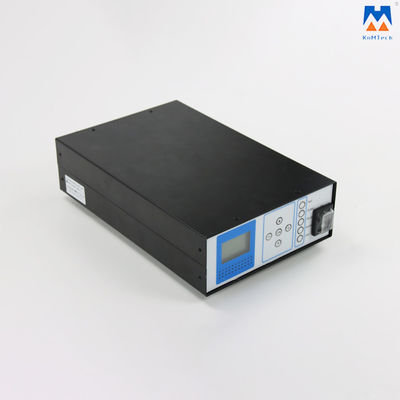

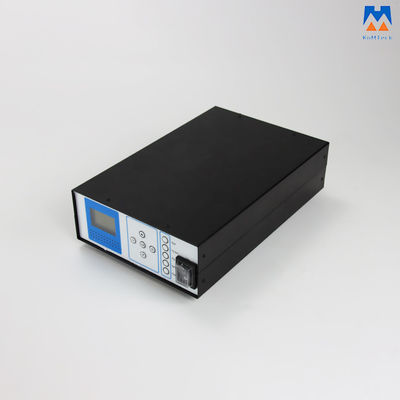

Detailed Photos:
