Product Details:
|
| Product Name: | 15KHz Ultrasonic Welding Generator KM-QD | Output Power: | 0-2600w |
|---|---|---|---|
| Power Supply: | AC220V 50Hz | Power Fluctuation: | ≤ 5% |
| Usage: | Plastic Welding,Ultrasonic Plasitc Welder For ABS PP PE PC Material,ultrasonic Welding | Frequency: | 15KHz/20KHz/28KHz/30KHz/35KHz/40KHz |
| Warranty: | 1 Year | Welding Time: | 0.01-9.99S/Time |

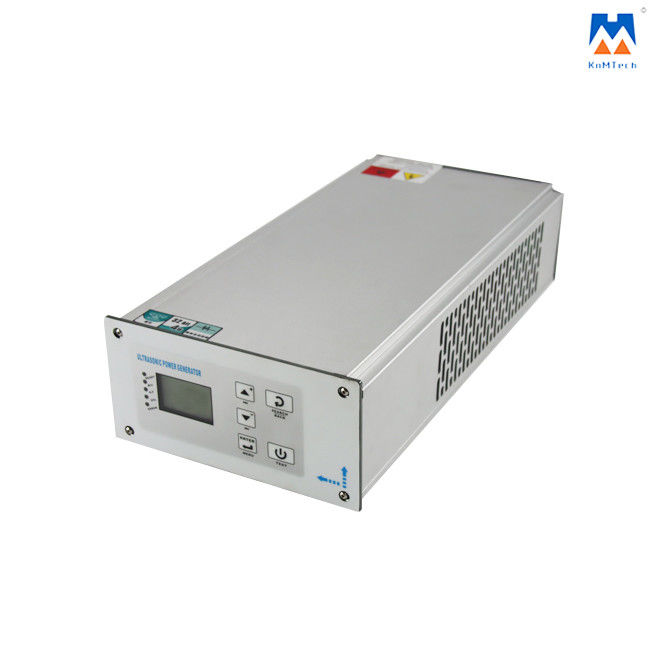

2600W Digital Ultrasonic Welding Generator
This is the 15KHz 2600W standard digital ultrasonic welding generator, which developed 5 years ago and has proved very stable quality in the market. 15KHz 2600W standard digital ultrasonic welding generator produced higher than 15kHz audio electrical signal, through the piezoelectric inverse effect of transducer converted into a mechanical oscillation of the same frequency, and in the form of super audio longitudinal wave radiation.
Digital ultrasonic generator adopts the advanced microcomputer control technology and new circuit geometry, you can adjust the ultrasonic frequency, timer, and power according to your request on the panel, making it more convenient and easy to operate compared with traditional analog type generators.
Technical parameters:
| Model | Frequency | Power | Frequency Range | Voltage | Air source |
| KM-QD-G1526/G1530/G1540(H) | 15kHz | 2600w/3000w/4000w | 14.40-15.20kHz | 220V+-10% | filtered clean air |
| KM-QD-G2020/G2030(H) | 20kHz | 2000w/3000w | 19.40-20.20kHz | 220V+-10% | |
| KM-QD-G3010(H) | 30kHz | 1000w | 29.30-30.30kHz | 220V+-10% | |
| KM-QD-G3510(H) | 35kHz | 1000w | 34.20-35.40kHz | 220V+-10% | |
| KM-QD-G4080(H) | 40kHz | 800w | 39.20-40.40kHz |
220V+-10% |
Features:
* Frequency automatic tracking & frequency sweeping
* Adjust amplitude output to control power output.
* Different working modes are available(such as time mode, pressure mode, manual mode).
* High stability: The ultrasonic welding generator has all-digital integrated circuits, using US imports of processors interference, simplifying the hardware structure, improving the reliability of the system.
* Strong output: With the use of IGBT power modules plus his excited oscillation circuit structure, the output power is more than 1.5 times that of the conventional self-excited circuit.
* Amplitude step-less adjustment: Amplitude setting range from 10% to 100%
Application:
| Automotive | Automotive manual welding jacket, the car door welded baffle welding, automobile, car mats welding, automotive bumper repair welding, cotton insulation doors, seat wipers, engine cover, radiator cap spot, etc |
| Electronics | Switches and sockets, remote control, electronic swatter, pseudo-imitation caps, etc |
| Home appliances | Steam iron water tank, electric kettle air-Hsiang, computer, etc |
| Toy | Aquatic life video game, children dolls, plastic gifts, etc |
| Packaging | Corrugated tray, hollow crate welding, zip lock welded, etc |
| Medical | Testing Equipment,filters,I-V units,insulated trays..etc. |

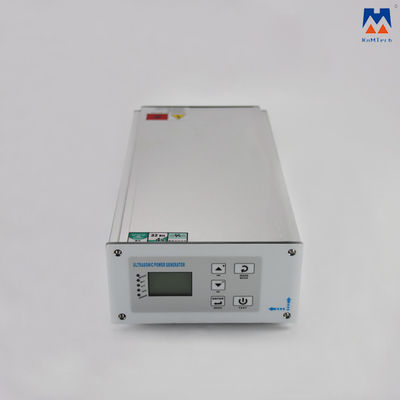

Detailed Photos:
Certification:
