Product Details:
|
| Product Name: | 2600W Portable Welder Generator | Frequency: | 15KHz |
|---|---|---|---|
| Frequency Tuning Method: | Auto Tuning | Output Power: | 0-2600W |
| Range Of Welding Time: | 0.05-10/Sec | Power Supply: | 220V/110V±10% 50/60Hz |
| Usage: | Non Woven Fabric Welding,Ultrasonic Welding | Warranty: | 1 Year |
| High Light: | 15KHz Ultrasonic Power Generator,15KHz 2600W Ultrasonic Welding Generator,2600W Touch Screen Ultrasonic Generator |
||

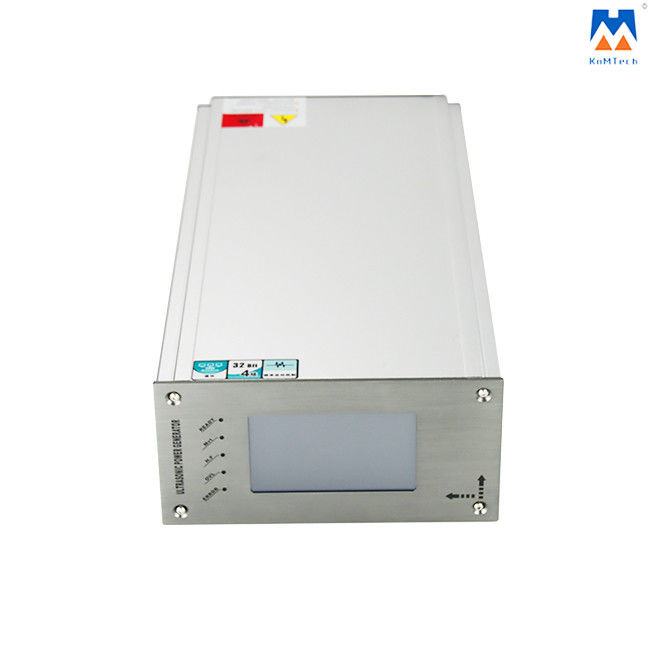

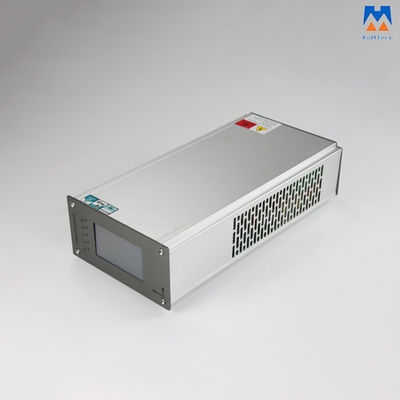

15KHz 2600W Digital Ultrasonic Welding Generator Power Supply With Auto Tuning Function
Technical parameters:
| Model | Frequency | Power | Frequency Range | Voltage | Air source |
| KM-QD-GPLC1526/1530/1540(H) | 15kHz | 2600w/3000w/4000w | 14.40-15.20kHz | 220V+-10% | Built-in PLC Control/ |
| KM-QD-GPLC2025/2030(H) | 20kHz | 2500w/3000w | 19.40-20.20kHz | 220V+-10% | plastic /Continuous Welding |
| KM-QD-GPLC3010(H) | 30kHz | 1000w | 29.30-30.30kHz | 220V+-10% | optional, horizontal and verticle type optional |
| KM-QD-GPLC3510(H) | 35kHz | 1000w | 34.20-35.40kHz | 220V+-10% | |
| KM-QD-GPLC4080(H) | 40kHz | 800w | 39.20-40.40kHz | 220V+-10% |
Features:
* Frequency automatic tracking & frequency sweeping;
* Adjust amplitude output to control power output;
* Different working modes are available(continuous mode, time mode, grounding mode, energy mode);
* High stability: All-digital integrated circuits, simplify the hardware structure, improving the reliability of the system;
* Amplitude step-less adjustment: Amplitude settings range from 10% to 100%.

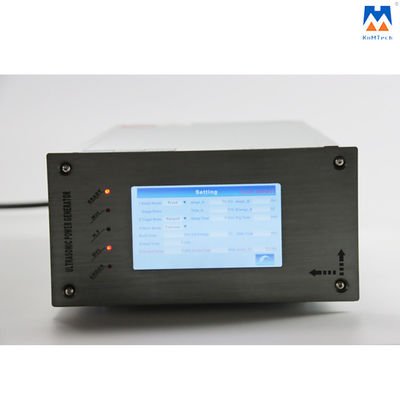

The PLC type digital ultrasonic generator with high-power ultrasonic technology program design adopts advanced microcomputer control technology and new circuit geometry. It has the frequency automatic tracking function and amplitude compensation function. The protection system of the generators includes overload protection, voltage protection, and transducer voltage protection. Using the touch screen, you can set the ultrasonic parameters according to your products easily. And ultrasonic welding results can ensure solidity, performance, appearance, and customer satisfaction.
Application:
|
Automotive |
car door welded baffle welding, automobile, car mats welding, automotive bumper repair welding, cotton insulation doors, engine cover, radiator cap spot, etc |
|
Electronics |
Switches and sockets, electronic swatter, remote control unit,etc |
|
Home appliances |
computer, electronic clock, electric kettle air-Hsiang, , etc |
|
Toy |
plastic toys, plastic gifts, etc |
|
Packaging |
Corrugated tray, hollow crate welding, zip lock welded, etc |
|
Medical |
Testing Equipment,filters,I-V units,insulated trays..etc. |
FAQ:
1. How about your delivery time?
Usually, we have some stock for trial or small orders, so just deliver them within 7 days, while, 15-25 days for large orders and customized production line.
1-2 units we could send by EXPRESS(DHL,UPS,FEDEX,TNT,EMS), heavyweight more than 50kg, we suggest to use sea freight LCL or by air
2. How can you guarantee we receive a good quality generator?
First, we have a serious inspection process team to control the quality, you can come to our factory to check and inspect the machine with your sample raw material.
Detailed Photos:
Warehouse:
Packing:
