Product Details:
|
| Product Name: | 1500W Ultrasonic Welding Generator | Frequency: | 30KHZ |
|---|---|---|---|
| Power: | 1500W | Welding Modes: | Time, Energy And Grounding |
| Trigger Mode: | Delay | Amplitude: | Welding Amplitude 10-100% Adjustable (1% Accuracy |
| High Light: | 500W 35KHZ Ultrasonic Power Generator,35KHz ultrasonic spot welder,500W Ultrasonic Power Generator |
||
1500W Digital Ultrasonic Welding Generator, Welding Power Supply For Spot Welding
Working Principle:
The 220V/50HZ power supply is converted into high-voltage electric energy by the ultrasonic welding generator, and the transducer is used to convert it into mechanical energy. The mechanical vibration is amplified by the two-stage rod and transferred to the processed object through the welding horn, and the air pressure is used to produce the effect of pressurized friction fusion on the workpiece contact surface, so as to achieve a good welding effect, no need of glue or any other adhesive things.
The digital ultrasonic welding generator designed according to human body engineering has three welding modes(time mode, energy mode, and continuous mode), and it has an automatic frequency tracking function, with an automatic overload protection function against the inaccurate operation, making the ultrasonic generator easy to use and operate.
Technical parameters:
| Product Name: | 30KHz Ultrasonic Welding Generator |
| Frequency: | 30KHz |
| Power: | 1500W |
| Language: | Chinese/English |
| Screen: | Two-inch LCD Touch Screen |
| Straight and Bending handguns are switchable freely | |
| Cooling System | |
| Real time frequency automatic tracking function | |
| Welding modes: | time, energy and continuous |
| Trigger mode: | delay |
| Voltage | 200-240VAC steady output |
| Amplitude: | Segmented amplitude function is available. Welding amplitude 10-100% adjustable (1% accuracy) |
| Compensation Function: | Amplitude/Frequency |
| Mold impedance analysis + protection | |
| Protection1 | Overload protection |
| Protection2 | Voltage protection (input) |
| Protection3 | Transducer voltage protection |
Features:
1. Two-inch LCD Touch Screen
2. Mold impedance analysis + protection
3. 485 communication port
4. Real time frequency automatic tracking function
5. Amplitude compensation function
6. Transducer voltage protection
7. The ultrasonic welding generator also has overload protection.
Application:
The ultrasonic welding generator can be used for spot welding with high energy and high efficiency.
FAQ:
1. What's the warranty of your generators?
One-year Warranty.
In this period factory will be responsible for repairing it for free or factory will send the new parts to customer instead of the broken parts for free.After warranty time,factory will repair it or send the new parts at the cost price.
2. How can I get your price and catalog?
Please E-mail us or call us to give your contact information(your name, email address, company name and website)
3. Can we agent your 35kHz generators in our country or city?
Of course.We are looking for sole agents who are willing to cooperate with us for long business term.
4. What are your terms of delivery?
EXW,FOB,CFR,CNF,CIF

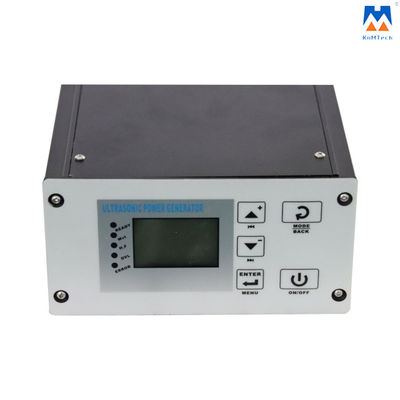

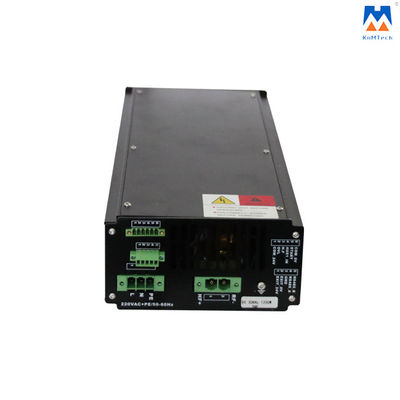

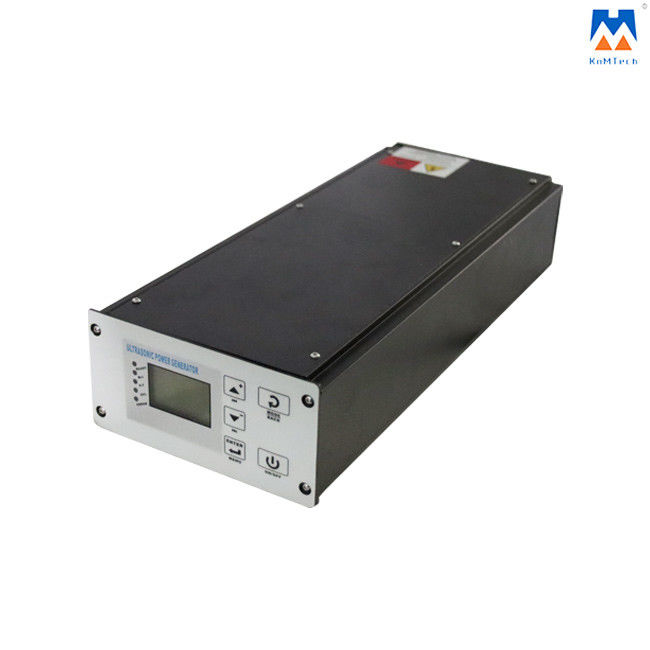

Detailed Photos:
Packing:
