35KHz Ultrasonic Spot Welder Ultrasonic Hand Welder

500W Auto Tuning Ultrasonic Hand Welder Spot Welder Non-woven Fabric Welding Plastic Welding

We launched a 500W auto-tuning ultrasonic hand welder with a new look and new circuit design.

Ultrasonic welding is a high-tech technology of sintered plastic products. The use of this technology can replace past production of flux, adhesives, buckles, or other mechanical fixation, thereby improving the production efficiency and reduce costs.

The principle of ultrasonic welding is through the ultrasonic generator to convert high-frequency electrical energy into higher frequency mechanical movement, then mechanical movement through a set of amplitude can be changed to the transmission device to the welding head. The welding head transmits the received vibration energy to the joint portion of the workpiece to be welded, in which the vibration energy is converted into heat energy by friction and the plastic is melted. Ultrasonic not only can be used to weld hard thermoplastics but also can process fabrics and films.

Technical parameters:

Features:

* Small size,

* Easy to carry

* Efficient and reliable welding stability

* Powerful, energy-saving

* Simple debugging, automatically frequency scan

* Software configured air-cooling function.

Application:

Our 500W auto-tuning ultrasonic hand welder can be used for non-woven bag making machine, paper cup sealing machine, three layers bag making machine, medical cloths making machine, plastic welding machine, plastic bag making machine, etc.

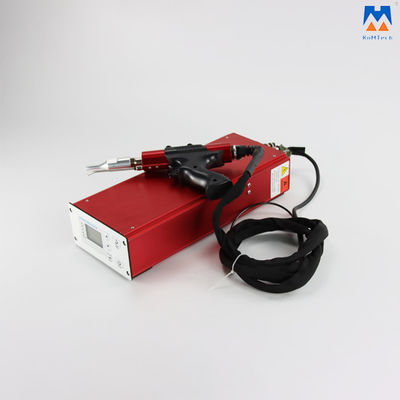

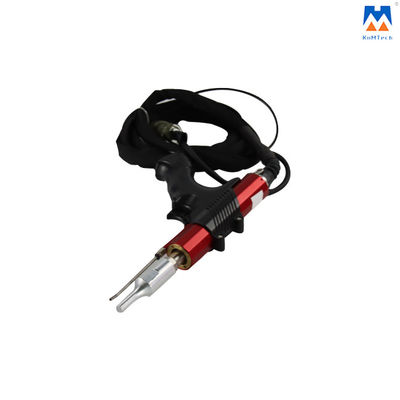

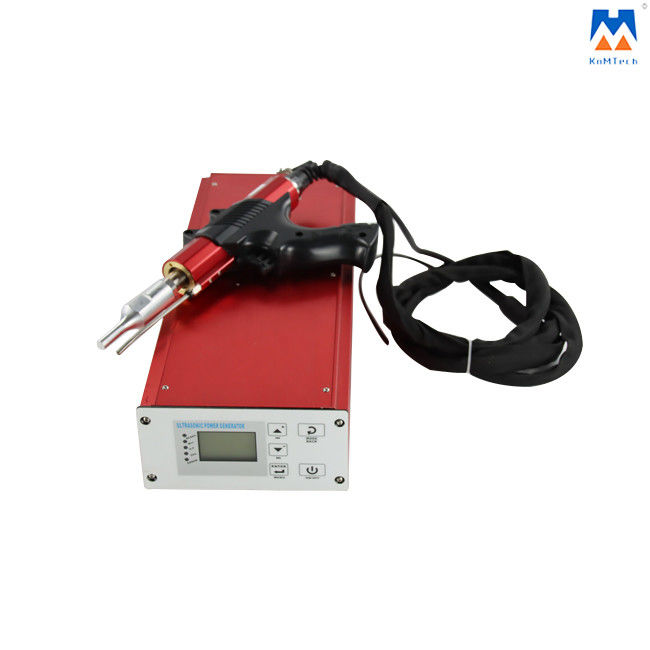

Detailed Photos:
