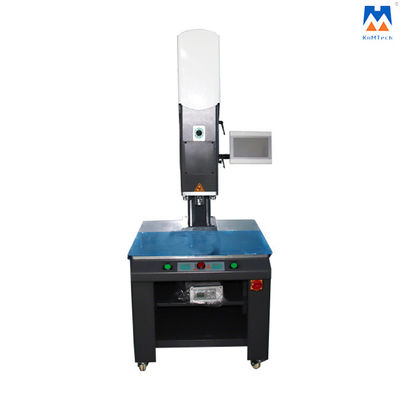

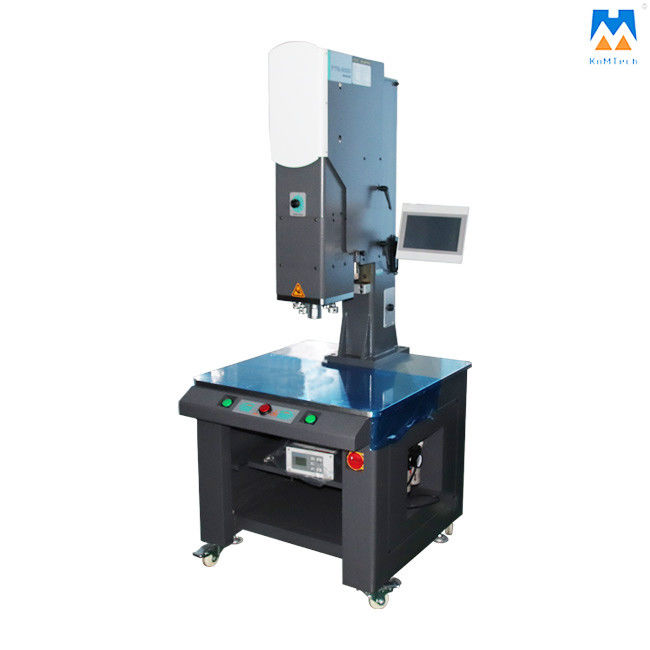

4200W Digital Ultrasonic Plastic Welding Machine Auto Tuning Frequency

4200W Digital Ultrasonic Plastic Welding Machine Auto Tuning Frequency

4200W Digital Ultrasonic Plastic Welding Machine Auto Tuning Frequency

4200W Digital Ultrasonic Plastic Welding Machine Auto Tuning Frequency

4200W Digital Ultrasonic Plastic Welding Machine Auto Tuning Frequency

4200W Digital Ultrasonic Plastic Welding Machine Auto Tuning Frequency

Large Image : 4200W Digital Ultrasonic Plastic Welding Machine Auto Tuning Frequency

Product Details:

Place of Origin:	China
Brand Name:	KnMTech
Model Number:	KM-PTS-2000

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	wood carton
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Paypal
Supply Ability:	500sets per month

Contact Now

4200W Digital Ultrasonic Plastic Welding Machine Auto Tuning Frequency

Description

Product Name:	15KHz Ultrasonic Plastic Welding Machine	Voltage:	AC 220V 50/60HZ
Operating Frequencies:	15KHz/20KHz/30KHz/35KHz/40KHz	Power:	4200W
Processor:	4-core, 32-bit Processor	Time Mode:	0.005-9.999 Seconds
Welding Amplitude:	10%-100% Adjustable(1% Accuracy)	Welding Mode:	Time, Energy, Grounding
High Light:	0.6MPa Ultrasonic Plastic Welding Machine , Auto Tuning Ultrasonic Plastic Welding Machine , Auto Tuning Ultrasound Welder

Auto Tuning Frequency 4200W Digital Ultrasonic Plastic Welding Machine

15KHz 4200W Digital High Precision Ultrasonic Plastic Welding Machine with Auto-Tuning Function

The K&M Tech standard machine gives ultrasonic welding a new dimension: it combines high-performance ultrasonic components with high-quality construction and up-to-date control solutions.

This Machine is the latest version with a high precision design mechanically and a built-in control system to meet the demand of higher-end market. Its PLC language is available in English and Chinese.

Technical parameters:

Product Name	4200W Digital Ultrasonic Plastic Welding Machine
Voltage	AC 220V 50/60HZ
Dimensions (WxHxD) [mm]	7008802000
Weight [kg]	280KG
Operating frequencies* [kHz]	15KHZ/20KHZ/30KHZ/35KHZ/40KHZ
Welding head operating stroke [mm]	50/75/100mm
Air pressure rate[MPa]	0-0.6MPa
Power [W]	2500W/4200W/800W-1200W
Processor	4-core, 32-bit processor
Time Mode	0.005-9.999 Seconds
Welding amplitude	10%-100% adjustable(1% accuracy)
Welding mode	Time, Energy, grounding
Energy Mode	Integrated
Temperature	-10ºC--40ºC

Features:

* Using PLC control.

* Automatic frequency tuning to each welding stack used (no frequency teaching required)

* Automatic frequency tuning before starting each weld

* Automatic amplitude stabilisation throughout the operation

* Setting and automatic modes (password protection >> user level)

* Data storage for many freely nameable parameter sets

* "Welding force", "amplitude", "time", "welding depth" and "monitoring value" parameters input via the touchscreen display

Applications:

For all application markets, ultrasonic welding has its unique advantages - fast,
Efficient, clean, and firm, won the recognition of all walks of life.

Automobile: Ultrasonic wave can be controlled by computer program to implement the welding of large and irregular parts. such as bumpers, front and rear doors, lamps, brakes, Lamp, etc..With the development of high-grade roads, reflectors are also increasingly using ultrasound wave soldering.
Packaging: Nhose sealing, special packaging belt connection.
Electronics: Use automation scheme design to enable users to achieve large-scale production. At the same time ensure product quality requirements.
Home appliances: Through appropriate adjustment, it can be used for: portable lamp shade, steam Ironing door, TV shell, radio, transparent panel, power rectifier, the screw fixing seat of TV shell, the lamp housing for reducing mosquitoes and the sink for washing machine, etc.
Toy industry:The adoption of ultrasonic technology makes the products clean and efficient, firm, instead of screws, adhesives, glues or other accessories, reducing the risk & production cost, so that the competitiveness of enterprises in the market greatly enhanced.
Other commercial application: Communication equipment, computer industry, printing equipment, Audio products, can be used K&M Technologies ultrasonic equipment, he brought you fast, clean, efficient production methods, as well bring you more opportunities

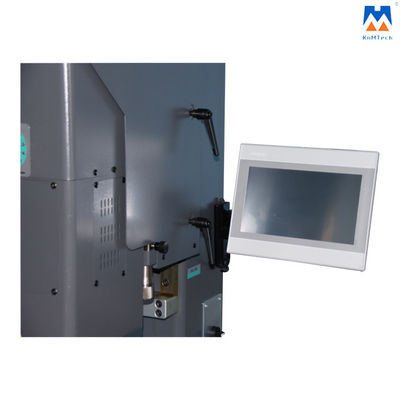

Detailed Photos:

4200W Digital Ultrasonic Plastic Welding Machine Auto Tuning Frequency 0
