Product Details:
|
| Product Name: | Ultrasonic Welding Press For Higer Precision Application | Frequency: | 35KHz |
|---|---|---|---|
| Welding Mode: | Time, Energy, Contact Shut-off, Absolute Depth, Relative Depth,pressure Trigger | Voltage: | 220V 50Hz |
| Weight: | 116.5kg | Work Stroke: | 50mm |
| Power: | 1200W | Standardized Configuration For This Model: | Pressure-trigger Mode |
| High Light: | 100mm Stroke Ultrasonic Welding Press,35Khz Ultrasonic Welding Press,35Khz Ultrasound Welding Machine |
||
35Khz Super Precision Ultrasound Welding Machine With Multiple Functions For Plastic Parts Welding
Multiple-Function Ultrasonic Welding Press For High Precision Application
The K&M TECH has various operating modes and monitoring functions, which make it a reliable all-rounder amongst pneumatic welding machines. A persuasive argument in favor of K&M TECH is its intuitive operation and user prompting. Even without expert knowledge and in-depth training, the user will be able to achieve top-quality welding results for a wide range of different components.
This is the model KM-FU2025 ultrasonic welding press, it has integrated time, energy, distance control modes, and more other functions for different needs in industries. Equipped with welding platform balance system, linear sliding rail lifting system, micrometer positioning system, grating measuring positioning system; With more powerful welding management and data management system, the whole process control before, during, and after welding can be realized, which is fully competent for the welding tasks of more complex and precise welding parts in the current manufacturing field and can meet the diverse needs of customers.
Technical parameters:
| Product Name | 35Khz Ultrasonic Welding Press | |
|
Frequency |
15/20/35Khz |
|
|
Power |
1200~3200W |
|
|
Language |
Chinese/English |
|
|
Work Stroke |
100mm |
|
|
Voltage |
200-240VAC stable output |
|
|
Welding amplitude |
10~100% adjustable (1% accuracy) |
|
|
Standardized configuration for this model |
Pressure-trigger mode |
|
|
Standardized configuration for this model |
Depth Check (0.01mm precision) Reinforced Steel Profile for Press Structure |
|
|
Linear guide blocks are used for welding movement and horn adjustment |
||
|
Ports |
Enough connection terminal ports for easy automation control |
|
|
Interface |
10-inch Human-machine interface |
|
|
Mode |
Welding mode: |
Time, Energy, Contact shut-off, Absolute Depth, Relative Depth, the pressure trigger |
|
Trigger mode: |
Delay, Pressure, Depth |
|
|
Air-pressure mode |
||
|
No-fault power |
||
|
4-core 32-bit processor |
||
|
485 communications |
||
Features:
|
Reinforced Steel Profile for Press Structure |
|
Linear guide blocks are used for welding movement and horn adjustment |
|
Enough connection terminal ports for easy automation control |
|
Real-time frequency auto-tuning function |
|
Amplitude compensation |
|
Frequency compensation |
|
Welding horn resistance analysis + protection |
|
Over-load protection |
|
Voltage protection (input) |
|
Transducer voltage protection |
|
Quality control (interactive check between time, energy, absolute depth, relative depth) |
|
Welding record |
|
Data collection |
|
Data export |
|
Scanned data import |
|
Power curves |
|
Speed inspection |
|
Pressure verification |
|
10 groups of mould number can be selected and named freely |
|
Auto-switching between resistance analysis and pressure verification |
|
No-fault power |
|
It features in a higher power, good quality, and stable welding results. |
Application:
Automotive, electronics, home appliances, industrial components, electrical wiring components, lighters, toys, gadgets, medical, personal appliances, and more.

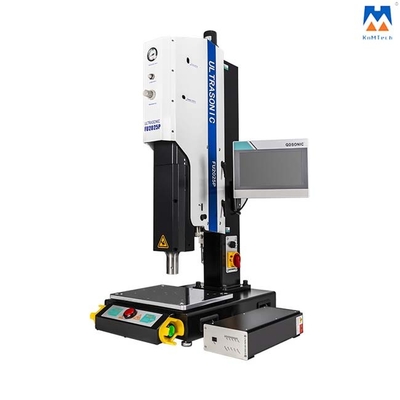

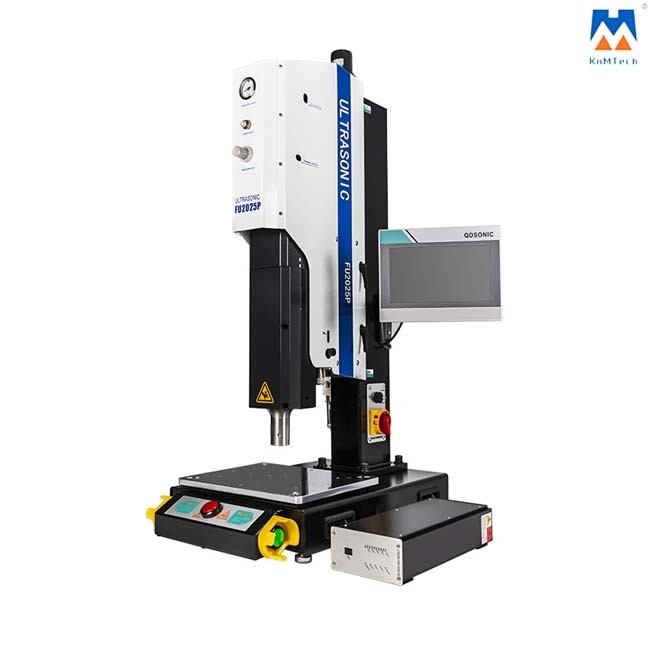

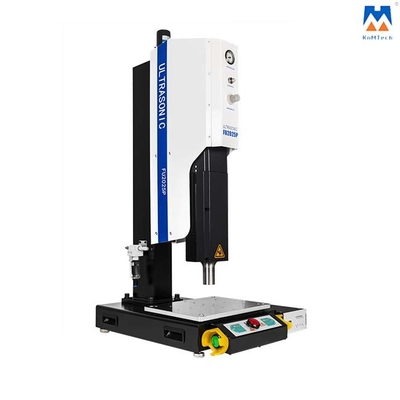

Detailed Photos:
Operation panel Display:
