Product Details:
|
| Product Name: | Digital Ultrasonic Plastic Welding Press | Operating Frequency: | 15/20/28/30/35/40KHz |
|---|---|---|---|
| Power: | 800-2600W | Time Mode: | 0.005s-9.999 Seconds |
| Voltage: | AC 220V 50/60Hz | Weight: | <=85kg |
| Welding Area: | Depend The Products Size | After-sales Service Provided: | Video Technical Support,Online Support |
| High Light: | ABS Ultrasound Welder,2600W Digital Ultrasonic Welding Press,2600W Digital Ultrasonic Welding Machine |
||

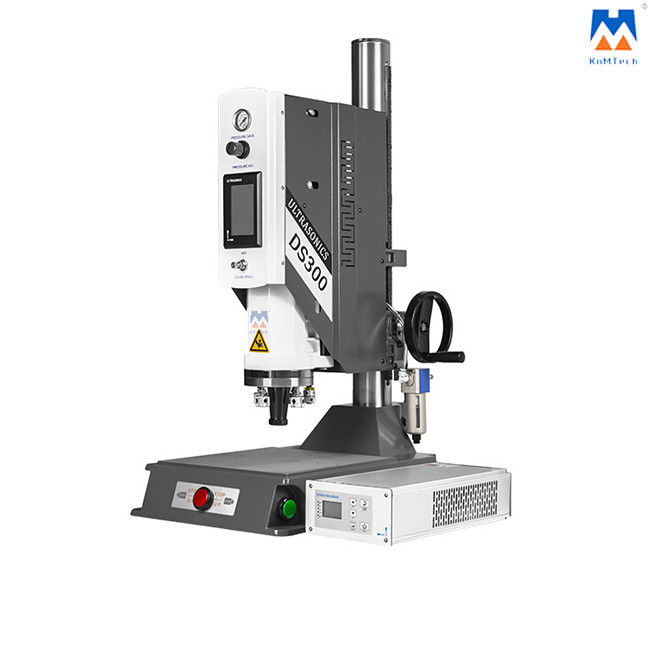

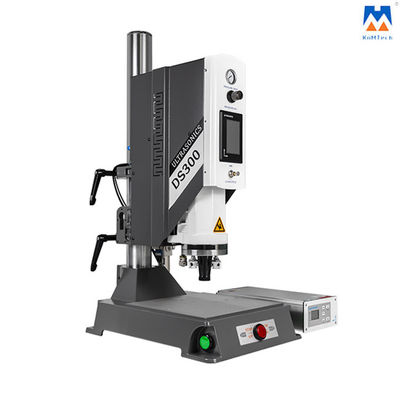

2600W Digital Ultrasonic Welding Machine For Plastic Parts ABS,PVC
15khz 2600w Digital Ultrasonic Plastic Welding Press Plastic Welding Machine
This is the 15khz 2600w digital ultrasonic plastic welding press plastic welding machine with economical design on the framework and has been improved stable quality.
The base and framework of the equipment are formed by welding steel plate, which ensures the rigidity and stability of the whole equipment. The height can be adjusted through motor lifting to achieve rapid, labor-saving, and accuracy.
The horizontal adjustment of the bottom plate makes the mold adjustment more convenient and accurate in the case to achieve the precision of the welding effect.
Technical specifications:
| Product name | 2600W Digital Ultrasonic Welding Press | |
| Voltage | AC 220V 50/60Hz | |
| Dimensions (LxWxH) [mm] | 390*630*1050 | |
| Weight [kg] | 85KG | |
| Operating frequencies* [kHz] | 20kHz | 15kHz |
| Welding head operating stroke [mm] | 100mm-300mm | |
| Air pressure rate[MPa] | 0-0.6MPa | |
| Power [W] | 2500W | 2600W |
| Amplitude Internal | 60-100 at 5% steps | |
| Time Mode | 0.005-9.999 Seconds | |
| Input | 22-28V DC/7mA | |
| Output | 22-26V DC/250mA | |
| Energy Mode | Integrated | |
| Temperature | -10ºC--40ºC | |
Features:
* Universal applications in all industries
* Ultrasonic welding, sealing, cutting, stamping, riveting, and embossing of thermoplastics
* Intuitive touchscreen control
* Possible to exchange ultrasonic components and change application frequencies
* Extremely high degree of process reliability and quality
Applications:
| (1) Clothes lace | (8) Toys |
| (2) Bed cover | (9) Gloves |
| (3) Pillow cover | (10) Tablecloths |
| (4) Car cover | (11) Chair covers |
| (5) Tentage | (12) Accessories |
| (6) Packaging tapes | (13) Umbrellas |
| (7) Raincoat, Windbreaker, Snow Jacket | (14) Lampshades |
Detailed Photos:
Warehouse:
