Product Details:
|
| Product Name: | Ultrasonic Plastic Welding Machine KM-BN-P | Voltage: | AC 220V 50/60HZ |
|---|---|---|---|
| Weight: | 258KG | Welding Head Operating Stroke: | Up To 300mm |
| Air Pressure Rate: | 0-0.6MPa | Welding Time: | 0.005-9.999 Seconds |
| Temperature: | -10ºC--40ºC | After-sales Service Provided: | Video Technical Support,Online Support |
| High Light: | 1500W Ultrasonic Welding Press,258KG Ultrasonic Welding Press,20KHz Ultrasonic welding Machines |
||
20KHz 1500W High Precision Design Ultrasonic Plastic Welding Press
The K&M Tech standard machine gives ultrasonic welding a new dimension. This 20KHz 1500W high precision design ultrasonic plastic welding press combines high-performance ultrasonic components with high-quality construction and up-to-date control solutions.
Compared with its predecessors the functionality of the K&M Tech has been improved and handling simplified.
Technical parameters:
| Product Name | Ultrasonic Welding Press | |
| Voltage | AC 220V 50/60HZ | |
| Dimensions (WxHxD) [mm] | 670*400*1160 | |
| Weight [kg] | 258KG | |
| Operating frequencies* [kHz] | 20KHZ | 15KHZ |
| Welding head operating stroke [mm] | 300mm | |
| Air pressure rate[MPa] | 0-0.6MPa | |
| Power [W] | 20KHZ-1500W | 15KHZ-2200W |
| Amplitude Internal | 60-100 at 5% steps | |
| Time Mode | 0.005-9.999 Seconds | |
| Input | 22-28V DC/7mA | |
| Output | 22-26V DC/250mA | |
| Energy Mode | Integrated | |
| Temperature | -10ºC--40ºC | |
Features:
* The base, square column, and framework of the equipment are formed by welding steel plate, which ensures the rigidity and stability of the whole equipment.
* In order to operate and disassemble easily, the control generator and operation screen are hanged on the side.
* The height can be adjusted through motor lifting to achieve rapid, labor-saving, and accuracy.
* In order to ensure the stability and precision of framework lifting, high rigidity square column would be equipped with high precision dovetail slide.
* The horizontal adjustment of the bottom plate makes the mold adjustment more convenient and accurate in the case to achieve the precision of the welding effect.
* The welding feeding is guided by two high-precision guide rails, so as to ensure a more precise and stable welding effect.
Application:
| (1) Clothes lace | (8) Toys |
| (2) Bed cover | (9) Gloves |
| (3) Pillow cover | (10) Tablecloths |
| (4) Car cover | (11) Chair covers |
| (5) Tentage | (12) Accessories |
| (6) Packaging tapes | (13) Umbrellas |
| (7) Raincoat, Windbreaker, Snow Jacket, | (14) Lampshades |

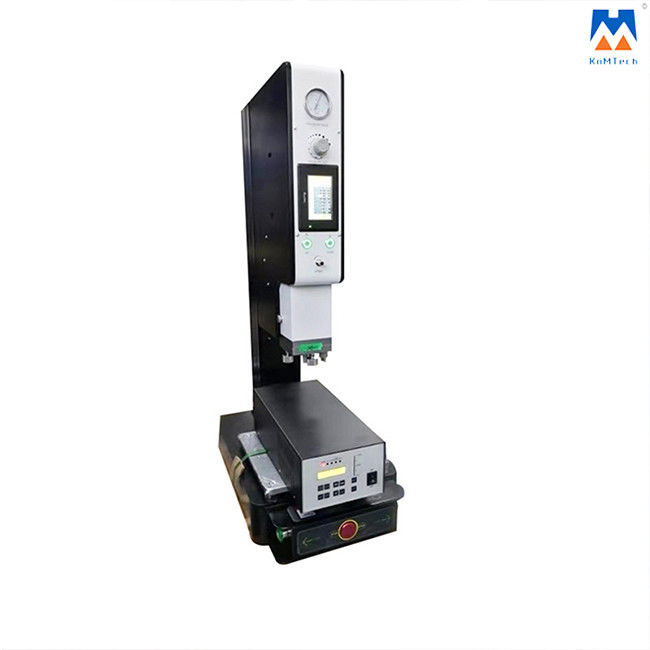

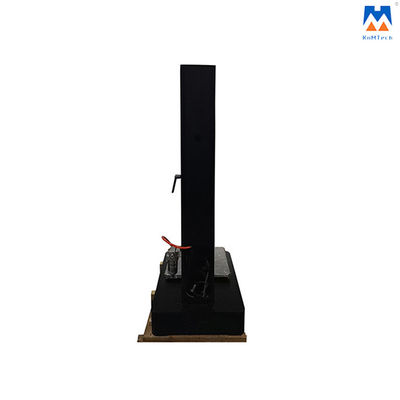

Detailed Photos:
Packing:
