Product Details:
|
| Product Name: | Filter Membrane Seam Welding Machine | Power: | 4200W |
|---|---|---|---|
| Frequency: | 15Khz | Warranty: | 1 Year |
| Welding Time: | 0.01-9.99S/Time | Usage: | Fabric Welding,ultrasonic Welding |
| Welding Area: | 400mm | After-sales Service Provided: | Video Technical Support,Online Support |
| High Light: | 4200W Ultrasonic Welding Machines,15Khz Ultrasonic Welding Machines,Filter Membrane Seam Welding Machine |
||
15KHz 4200W Filter Membrane Seam Welding Machine
This is a 15KHz 4200W Filter Membrane Seam Welding Machine, mainly used for 10-inch and 40-inch filter and pleated non-woven fabric seam welding, suitable for PP non-woven film welding.
Technical parameters:
| Product Name: | 4200W Filter Membrane Seam Ultrasonic Welding Machines |
| Voltage | AC 220V 50/60HZ |
| Operation Mode: | PLC/HMI |
| Dimensions (WxHxD) [mm] | L750*W800*1800mm |
| Weight [kg] | 200Kg |
| operating frequencies | 15KHZ |
| Welding material | PP/PVC/PE or other plastic |
| Driven Mode: | Electric & pneumatic |
| Power [W] | 4200W |
| Welding Area: | 400mm |
| Hold time | 0.00s-9.99s |
| Usage: | plastic welding, fabric welding |
| Pressure: | 0-200kg |
| Air pressure | 5Kg/c㎡ |
| Warranty: | One year |
| Any place with an electric source needs to connect an air compressor. | |
Features:
Easy to operate, a wide range of applications.
After welding, the result of water-tightness and airtightness can be achieved.
For larger workpiece welding.
Fast speed and high efficiency.
Applications:
| Electronics: | recording, audiotape boxes and core wheel, disk enclosure, the board of mobile phone batteries and rectifier transformers, switches and sockets, remote control, electronic swatter, pseudo-imitation caps, etc |
| Home appliances: | Balance ring, electronic clock, electric trumpeter hairdryer, steam iron water tank, electric kettle air-Hsiang, computer, etc |
| Toy: | plastic toys, water guns, aquatic life video game, children dolls, plastic gifts, etc |
| Film & Fabric: | Filters, Shower Curtains, Biodegradable Bag, Non-Woven Face Mark,.etc. |
| Medical: | Surgical Instruments,Testing Equipment,filters,I-V units,insulated trays etc. |

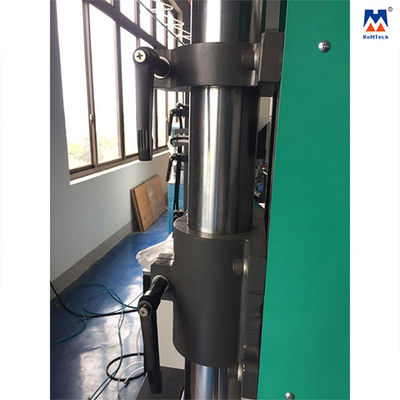

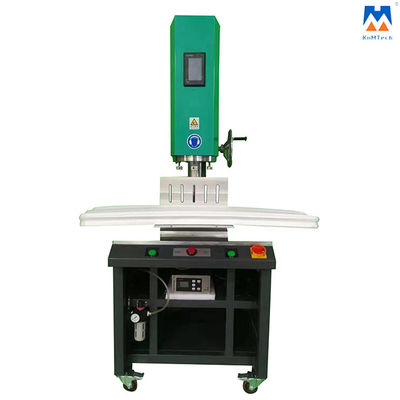

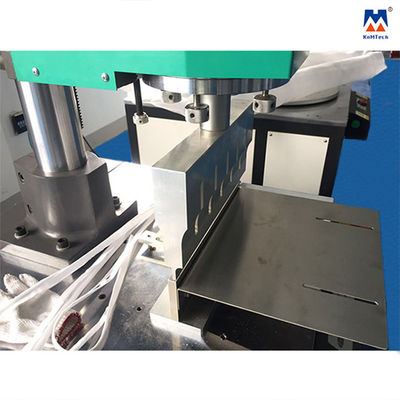

Detailed Photos:
