Product Details:
|
| Product Name: | 20KHz 2500W High Precision Ultrasonic Plastic Welder | Frequency: | 20KHz |
|---|---|---|---|
| Power: | 2500W | Working Stroke: | 75mm |
| Air Pressure: | 0.2-0.7Mpa | Cooling System: | Air Cooling |
| Dimension: | L700*W800*H1900mm | Weight: | 100kg |
| High Light: | 20KHz Ultrasonic Plastic Welding Machine,Bluetooth Headset Ultrasonic Plastic Welding Machine,Bluetooth Headset Ultrasonic Welder |
||

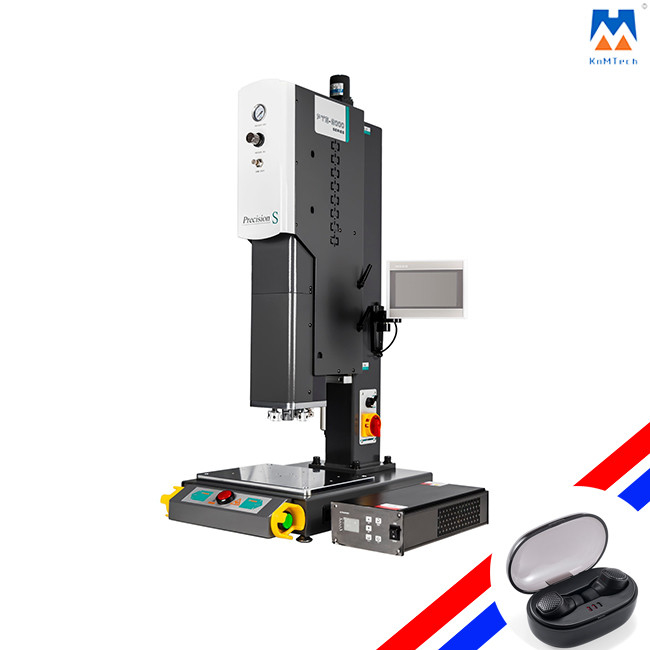

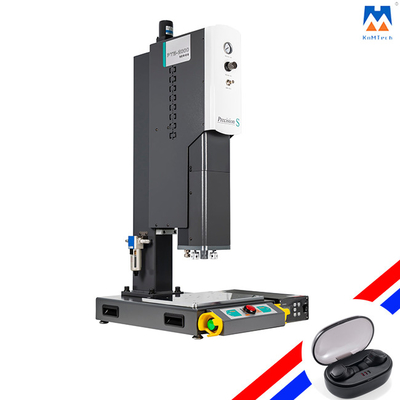

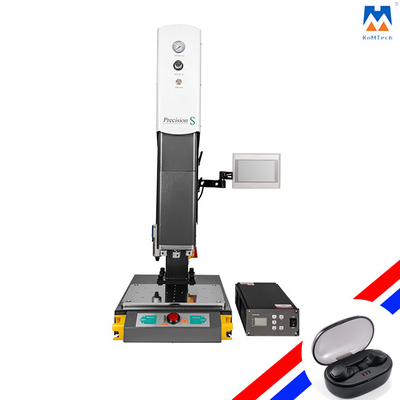

High Precision 20KHz Ultrasonic Plastic Welding Machine For Bluetooth Headset
Technical parameters:
| Product Name | 20KHz Ultrasonic Plastic Welding Machine PTS2000 |
| Voltage | AC 220V 50/60HZ |
| Dimensions (WxHxD) [mm] | 450*690*1250 |
| Operating panel Size | 7 inch touch screen |
| Weight [kg] | 100KG |
| Welding head operating stroke [mm] | 100mm |
| Air pressure rate[MPa] | 0.2-0.7MPa |
| Processor | 4-core, 32-bit processor |
| Time Mode | 0.001-9.999 Seconds |
| Welding amplitude | 10%-100% adjustable(1% accuracy) |
| Welding mode | Time, Energy, grounding |
| Energy Mode | Integrated |
| Temperature | -10ºC--40ºC |
Different models are available:
| Frequency | Power | Work Stroke | Lifting Mode | Voltage | Air Source |
| 15kHz | 2600W | 75MM | electric control | 220V±10% | 2kgf-8kgf |
| 15khz | 3200W | 75MM | |||
| 15khz | 4200W | 100MM | |||
| 20kHz | 2500w | 75MM | |||
| 20kHz | 3000w | 75MM | |||
| 30KHz | 1200W | 75MM | |||
| 35KHz | 1200W | 75MM | |||
| 40KHz | 800W | 75MM | |||
| Operation interface:7 inches touch screen | |||||
Features:
| 1. Pressure triggering mode is available |
| 2. Linear guiderail block for up and down of the ultrasonic welding machine |
| 3. Real-time frequency auto tuning function |
| 4. Welding mode:Time, Energy, grounding |
| 5. Amplitude can be segmented. |
| 6. Welding amplitude: 10%-100%adjustable(1% accuracy) |
| 7. 200V-240V stable output amplitude compensation function |
| 8. Welding horn impedance analysis+protection function |
| 9. Over-load protection Voltage protection(input) |
| 10. Transducer voltage protection |
| 11. QC(time and energy, mutual check) |
| 12. Welding records(operation calculation) |
| 13. No fake power for the machine |
| 14. 4-core, 32-bit processor |
| 15. 485 communication |
Our Services:
Well-experienced R&D Engineer:
If you have any technical questions,please don't hesitate to contact us
Efficient Working Team:
We have a mature,efficient and well-cooperated team.
Reliable Production Line:
Our production line is stable and trustworthy
Competitive price:
We promise to give you the most competitve price
Customized Product Service:
If you have other customized requirements,please communicate with us for further details.
Applications:
For more details about our ultrasonic plastic welders, welcome to click the catalog below:
Catalog of Ultrasonic Welding Press.pdf
