Product Details:
|
| Product Name: | Precise Positioning Spin Soldering Machine | Power: | 2000W |
|---|---|---|---|
| Welding Area: | Diameter 300MM | Weight: | 105KG |
| Operation Way: | Manual | Voltage: | 220V/380V/Customize |
| After-sales Service Provided: | Video Technical Support,Online Support | Warranty: | 1 Year |
| High Light: | 2000W sonic welding plastic,2000W Plastic Spin Soldering Machines,KnMTech Ultrasonic Welding Machines |
||

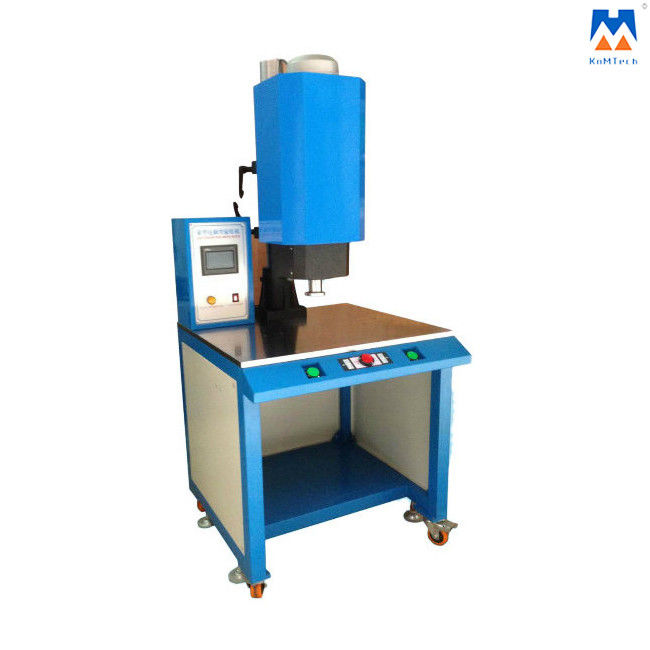

Spin Soldering Machine with Precise Positioning Function
Spin welding, also referred to as rotary friction welding, is the joining technology of choice when assembling spherically or cylindrically shaped thermoplastic parts.
In spin welding, one part, which has a circular cross-section at the weld interface, is rapidly spun against its mating part which is held stationary in a nesting fixture.
The resulting heat that is generated by the combination of spinning action and friction brings the plastic material to its melt point and fuses the two parts together, producing a strong and impervious seal.
Hermetic seals are also attainable depending upon the materials used and the weld joint configuration. While spin welding works with all thermoplastics and can accommodate virtually any diameter part, it is particularly suited for crystalline resins such as polyethylene and polypropylene.
Technical parameters:
| Product Name: | 2000W Plastic Ultrasonic Welding Machines |
| Model: | KM-2P |
| Place of Origin: | Suzhou, China (Mainland) |
| Power: | 2000W |
| Voltage: | 220V/380V/Customize |
| Welding Area: | Diameter 300MM |
| Dimensions: | 900*700*1900MM |
| Weight: | 105KG |
| Usage: | Plastic Welding |
| Machine Type: | Plastic Spin welding machine for inline water filters |
| Manufacturer: | Yes |
| OEM: | Accept |
| Function: | Plastic Welding |
| Operation Way: | Manual |
| Warranty: | 1 Year |
| After-sales Service Provided: | Engineers available to service machinery online |
Features:
1. Easy operation, high efficiency, wide scope of application
2. PLC control, touch screen
3. Friction welding for plastic parts
4. Positioning-based function available
5. Braking type or motor type control
6. Four auxiliary casters facilitate the movement of the machine
Applications:
| Automobile parts | fuel filters, air filters, deputy air pumps, Auto & Motorcycle Filter, Auto & Motorcycle Filter, RO water purifier filter, Water jug, and round workpieces |
| Commodities | filter/cup welding water filter/medical filter/oil and any other circular/tubular shape plastic parts welding to get water-proof and air-tight welding effect |
| Toys | stroller wheels, etc |
| Material | nylon/PP/PVC/PE etc. |
