Product Details:
|
| Product Name: | Spin Welding Machine For Round Plastic | Power: | 2900W |
|---|---|---|---|
| Control Optional: | Servo Motor Control | Electric Current: | AC |
| Welding Type: | Friction Welding | Application: | Household Appliances, Commodity, Auto Part, Electronic, Stationery, Toys |
| Usage: | Product Welding,Ultrasonic Welding Machine | After-sales Service Provided: | Video Technical Support,Online Support |
| Welding Time: | 0.001-9.99 | Material: | PS,PP,ABS,etc. |
| High Light: | Rotary Spin Welder,Servo Motor Control Spin Welder,Servo Motor Rotary Plastic Welding Machine |
||

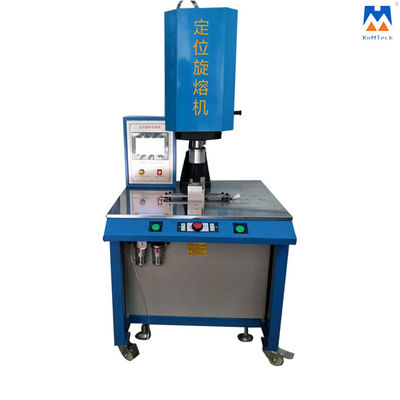

Plastic Spin Welding Equipment for Round Plastic Friction Joining
Technical Parameters:
| Product Name | Servo Motor Spin Welder |
| Model | KM-2900 |
| Servo-Motor Power | 2.9kw |
| Power Supply | AC 220V/380V, 3P, 50Hz |
| Motor Speed | Max 1500 RPM |
| Rotation Circles | 30 (adjustable) |
| Delay Time | 0~100 seconds (Adjustable) |
| Hold Time | 0~100 seconds (Adjustable) |
| Working Pressure | 0.5~0.7Mpa |
| Torsion | 10N*M |
| Gross Weight | 350kg |
| Dimension | 900*700*1900mm |
Spin welding is the process of friction welding fittings to containers with high RPM. When properly done, the fitting becomes integral with the container and will become as durable as the container. The spin welding machine is best for welding thermoplastic parts with a circular axis joint that has high bond strength/hermetic requirements.
Servo motor spin welding machine has several additional benefits over inertial spin welding, the main benefit is the ability to stop the part being welded at a specific point during its 360 degrees of rotation and index to a specific spot with respect to the mating part with an accuracy of ±1 degree, also this indexing is available at both ends of the stroke, at the head-up position, the driver can be rotated to any position for loading purpose or part pick up, making it ideal for automation application.
Features:
* Aggressive jointing method;
* High-strength welds;
* Hermetically sealing joints;
* Cost-effective for round weld joints;
* Position-based indexing possible;
* Requires less velocity (better for engineering resins);
* Improved process control;
* Heat confined to weld interface;
* Compatible with most thermoplastics;
* Ideal for welding of PP and PE materials;
* Ability to weld several dissimilar materials;
* No consumables, fumes, or emissions;
* High strength, hermetic welds are typical;
* Password protection of setup parameter;
* Relatively fast cycle times when compared with other methods;
* Low power consumption, low maintenance, and quick-change tooling;
* Up to 150, stroke for greater versatility and easier part load and unload;
* High precision servo spin driver with orientation accuracy of +/- 0.1 degree;
* Ability to weld parts with the circular joint that is not easily welded by ultrasonic welding;
* Programmable welding methods include weld by time, rotation circles, speed, and orientation.
Applications:

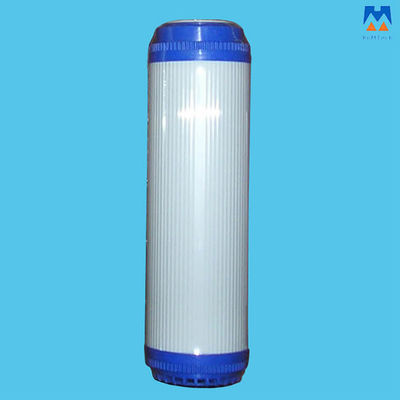

| Automobile parts | fuel filters, air filters, deputy air pumps, Auto & Motorcycle Filter, Auto & Motorcycle Filter, RO water purifier filter, Water jug, and round workpieces |
| Commodities | filter/cup welding water filter/medical filter/oil and any other circular/tubular shape plastic parts welding to get water-proof and air-tight welding effect |
| Toys | stroller wheels, etc |
| Material | nylon/PP/PVC/PE etc. |
FAQ:
1. What's the warranty of your spin welding machines?
One-year Warranty with no human damage.
In this period factory, will be responsible for repair fix it for free or the factory will send the new parts to the customer instead of the broken parts for free. After warranty time, the factory will repair fix it or send the new parts at the cost price.
2. How about the quality?
We have exported to many other customers from all over the world, the feedback is good, quality ranks first in our company.

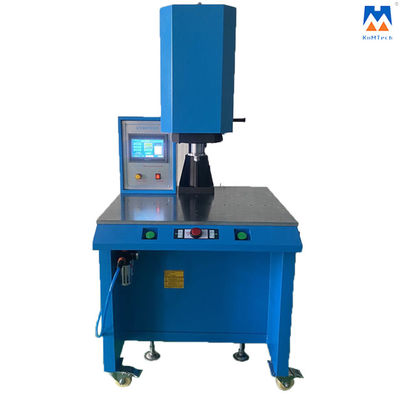

Detailed Photos:
