Product Details:
|
| Product Name: | 15KHz Plastic Welding Machine | Frequency: | 15KHz |
|---|---|---|---|
| Power: | 4200W | Power Supply: | 220V |
| Welding Stroke: | 100mm | Air Pressure: | 7Kg/cm2 |
| Welding Area: | Up To 400mm Depending On The Products Size | Usage: | Product Welding,Ultrasonic Welding Machine |
| After-sales Service Provided: | Video Technical Support,Online Support | Welding Time: | 0-10s Adjustable |
| High Light: | 15KHz Seam Ultrasonic Welding Press,4200W Ultrasonic Plastic Welder,PP Ultrasonic Welding Equipment |
||

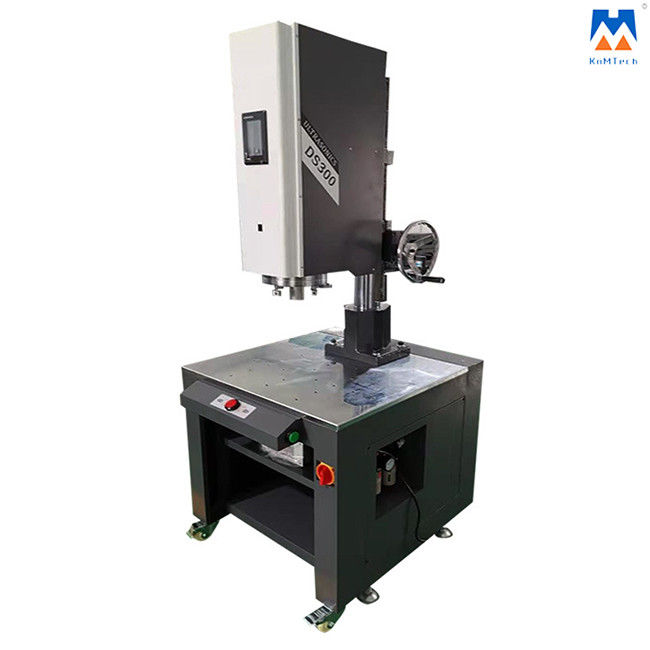

15KHz 4200W Ultrasonic Plastic Welding Machine For Plastic Welding ABS PP PA
15KHz 4200W Ultrasonic Plastic Welding Machine for Fabric Plastic Welding
Ultrasonic welding machine makes use of the friction between the welding surfaces of two welding objects to make the temperature reach the melting point of the object itself, so that the interface of the object quickly melts, and then fills the gap between the interface. When the vibration stops, under a certain pressure, the object is cooled and fixed, and then the welding of high density is achieved.
This machine can be used for welding big-sized plastic parts, such as automotive lights, filter membrane seam sealing for 10-inch and 40-inch filters, and pleated non-woven fabric seam welding, suitable for PP non-woven film welding.
Technical parameters:
| Product Name | 4200W Ultrasonic Plastic Welding Press |
| Model | KM-QDP1542 |
| Frequency | 15KHZ |
| Power | 4200W |
| Power Supply | 220V |
| Welding horn stroke | 100mm |
| Air pressure | 7Kg/cm2 |
| Size | L700*W700*1800mm |
| Weight | 200Kg |
Details of the components:
| Welding horn material | Alu 7075/Titanium |
| Transducer | Risun ceramics inside |
| Pneumatic components | Airtac from Taiwan |
FAQ:
1. Can we agent your ultrasonic welding presses in our country or city?
Of course. We are looking for a sole agent in the country who has the willingness to cooperate with us for a long business term.
2. How about payment?
100%T/T in advance for small orders;50%T/T in advance as a deposit;50%T/T paid before shipment.
3. Can we have our logo on the welding machine products?
Sure, OEM is available, welcome to send us your artwork.
4. How about the package?
Foam and wooden case to protect products.
5. How about the delivery method?
A: Normally we will take express such as DHL, FedEx, UPS, and TNT for sample orders.For bulk order, will take air flights or Sea shipment.
Detailed Photos:
Warehouse:
Packing:
