Product Details:
|
| Product Name: | Plastic Ultrasonic Welding Generator | Frequency: | 20kHZ |
|---|---|---|---|
| Power: | 2500W | Voltage: | 220V+-10% |
| Style: | Vertical | Weight: | 6kg |
| Warranty: | 1 Year | Welding Time: | 0.01-9.99S/Time |

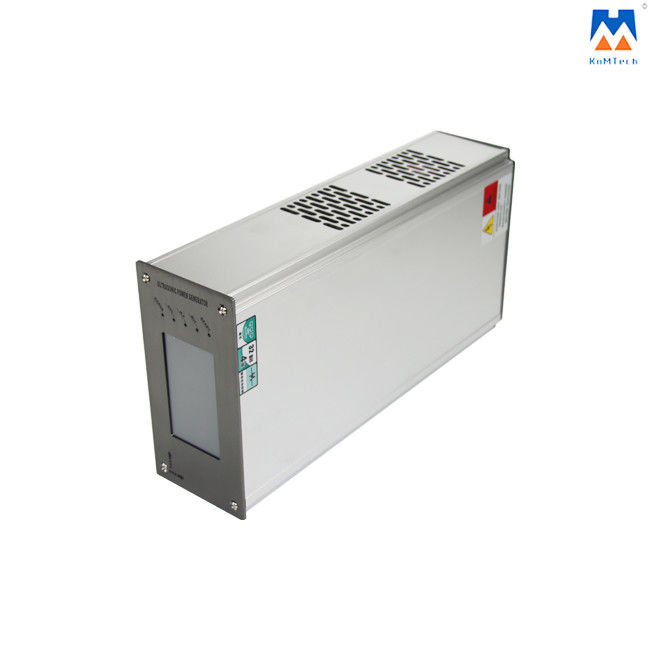

20KHz Digital Plastic Ultrasonic Welding Generator PowerBox Power Supply
Ultrasonic technologies are not only quick and efficient but also extremely eco-friendly for processing thermoplastics, films and fabrics. The principle of the technology is based on the generation of internal heat (molecular friction) by ultrasound and the boundary friction in the join or separation zones of thermoplastics.
The ultrasound frequency is produced by the Vertical Digital Plastic Ultrasonic Welding Generator. The generator converts mains voltage into high-frequency high voltage and transfers this to the welding stack, which is made up of the converter, the booster (amplitude transformation unit), and the sonotrode (welding tool).
The 20K PLC vertical digital plastic ultrasonic welding generator power box has been proved the best quality of China make in this industry in the past 3 years.
Technical specifications:
| Frequency | Power | Frequency Range |
Voltage |
Air Source |
|---|---|---|---|---|
| 15KHz | 2500W/3000W/4000W | 14.40-15.20kHz | 220V+-10% | Built-in PLC Control |
| 20KHZ | 2500W/3000W | 19.40-20.20kHz | 220V+-10% | Built-in PLC Control |
| 30KHz | 1000W | 29.30-30.30kHz | 220V+-10% | Built-in PLC Control |
| 35KHz | 1000W | 34.20-35.40kHz | 220V+-10% | Built-in PLC Control |
| 40KHz | 800W | 39.20-40.40kHz | 220V+-10% | Built-in PLC Control |
Features:
| Real-time frequency automatic tracking function |
| Welding time is adjustable |
| Cooling time is adjustable |
| Welding amplitude adjustable 10%-100% (1% accuracy) |
| Amplitude compensation |
| Welding electrode impedance analysis +protection |
| Overload protection |
| Voltage protection |
| Transducer voltage protection |
Application:
| Automotive | car door welded baffle welding, automobile, car mats welding, automotive bumper repair welding, cotton insulation doors, engine cover, radiator cap spot, etc |
| Electronics | Switches and sockets, electronic swatter, remote control unit,etc |
| Home appliances | computer, electronic clock, electric kettle air-Hsiang, etc |
| Toy | plastic toys, plastic gifts, etc |
| Packaging | Corrugated tray, hollow crate welding, zip lock welded, etc |
| Medical | Testing Equipment,filters,I-V units,insulated trays.etc. |
For more details of our ultrasonic welding generators, welcome to check our catalog below:
Catalog of KnmTech Ultrasonic Generators.pdf

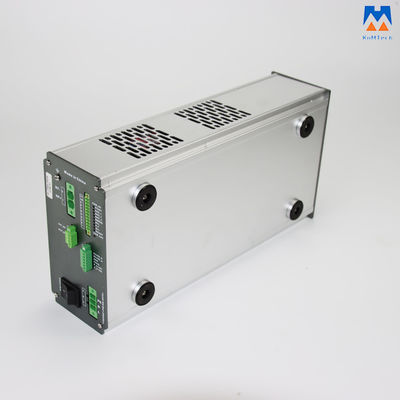

Detailed Photos:
