Product Details:
|
| Product Name: | 15kHz Ultrasonic Welding Generator | Output Power: | 0-2600W |
|---|---|---|---|
| Output Voltage: | 0-3000VAC | Voltage: | 220V/50HZ |
| Weight: | 4KG | Frequency: | 15KHz/20KHz/28KHz/30KHz/35KHz/40KHz |
| High Light: | 15KHz Ultrasonic Power Supply,AC220V 50Hz Ultrasonic Generator,2600W ultrasonic vibration generator |
||

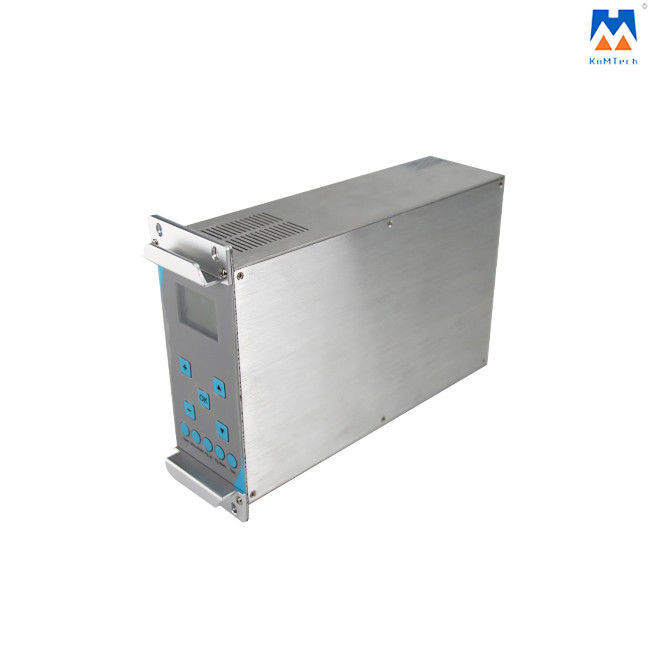

15KHz Vertical Plastic Ultrasonic Welder Generator for Ultrasonic Welding Machine Power Box
This ultrasonic welding generator, which is also called the ultrasonic power box, has the auto-tuning frequency tracking function, when you change the ultrasonic welding horn, please touch the sonic button, the system will automatically perform the frequency scan program, if normally scanned, the system will automatically save the frequency data of the welding horn, otherwise, it will prompt corresponding fault information.
The ultrasonic welding generator has three working modes:
* Time: when pressing the start button, the welding horn will go down, the workflow is as follows: delay--weld--hold--welding horn reset ;
* Outer Control: when the external switch is on, the generator will output ultrasonic; when the external switch is off, it will stop output ultrasonic.
* Spot Welding: the mode is suitable for hand-held welding tools, the generator can set welding time and hold time.
With features of a wide frequency range, high-frequency precision, and large instantaneous output, strong power, quick response, safety, and reliability, the ultrasonic welding generator is very popular and recognized among our clients around the world.
Technical Parameters:
| Product Name | 15kHz Ultrasonic welding generator |
| Dimension: | L90mm×W320mm×H230mm |
| Net Weight: | 4Kg |
| Output power: | 0-2600W |
| Output voltage: | 0-3000V AC |
| Ambient temperature: | +5°C - +50°C |
| Harmonic Sinusoidal rate ≥97% | |
| Input power factor ≥80% | |
| Working frequency: | 15 KHz/20KHz/28KHz/30KHZ/35KHz/40KHz |
| Power supply: | AC220V 50Hz |
| Horn frequency scope: | ±400HZ(take 15KHZ as an example, the horn frequency can be 14.40-15.20KHZ, auto-tuning) |
| Auto-tuning accuracy: | ±5HZ |
| Power fluctuation: | ≤ 5% |
| Remote terminal dynamic response time: | ≤10ms |
| Over-current protection: | 15A |
Features:
* Specialized in high power ultrasonic for more than ten years;
* Every ultrasonic welding generator with 24hours old testing before shipment;
* Good packing, no packing problem during the 10 years exporting business;
* Every customer will get purchase records of generators and convenient for after-sales service.
For more details about our ultrasonic generators, welcome to click the catalog below:
Catalog of KnmTech Ultrasonic Generators.pdf
FAQ:
1. What's the warranty of your ultrasonic welder generators?
A year Warranty with no human damage.
We will be responsible for repairing generators for free in the period or we will send new parts of the generator to clients instead of the broken parts for free. After warranty time, we will provide our service at a cost price.
2. How can I get your generator's price and catalog?
Please click the catalog of generators shown above or email us. We are always here for you.

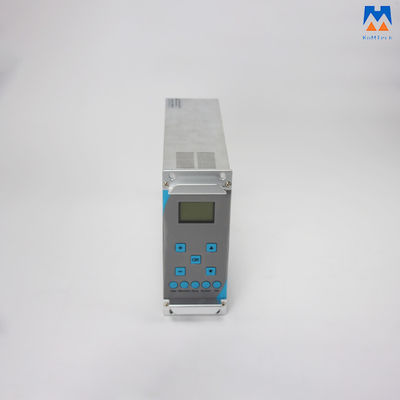

Detailed Photos:
