Product Details:
|
| Product Name: | 15kHz Ultrasonic Welding Aluminum Sonotrode | Frequency: | 15KHz |
|---|---|---|---|
| Power: | 4200W | Material: | Aluminum |
| Screw Size: | M16*1 | Customized Or Not: | Yes |
| High Light: | Plastic Ultrasonic Welding Sonotrode,Aluminum Ultrasonic Welding Sonotrode,15kHz Sonotrode Ultrasonic Welding |
||

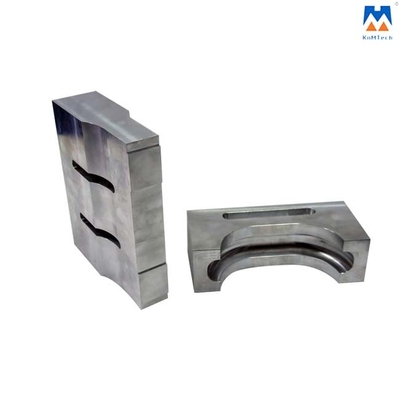

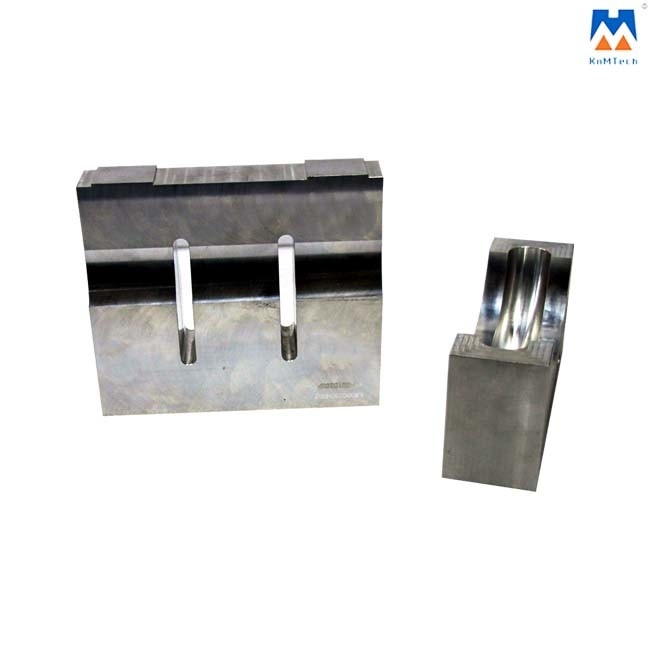

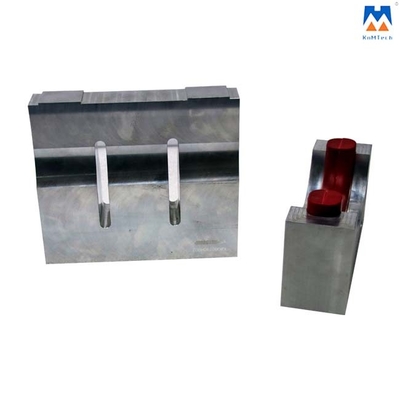

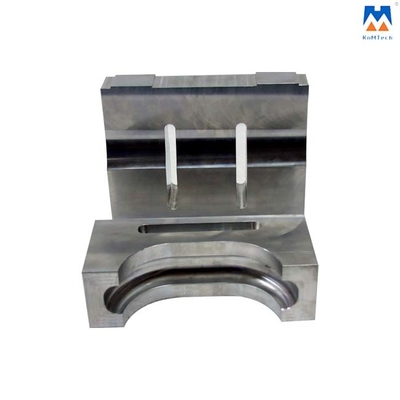

Ultrasonic Plastic Welding Sonotrode Aluminum Material For Plastic Parts
Our engineers perfectly combine the acoustic and mechanical properties of the welding sonotrode to design products that best meet customer needs. Every set of sonotrodes and molds we produce, whether standard or customized, are made from the best materials and repeatedly tested. After many tests, the shape, strength, and audio frequency parameters of the welding mold can meet the most strict standards, and the welding head and the mold can achieve the most perfect match.
The process of mold completion is complex. Therefore, not only the mold engineer must carefully choose the material, but also need to understand the requirements of their own products to use what kind of material, so as to avoid negligence and affect its aging and quality.
Technical Parameters:
| Model | KM-XL-H1542 |
| Frequency | 15KHz |
| Power | 4200W |
| Material | Aluminum |
| Screw Size | M16 |
| Usage | For Ultrasonic Plastic Welding |
To produce a set of ultrasonic mold, the following factors should be considered:
1. Product requirements: determine the service life of the ultrasonic mold, wear rate and decide what kind of metal to use.
2. Shape of the product: what kind of welding process is adopted, the size of ultrasonic mold is set, the pressure transmission area, the deformation that may occur during the fusion of the product, how much power, and what kind of function are required. Whether the work can be completed in one fusion.
3. Plastic properties of the product: determine the working vibration amplitude of the mold, the form, position, and size of the energy guideline.
