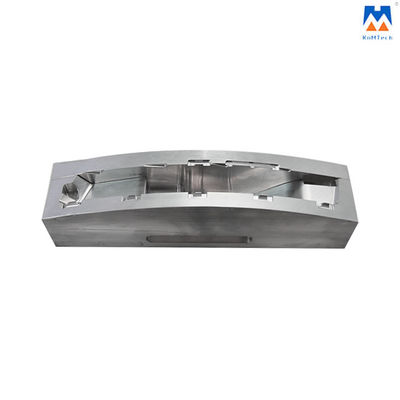

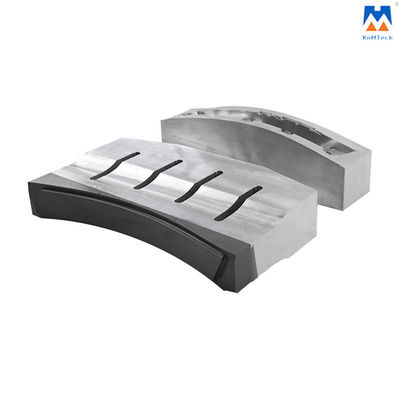

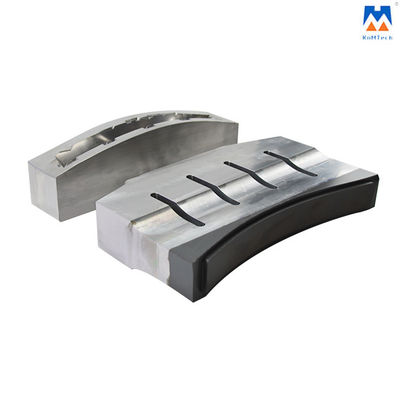

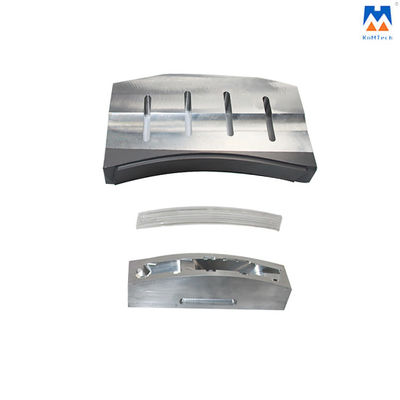

15KHz Ultrasonic Tooling or Ultrasonic Horn For Automobile Taillight Plastic Welding

15KHz Ultrasonic Tooling or Ultrasonic Horn For Automobile Taillight Plastic Welding
15KHz Ultrasonic Tooling or Ultrasonic Horn For Automobile Taillight Plastic Welding 15KHz Ultrasonic Tooling or Ultrasonic Horn For Automobile Taillight Plastic Welding 15KHz Ultrasonic Tooling or Ultrasonic Horn For Automobile Taillight Plastic Welding 15KHz Ultrasonic Tooling or Ultrasonic Horn For Automobile Taillight Plastic Welding 15KHz Ultrasonic Tooling or Ultrasonic Horn For Automobile Taillight Plastic Welding 15KHz Ultrasonic Tooling or Ultrasonic Horn For Automobile Taillight Plastic Welding

Large Image :  15KHz Ultrasonic Tooling or Ultrasonic Horn For Automobile Taillight Plastic Welding

Product Details:
Place of Origin: China
Brand Name: KnMTech
Model Number: KM-HC15
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: paper/wood carton
Delivery Time: 3-7 work days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 500sets per month

15KHz Ultrasonic Tooling or Ultrasonic Horn For Automobile Taillight Plastic Welding

Description
Product Name: Ultrasonic Horn For Automobile Taillight Welding Frequency: 15KHz
Power Supply: AC240V 50Hz/60Hz Material: Aluminum7075
Size: Depend Size Of Screw: M16
Usage: Ultrasonic Plastic Welding
High Light:

15kHz Ultrasonic Tooling

,

15kHz Ultrasonic Welding Horn

,

Ultrasonic Welding Mold for Auto

15KHz Ultrasonic Tooling or Ultrasonic Horn For Automobile taillight Welding



The design of the welding horn is the most critical and important factor affecting ultrasonic welding. The engineer should carefully consider and evaluate the parts when they are in the design stage. There are many kinds of welding horn designs, all have their own characteristics and advantages. The choice of design depends on the type of plastic, part geometry, welding requirements, injection capacity, and appearance requirements.



Ultrasonic horns are designed with an FEA (Finite Element Analysis) simulation program that allows our engineers to observe the vibratory action of the horn prior to fabrication. We build segmented and adjustable fixtures to ensure a secure fit with the molded parts. For added strength and durability, carbide facing or chrome plating is applied, and before getting out of storage, we will test the even amplitude of the horns one by one.



Technical parameters:



Product Name 15KHz Aluminum Ultrasonic Tooling
Frequency 15KHz
size depend
Size of Screw M16
Weight 5kg
Material Aluminum
Color Metal Color
Usage Ultrasonic Horn Sonotrode





Process of The Tooling:



1. Trimming: straight edge cutting and melting edge treatment, without rough edges, ensure the smoothness;

2. Sealing: ensure good welding strength;

3. Hole make: cut out the hole and conduct side melting treatment;

4. Slitting: cutting the material once or multiple times, melting on the side, without burrs;

5. Forming: simultaneous cutting, sealing and embossing can be produced at one time.







FAQ:



1.What's your MOQ of the ultrasonic welding horns?
Usually, we don't limit a MOQ for testing, just decide the QTY by yourself.
2. How about your delivery time of the ultrasonic sonotrode?
From 3 to 15 days depending on the material to be used and the processing technologies.
3. How can I get your price and catalog?
Please E-mail us or call us to give your contact information(your name, email address, company name, and website)
4. Can we be your agent for ultrasonic welding toolings in our country or city?
Of course. We are looking for agents and distributors around the world who have the willingness to cooperate with us for a long business term.
5. How about payment?
100%T/T in advance for small orders;50%T/T in advance as a deposit;50%T/T paid before shipment. Paypal is also acceptable.
6. Do you provide samples? is it free or extra?
Yes, we could offer the sample and it's not free.
7. Could you make it according to our special requirements?
Of course, we can do that. Please send us your product details and application.
8. How about the quality?
We have exported to many other customers from all over the world, the feedback is good, quality is the first of our company.





Detailed Photos:

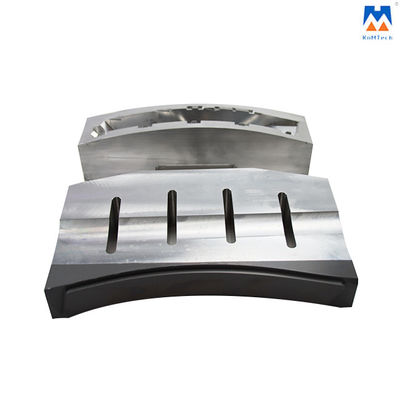

 15KHz Ultrasonic Tooling or Ultrasonic Horn For Automobile Taillight Plastic Welding 0

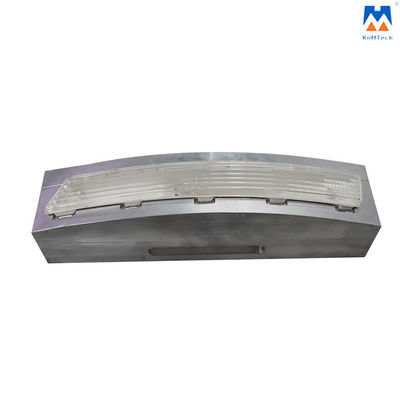

15KHz Ultrasonic Tooling or Ultrasonic Horn For Automobile Taillight Plastic Welding 1
